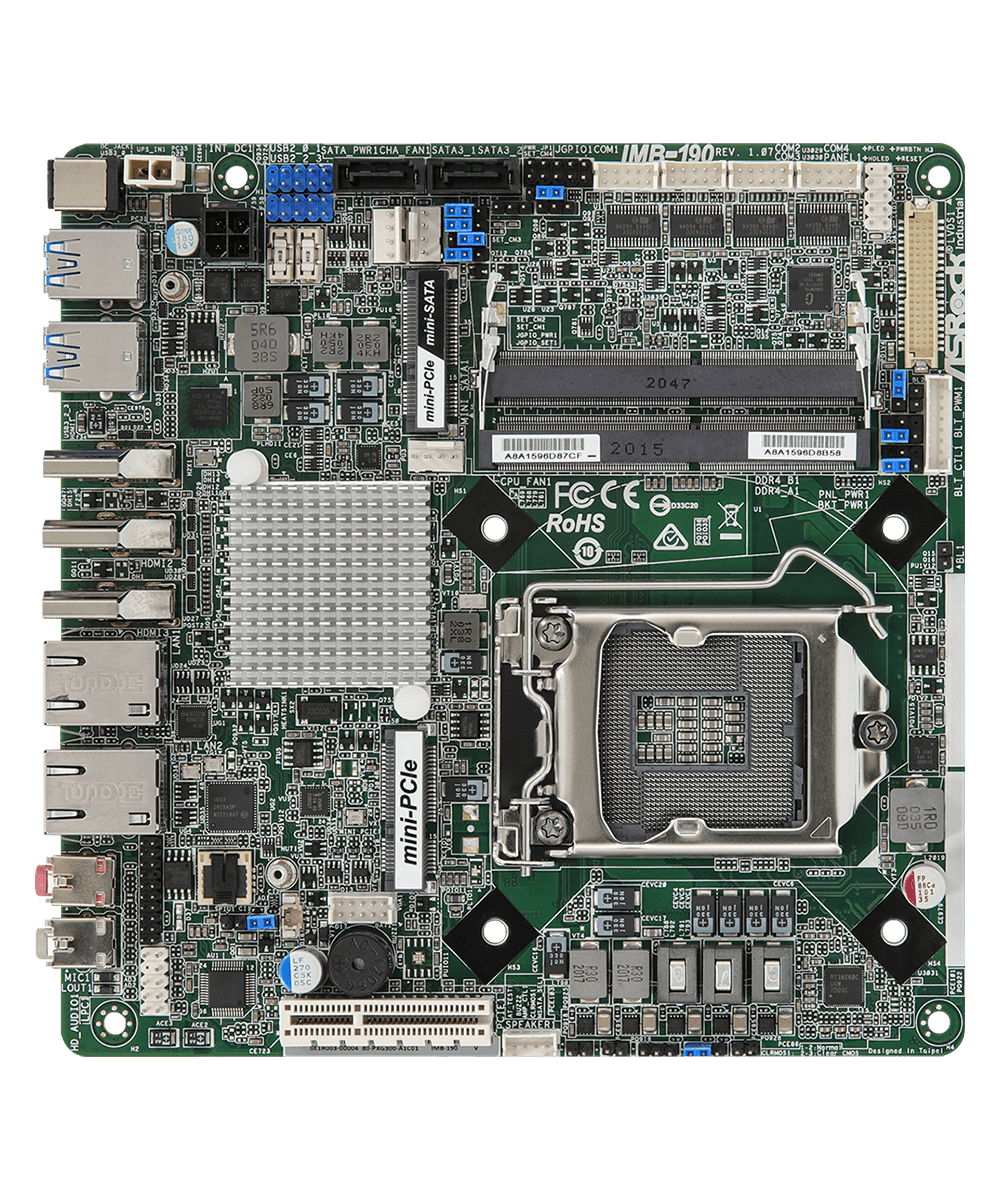

IMB-190 Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
Chipset	Intel® Q170

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI	HDMI1: Supports max resolution 4096 x 2160@60Hz HDMI2 & 3: Supports max resolution 4096 x 2160@30Hz
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports Dual channel 24-bit co-lay with eDP, max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x4
mini-PCIe	1 x Half size with PCIe x1 and USB 2.0
mini-PCIe/mSATA	1 x Full size with PCIe x1, SATA3 and USB 2.0

Audio

Interface	Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000Mbps

Rear I/O

HDMI	3
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	2 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1
VGA	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
