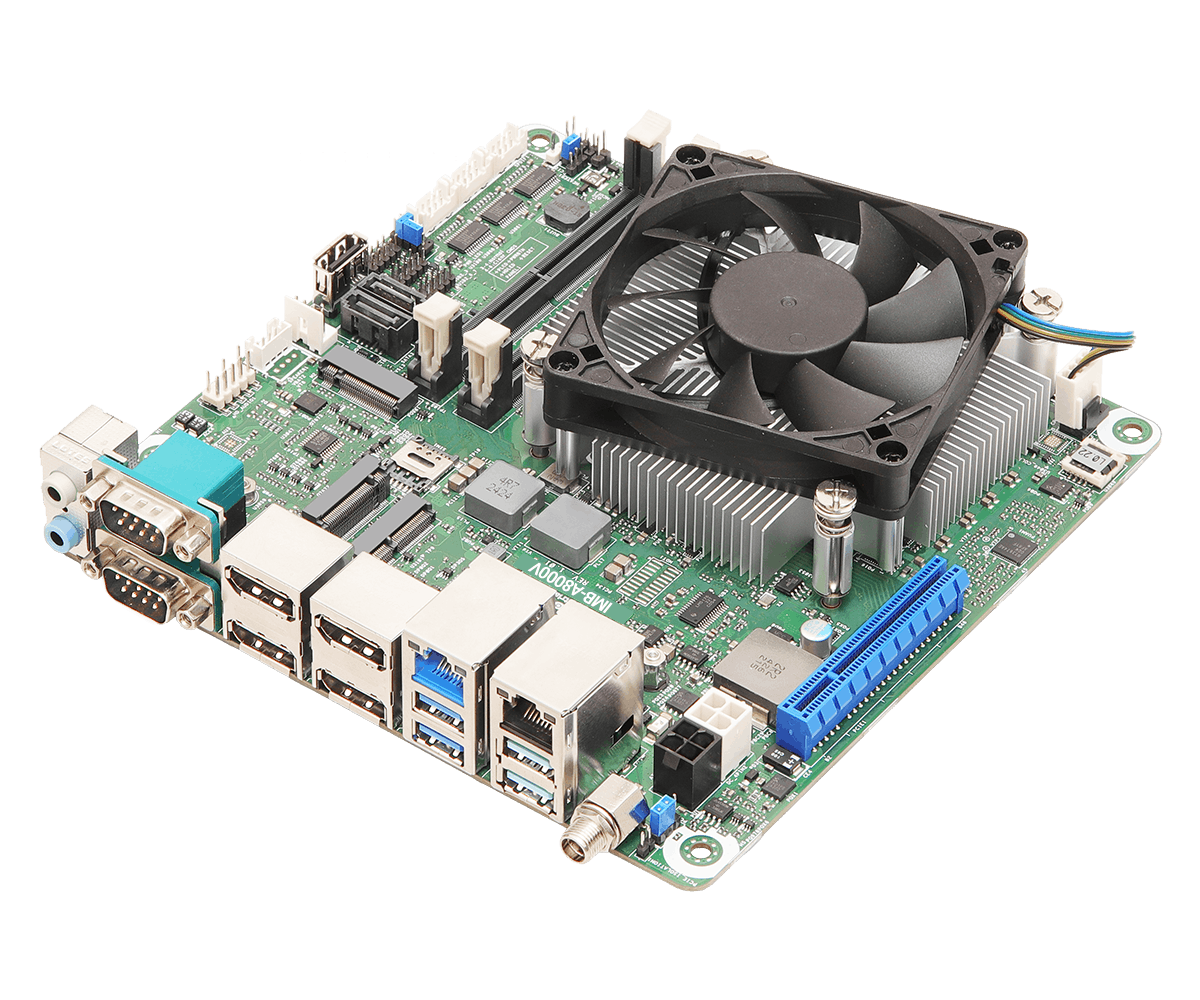

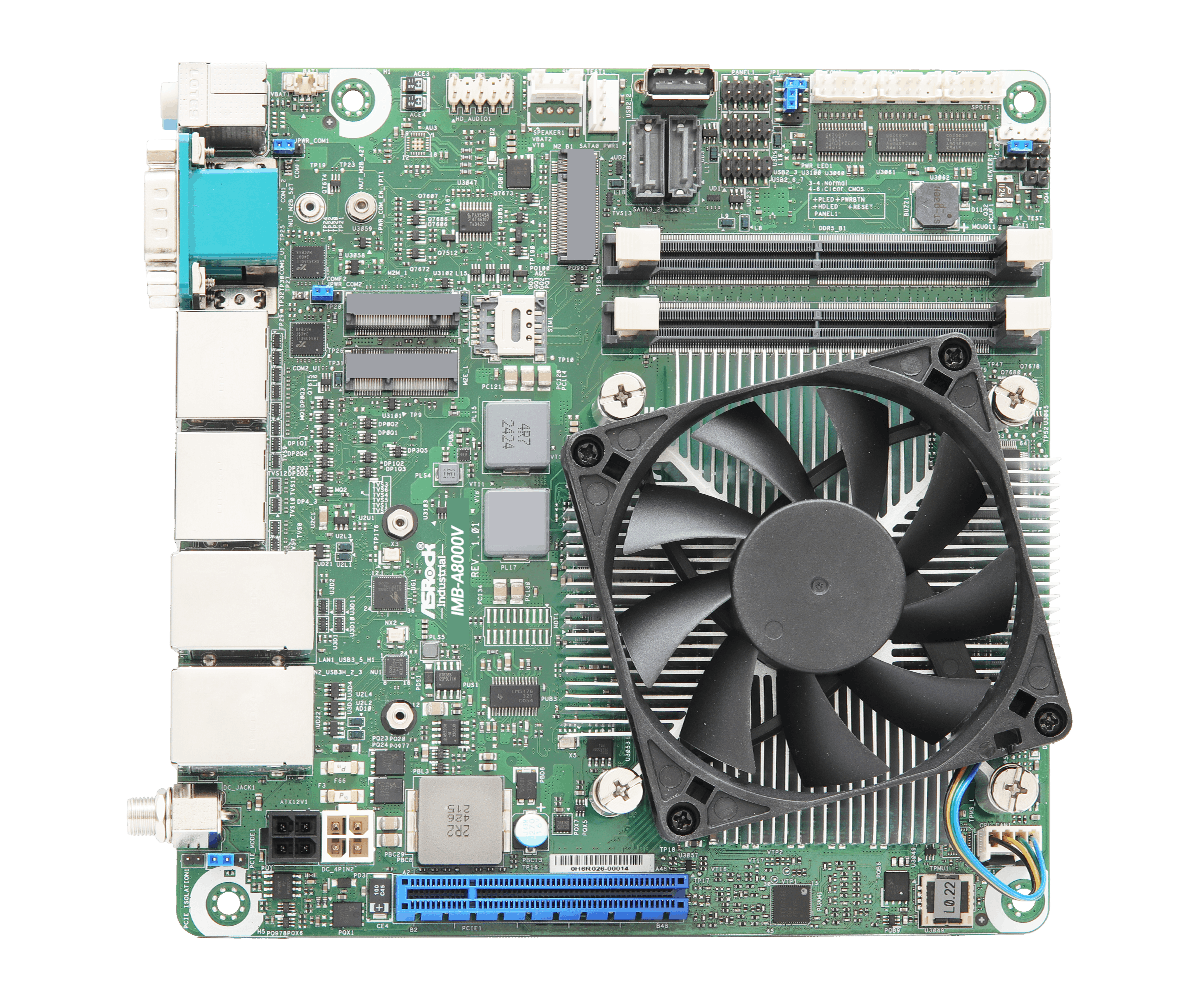

IMB-A8000V Mini-ITX Motherboard

Processor System

CPU	AMD Ryzen™ Embedded 8000 SoC processors IMB-A8000V (PRO 8640U, 6/12, 3.5GHz, 15-30W)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Memory

Technology	Dual Channel ECC/non-ECC DDR5 5600 MHz
Capacity	96 GB (48 GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	AMD RDNA™ 3
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad Display

Expansion Slot

PCIe	1 x PCIe x8 (Gen4)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.0, USB 2.0 and SIM Socket for 4G/5G
SIM Socket	1 x Socket connected to M.2 Key B

Audio

Interface	Realtek ALC897, High Definition Audio. Line-in, Line-out

Ethernet

Controller/ Speed	LAN1: Realtek® RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek® RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

DisplayPort	4 x DP 1.4a
Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
USB	1 x USB 3.2 Gen2 3 x USB 3.2 Gen1
Audio	2 (Line-in, Line-out)
COM	COM1, COM2 (RS-232/422/485)

Internal Connector

USB	4 x USB 2.0 (2 x 2.00 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	COM3, COM4, COM5 (RS-232)
SATA PWR Output	1
GPU Card PWR Input	1
ccTalk	1

Security

TPM	AMD FW TPM

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x COM Cable (14G000000310AK) 2 x SATA Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x I/O Shield (13G02P065000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package	1 x I/O Shield (13G02P065000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
