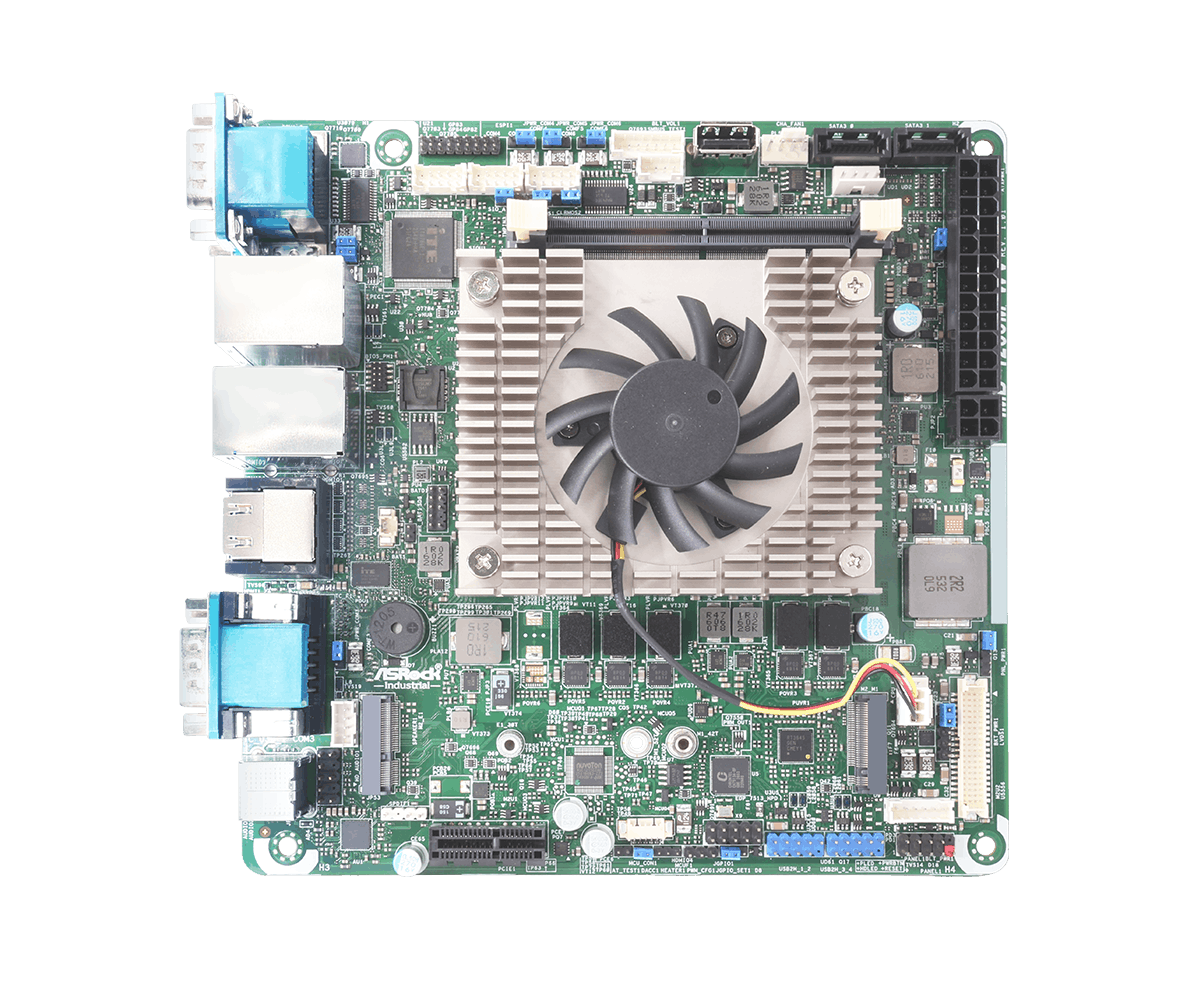

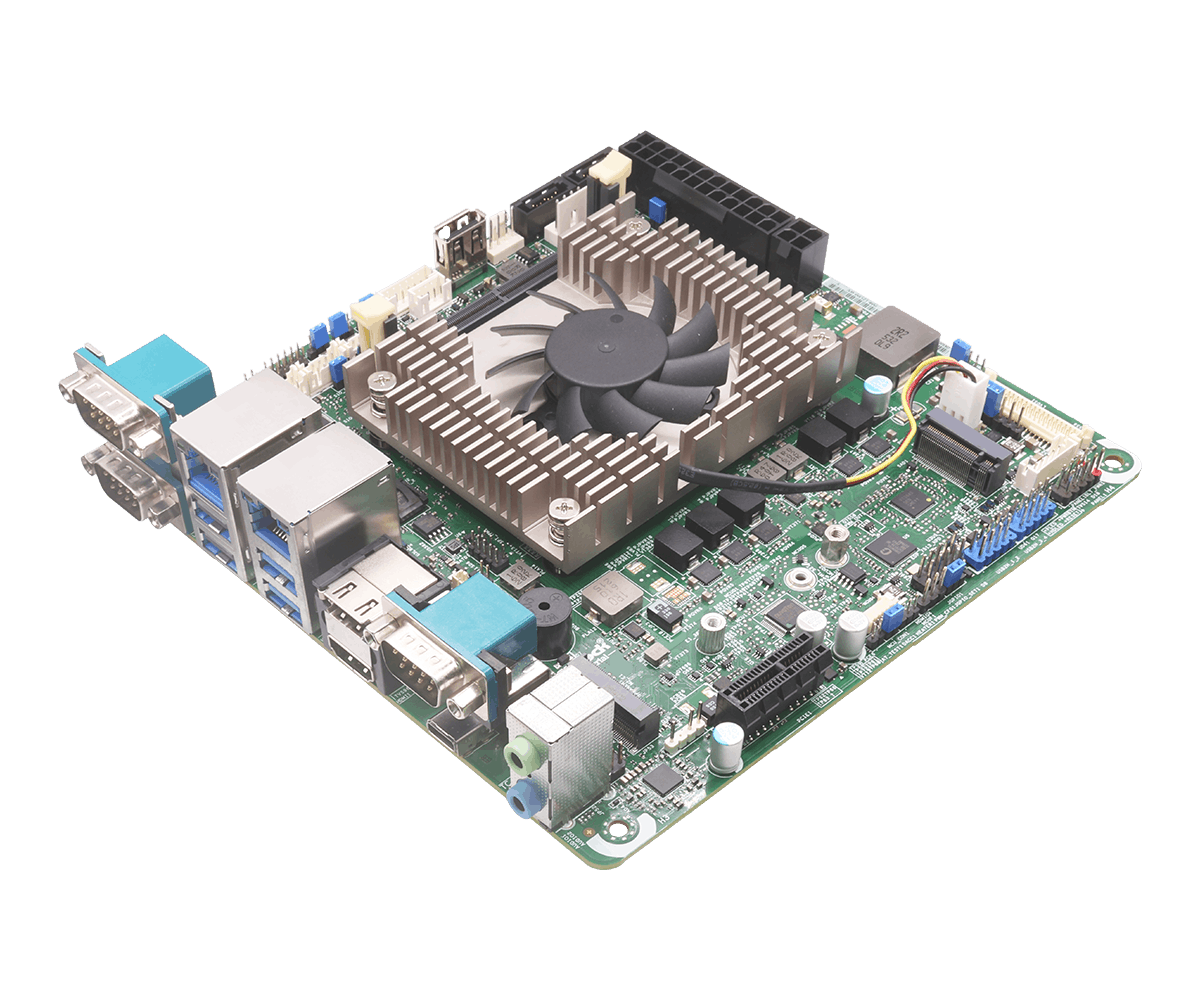

IMB-1253M-WV Mini-ITX Motherboard
- Intel® Core Processors Series 3 (Wildcat Lake-U) 320
- 1 x 262-pin SO-DIMM DDR5 6400 MHz, up to 64GB, supports In-Band ECC
- 1 x PCIe x1 (Gen4), 1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 2 x SATA3
- 1 x Intel 2.5 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 1 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP
- OOB Function (Optional)
- ATX PWR (24+4-pin) and 9V~28V DC-In co-design
Specification
Processor System
| CPU | Intel® Core Processors Series 3 (Wildcat Lake-U) IMB-1253M-WV (Core™ 5 320, 2P+4LPE, In-Band ECC) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.55-in, 17.0 cm x 17.0 cm x 3.93 cm) |
|---|
Memory
| Technology | Single Channel DDR5 6400 MHz |
|---|---|
| Capacity | 64GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display (Included 1 output from Type-C) |
Expansion Slot
| PCIe | 1 x PCIe x1 (Gen4) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC256 HD, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) |
| Audio | 2 Line-In / Line-Out (BOM option Mic-In/Line-Out) |
| COM | COM1 (RS-232/422/485) COM2, COM3 (RS-232) |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54mm pitch header) |
|---|---|
| COM | COM4, COM5, COM6 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM Header Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280/3052) with PCIe Gen4 x1 for SSD |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+4-pin) and 9V~28V DC-In co-design |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
