EOL

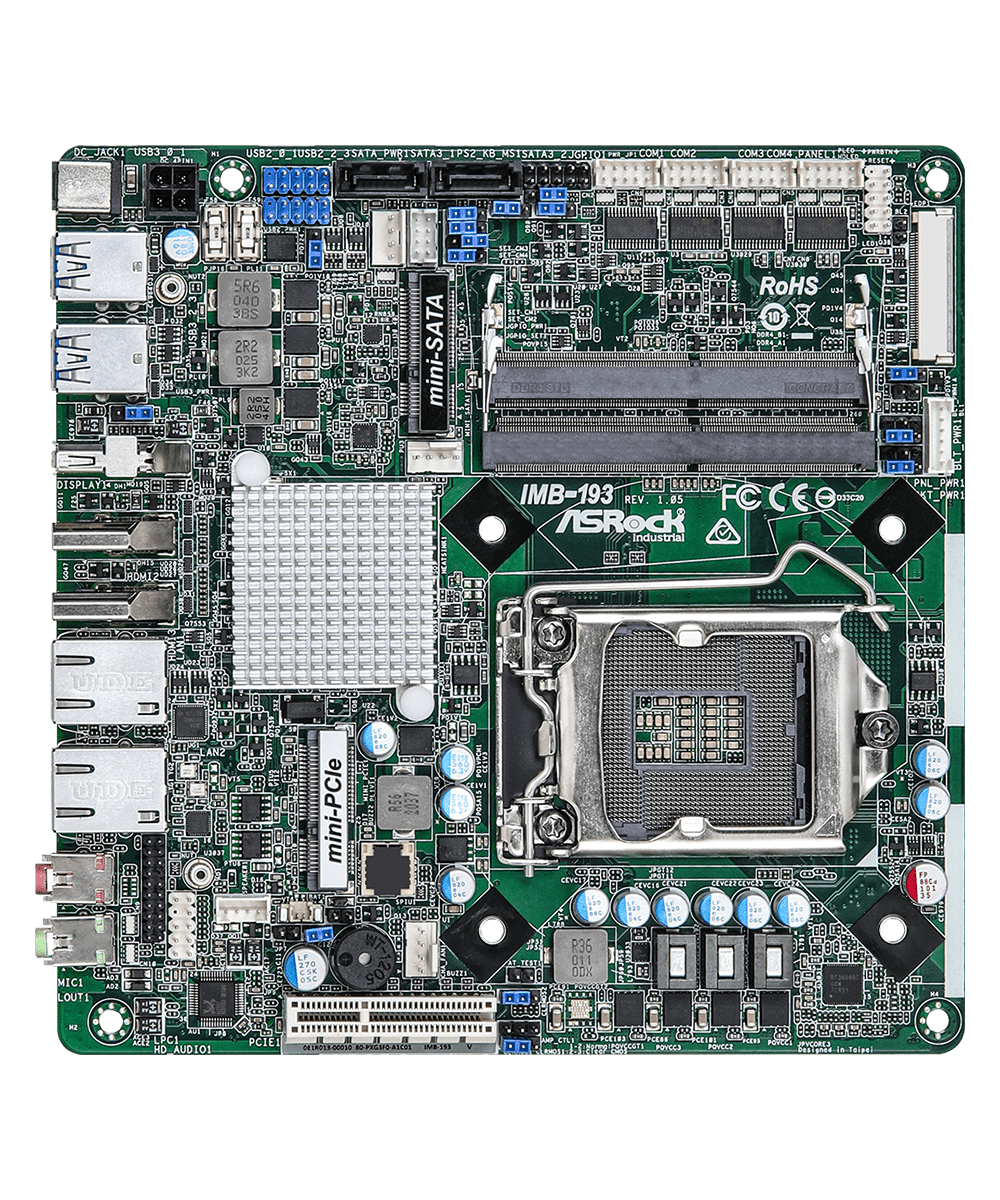

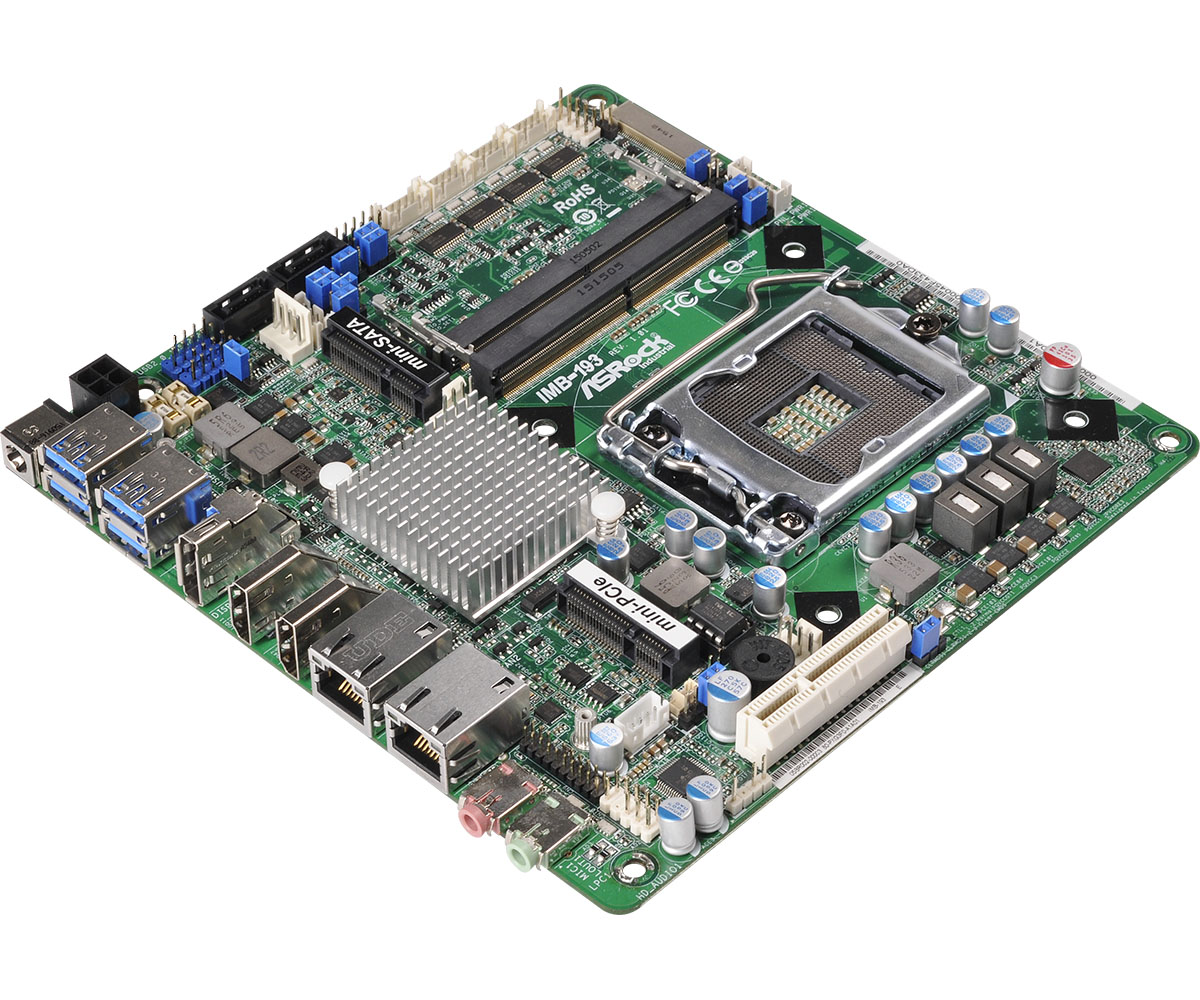

IMB-193 Mini-ITX Motherboard
- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
- Supports Dual Channel DDR4 2133 MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x HDMI, 1 x Displayport, 1 x eDP
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
- Gigabit LAN : 1 x Intel LAN, 1 x Realtek LAN
- 1 x TPM Header
- 19V DC-in
Specification
Processor System
| CPU | Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S) |
|---|---|
| Chipset | Intel® H110 |
| BIOS | UEFI |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz SDRAM |
|---|---|
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 |
|---|---|
| HDMI | Supports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| eDP | Supports Max. resolution 4096 x 2160@60Hz |
| DisplayPort | Supports DP 1.2, Max. resolution 4096 x 2160@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x4 slot |
|---|---|
| mini-PCIe | 1 x Half size with PCIe x1 and USB2.0 |
Audio
| Interface | Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|

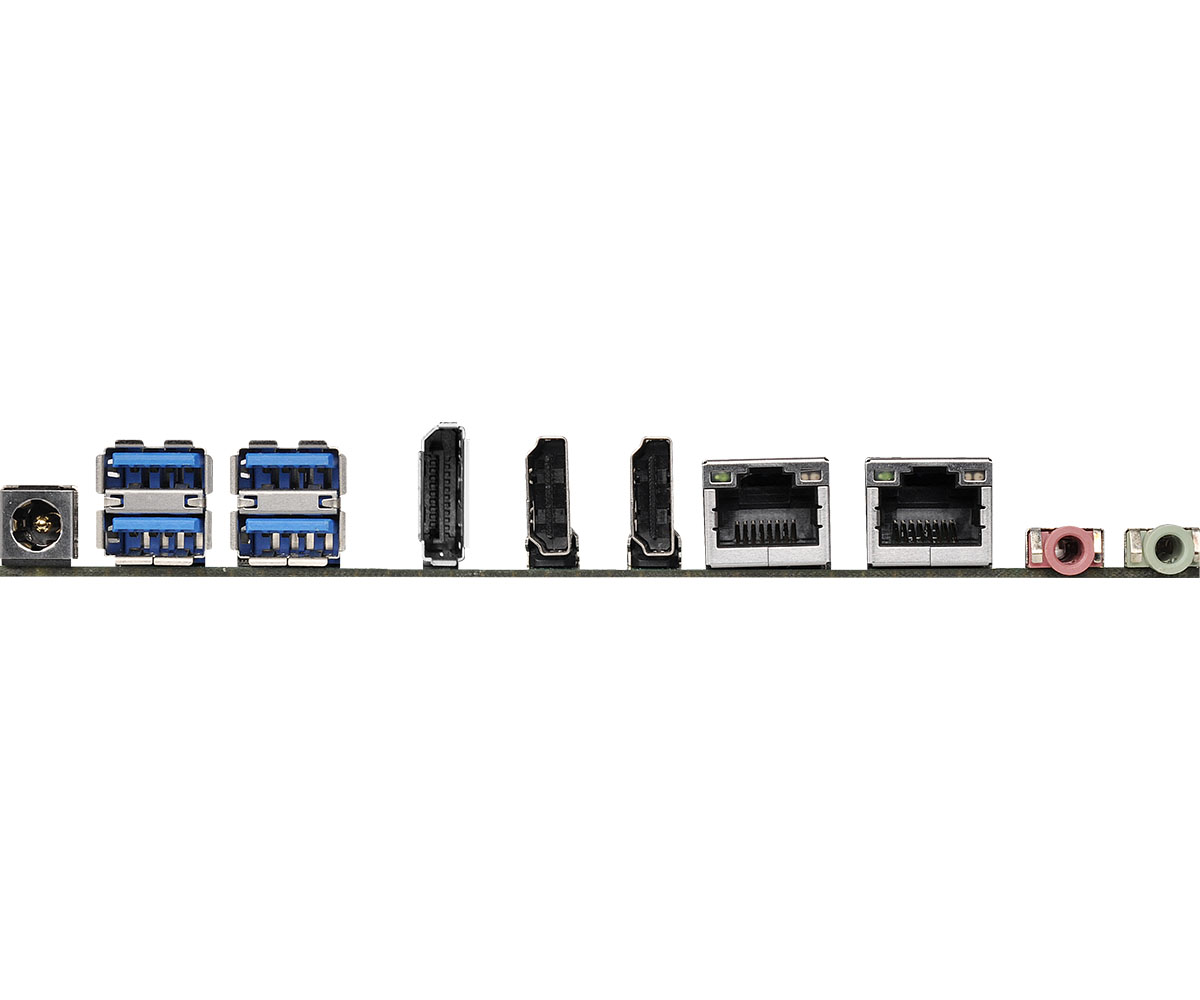

Rear I/O
| HDMI | 2 |
|---|---|
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| DisplayPort | 1 |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | 4 x RS-232 (COM1 supports RS-232/422/485) |
| TPM | TPM Header |
| eDP | 1 |
| GPIO | 4 x GPI, 4 x GPO |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA3 (6.0Gb/s) |
|---|---|
| mSATA | 1 x Full size with SATA3 (shared) and USB 2.0 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 19V DC-in (DC Jack / 4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020327000AK) 1 x I/O Shield THIN (13G020327010AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020327000AK) 1 x I/O Shield THIN (13G020327010AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
