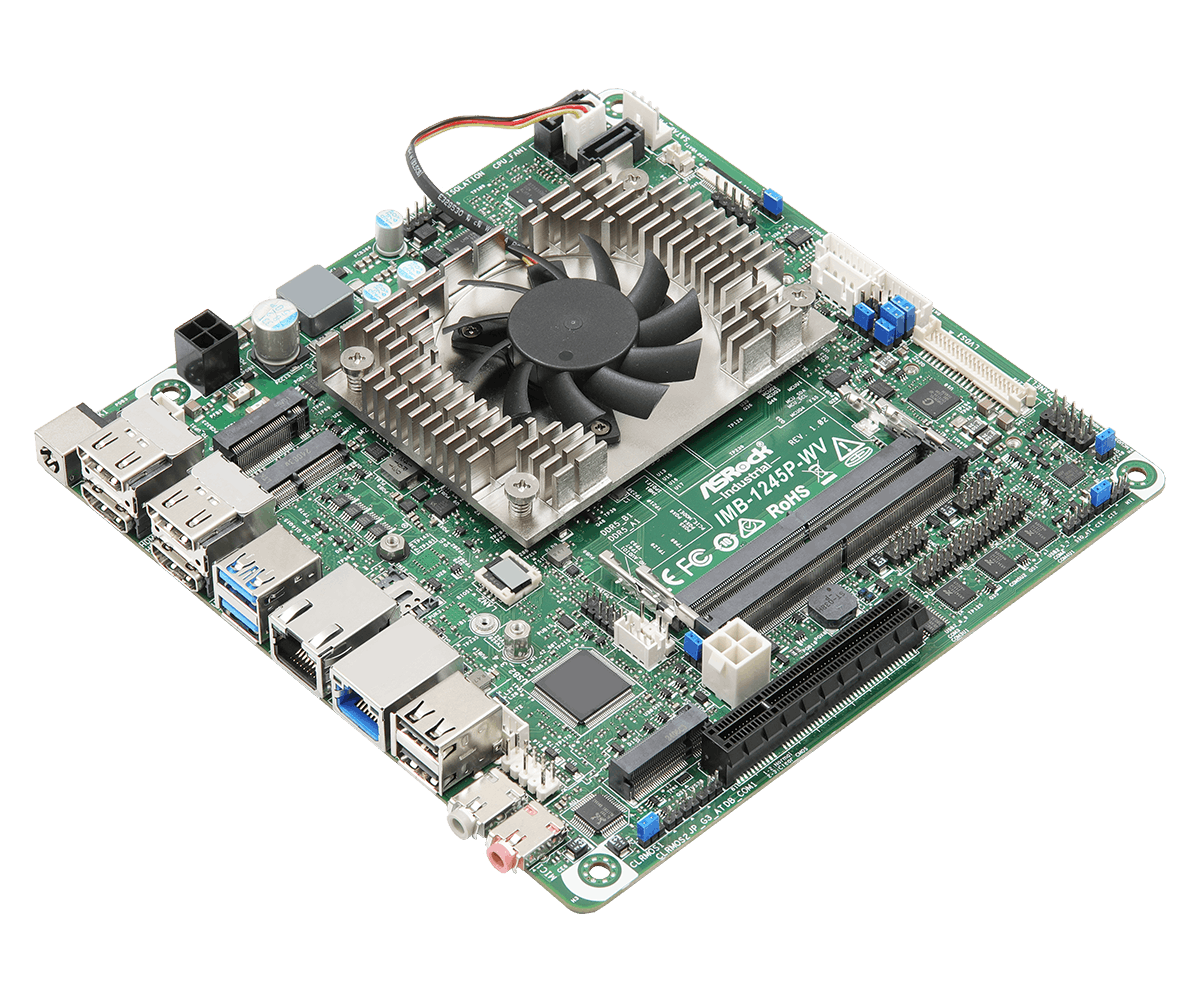

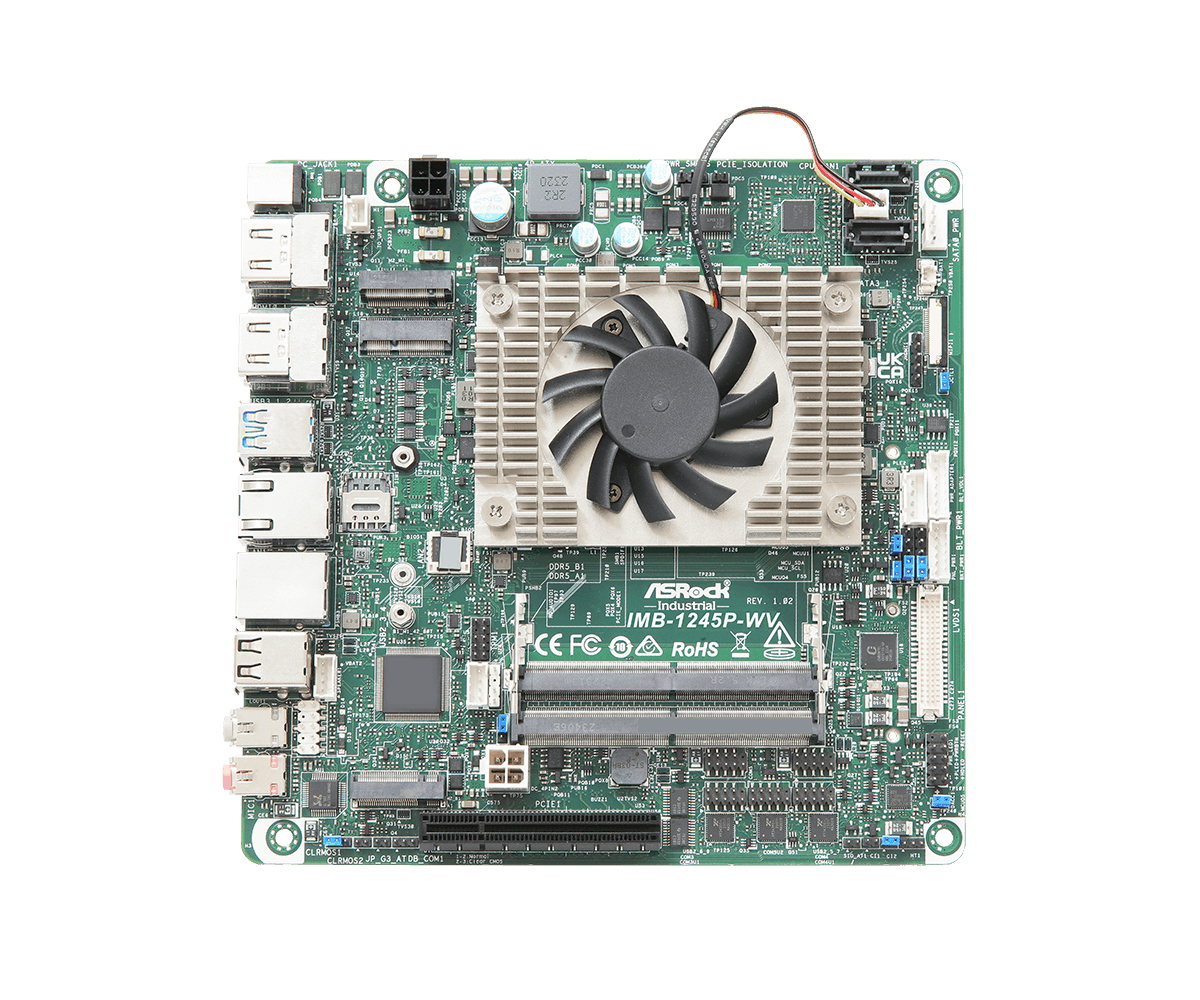

IMB-1245P-WV Mini-ITX Motherboard

Intel® Core™ Ultra processors (Meteor Lake-H) 155H
2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
1 x PCIe x8 (Gen5), 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 2 x SATA3
1 x Intel 1 Gigabit LAN, 1 Realtek 2.5 Gigabit LAN
Supports Quad display, 4 x HDMI 2.1 TMDS, 1 x LVDS or eDP
Supports Intel® vPro, VMD RAID 0/1
Supports Intel® MIPI CSI2
12~28V DC-In

Datasheet

Specification

Processor System

CPU	Intel® Core™ Ultra processors (Meteor Lake-H) IMB-1245P-WV (Ultra7 155H, 6P+8E)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 0.97-in, 17.0 cm x 17.0 cm x 2.48 cm)

Memory

Technology	Dual Channel DDR5 5600 MHz
Capacity	96GB (48GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Arc™ Graphics
HDMI	Max resolution up to 7680x4320@60Hz (HDMI0/1) Max resolution up to 4096x2160@60Hz (HDMI2/3)
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display

Expansion Slot

PCIe	1 x PCIe x8 (Gen5)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	4 x HDMI 2.1 TMDS
Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
USB	2 x USB 2.0 2 x USB 3.2 Gen2
Audio	2 (Mic-In/Line-Out)
DC Jack	1 DC-in

Internal Connector

USB	4 x USB 2.0 (2 x 2.00mm pitch header)
COM	COM3, COM4, COM5 (RS-232/422/485)
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1
MIPI Camera Header	1 (MIPI CSI2)

Security

TPM	TPM Header Intel® PTT

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2280/22110) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B+ M.2 Key M, 2 x M.2 Key M SATA interface: 2 x SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000340AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P053000AK) 1 x I/O Shield THIN (13G02P053010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package	1 x I/O Shield (13G02P053000AK) 1 x I/O Shield THIN (13G02P053010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description	Information	OS	Date	Download
Description	Intel HID Event Filter ver: 2.2.2.6 PV	Information	Size: 1172KiB Version: 2.2.2.6 PV SHA1: FEBD1B2BC042F43A5EA01905B5D004F575D77C08 Filename: Intel HID Event Filter ver(v2.2.2.6 PV).zip Release Note	OS	Win 10 x 64	Date	2024-05-15	Download	Global China
Description	Intel Lan driver ver:12.19.2.56w	Information	Size: 1398KiB Version: 12.19.2.56w SHA256: a34dbe88735a683cc43353d9405357ab79c70c159e15ed116bcf23bf08572942 Filename: Intel_Lan(v12.19.2.56w).zip Release Note	OS	Win 10 x 64	Date	2024-05-15	Download	Global China
Description	RST Driver ver:20.0.0.1035.4	Information	Size: 9273KiB Version: 20.0.0.1035.4 SHA256: 99d94b8583ec52074c55ee87ae8fae97b593e04759b616e5895d153765eace91 Filename: RST(v20.0.0.1035.4).zip Release Note	OS	Win 11 x 64	Date	2024-05-15	Download	Global China
Description	Intel HID Event Filter ver: 2.2.2.5 PV	Information	Size: 47Mib Version: 2.2.2.5 PV SHA256: c0b1216093910a8b1feb2dadacf0c7e059730330fba0f6f8a196567f66e0d42d Filename: Intel HID Event Filter ver(v2.2.2.5 PV).zip Release Note	OS	Win 11 x 64	Date	2024-05-15	Download	Global China
Description	Realtek high definition audio driver ver:9581.1 RTK1	Information	Size: 47Mib Version:9581.1 RTK1 SHA256: 3b572130ddd9e9ff6136819932fccd102bd0c3f0048e74d3aa2a863be3d19d65 Filename:Realtek_Audio(v9581.1 RTK1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China
Description	Intel Lan driver ver:20.0.1.46	Information	Size: 684Kib Version: 20.0.1.46 SHA256: 4e236336e724fcc2a3eaad75fd8e6110b8122c54ea2ef7d456d3a56654078903 Filename:Intel_Lan(v20.0.1.46).zip Release Note	OS	Win 11 x 64	Date	2024-05-15	Download	Global China
Description	GNA ver: 03.05.00.1574	Information	Size: 55Kib Version: 03.05.00.1574 SHA256: a7273bfe3bee1599bd5805fecdd5f84a1eca117b9e50ca37fc6718d12efe55fb Filename: GNA(v03.05.00.1574).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China
Description	Realtek Lan driver ver: 10.060.0615.2022	Information	Size: 10Mib Version: 10.060.0615.2022 SHA256: 16992b0be5d7cd9ba0bd81adde1d8e6ae04c3336238cb28d0856cc8a8236fa2e Filename:Realtek_LAN(v10.060.0615.2022).zip Release Notee	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China
Description	PMT ver: 3.1.2.2	Information	Size: 1180Kib Version: 3.1.2.2 SHA256: d850dad52522642936b7705206d49490178269848a44d526c86dad5db5c4cbf5 Filename: PMT(v3.1.2.2).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China
Description	Intel Serial IO driver ver: 30.100.2318.58	Information	Size: 2623Kib Version: 30.100.2318.58 SHA256: f56c657f8c565f46fbdfb85aa2d5a1abb9185de625ef810619cd82bceb9ee59a Filename: Intel Serial IO driver ver(v30.100.2318.58).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China
Description	Chipset Driver ver: 10.1.19627.8423-Public-MUP	Information	Size: 5172Kib Version:10.1.19627.8423-Public-MUP SHA256: dc7f9581ac8cfdf8b7c6979b2d3fc8ff303c697972d6bf13f206ee0cf1b75fe0 Filename:Chipset(v10.1.19627.8423-Public-MUP).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-05-15	Download	Global China

Version	Update BIOS Under / How to Update	Description	Information	Date	Download
Version	1.30	Update BIOS Under / How to Update	BIOS	Description	Enhance memory compatibility	Information	Size: 10 MiB SHA1: CD70561C79029D89A48A4C1E352B261E48F5276B	Date	2025-05-08	Download	Global China
Version	1.30	Update BIOS Under / How to Update	Windows	Description	Enhance memory compatibility	Information	Size: 11 MiB SHA1: 4141FEFA03F5EA405418011F7C5AC57DC225CAEF	Date	2025-05-08	Download	Global China
Version	1.20	Update BIOS Under / How to Update	BIOS	Description	Enhance system compatibility	Information	Size: 10 MiB SHA1: F5684B7A00D4FEBC51B36902D8AEED6F2572AC04	Date	2024-12-31	Download	Global China
Version	1.20	Update BIOS Under / How to Update	Windows	Description	Enhance system compatibility	Information	Size: 11 MiB SHA1: E1C2CE8698D0EE163476F945260E3D425B2A34EE	Date	2024-12-31	Download	Global China
Version	1.10	Update BIOS Under / How to Update	BIOS	Description	Optimize GPIO settings	Information	Size: 10 MiB SHA1: EBBF041522C83B6C90E5D785CC5D31A188DDA0B6	Date	2024-05-24	Download	Global China
Version	1.10	Update BIOS Under / How to Update	Windows	Description	Optimize GPIO settings	Information	Size: 11 MiB SHA1: 75E84A1C5E73261744F2D3FCC9508335A0C2530C	Date	2024-05-24	Download	Global China
Version	1.00	Update BIOS Under / How to Update	BIOS	Description	First release	Information	Size: 10 MiB SHA1: F6E7778D3860452C0ED2D48ECD9CD62B903DACB6	Date	2024-05-13	Download	Global China
Version	1.00	Update BIOS Under / How to Update	Windows	Description	First release	Information	Size: 11 MiB SHA1: 7D86BF9E9F4B5BD9F600B5B985A9DFBB575AD9FE	Date	2024-05-13	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	RAID Installation Guide	Language	English	Date	2024-06-05	Download	Global China
Description	User Manual	Language	English	Date	2024-06-05	Download	Global China
Description	Jumpers and Headers Setting Guide	Language	English	Date	2024-02-29	Download	Global China
