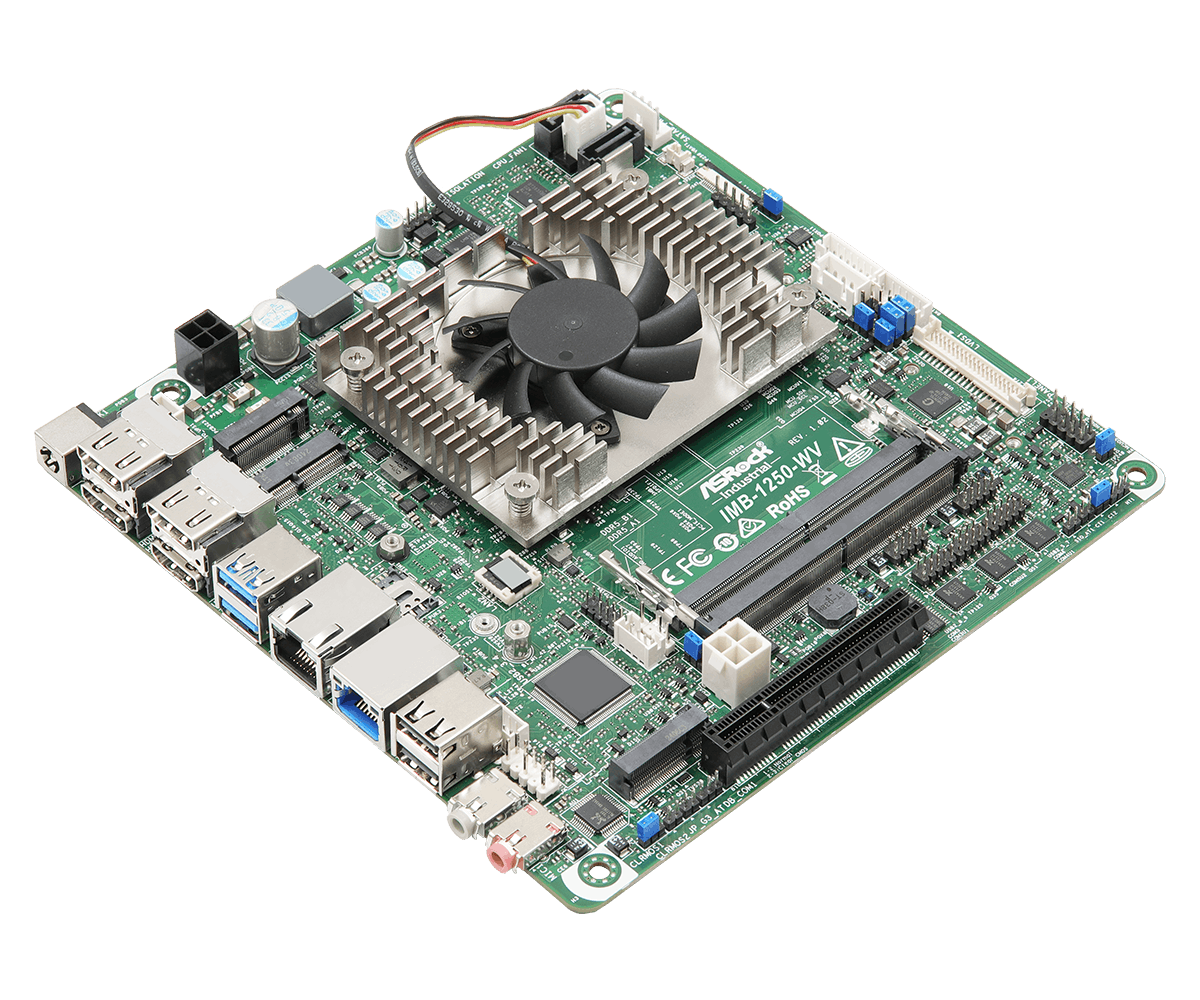

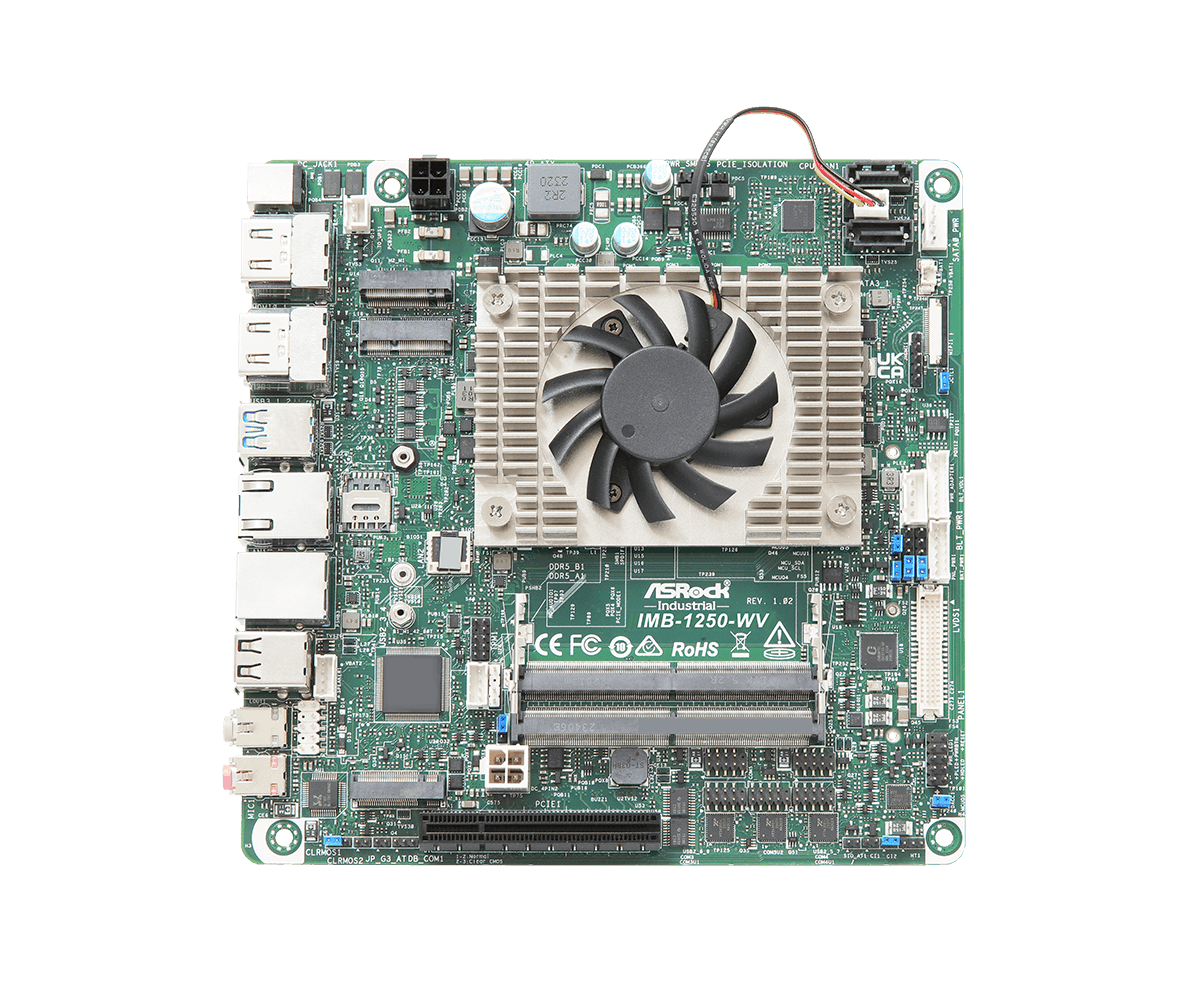

IMB-1250-WV Mini-ITX Motherboard

Intel® Core™ Ultra processors (Arrow Lake-H)
2 x 262-pin CSO-DIMM DDR5 6400 MHz, SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
1 x PCIe x8 (Gen5), 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 2 x SATA3
1 x Intel 1 Gigabit LAN, 1 Realtek 2.5 Gigabit LAN
Supports Quad display, 4 x HDMI 2.1 TMDS, 1 x LVDS or eDP
Supports Intel® vPro Essentials, VMD RAID 0/1
Supports Intel® MIPI CSI2
12~28V DC-In

Datasheet

Specification

Processor System

CPU	Intel® Core™ Ultra processors (Arrow Lake-H) IMB-1250P-WV (Ultra7 255H, 6P+8E) IMB-1250M-WV (Ultra5 225H, 4P+8E)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 0.97-in, 17.0 cm x 17.0 cm x 2.48 cm)

Memory

Technology	Dual Channel DDR5 5600/6400 MHz *Only CSO-DIMM can support up to 6400 MHz
Capacity	96GB (48GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Arc™ 140T graphics (255H) Intel® Arc™ 130T graphics (225H)
HDMI	Max resolution up to 7680x4320@60Hz (HDMI0/1) Max resolution up to 4096x2160@60Hz (HDMI2/3)
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display

Expansion Slot

PCIe	1 x PCIe x8 (Gen5)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	4 x HDMI 2.1 TMDS
Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
USB	2 x USB 2.0 2 x USB 3.2 Gen2
Audio	2 (Mic-In/Line-Out)
DC Jack	1 DC-in

Internal Connector

USB	4 x USB 2.0 (2 x 2.00mm pitch header)
COM	COM3, COM4, COM5 (RS-232/422/485)
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1
MIPI Camera Header	1 (MIPI CSI2)

Security

TPM	TPM Header Intel® PTT

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2280/22110) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B+ M.2 Key M, 2 x M.2 Key M SATA interface: 2 x SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)

Accessories

Gift Package	1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000340AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P053000AK) 1 x I/O Shield THIN (13G02P053010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package	1 x I/O Shield (13G02P053000AK) 1 x I/O Shield THIN (13G02P053010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description	Information	OS	Date	Download
Description	RST Driver ver:20.2.1.1016.4	Information	Size: 9308 KiB Version:20.2.1.1016.4 SHA256: 3aef6dfa4dbba5dfc3c3d21369d836acdb636d86e444aeaee921e65acf243e8c Filename:RST Driver(v20.2.1.1016.4).zip	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-16	Download	Global China
Description	NPU driver ver:32.0.100.3159	Information	Size: 62 MiB Version:32.0.100.3159 SHA256: ebbbb67055f6e7bd9a473fb857dd14f4eb298f43c749331913f69900b764eb9e Filename:npudrive(v32.0.100.3159).zip	OS	Win 11 x 64	Date	2025-09-16	Download	Global China
Description	Intel_CSME_Cor(2519.8.3.0)	Information	Size: 1219 MiB Version:2519.8.3.0 SHA1: B5B50C1A8389B047596807FF1CF87665E012B9F4 Filename:Intel_CSME_Cor(2519.8.3.0)	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-16	Download	Global China
Description	VGA driver ver: 32.0.101.6733	Information	Size: 1001 MiB Version:32.0.101.6733 SHA256:74236963a6abd46a75a296889546c242f2dec8b19998f79fe675bcd97ff23864 Filename:Intel_VGA(v32.0.101.6733).zip	OS	Win 10 x 64	Date	2025-09-16	Download	Global China
Description	Intel I219 Lan driver ver:12.19.2.57	Information	Size: 1776 KiB Version:12.19.2.57 SHA256:18d6ce57f28727823956e17acf731b77490b9cbca74f0ea7b47b28de88451583 Filename:Intel I219LM LAN Driver(v12.19.2.57).zip	OS	Win 10 x 64	Date	2025-09-16	Download	Global China
Description	Intel I219 Lan driver ver:20.0.2.20	Information	Size: 1503 KiB Version:20.0.2.20 SHA256:db40e52271aaf4b0bc760182603f72e41224b2f797af57efe7544b0d1332075c Filename:Intel I219LM LAN Driver(v20.0.2.20).zip	OS	Win 11 x 64	Date	2025-09-16	Download	Global China
Description	Nuvoton HighSpeed Setup_v1.8.24.0805	Information	Size: 7158Kib Version:1.8.24.0805 SHA256: 23be65d9f67db428cbd5c47e49d5bdd2ece9fddba17ada4cf22bcc82cbd0bf5c Filename:Nuvoton_HighSpeed_Setup_v1.8.24.0805.zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	Realtek Lan driver ver: 10.060.0615.2022	Information	Size: 10Mib Version: 10.060.0615.2022 SHA256: 16992b0be5d7cd9ba0bd81adde1d8e6ae04c3336238cb28d0856cc8a8236fa2e Filename:Realtek_LAN(v10.060.0615.2022).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	Intel HID Event Filter ver:2.2.2.10	Information	Size: 4960 Kib Version:2.2.2.10 SHA256: aaa5b069b594484d155cee865ccddbfbccb235eb96c35ec65fb7c625d9c5ef20 Filename:Intel HID Event Filter ver2.2.2.10.zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	PMT ver: 3.1.2.6	Information	Size: 2394Kib Version: 3.1.2.6 SHA256: 96158fc47e7523aac87b995e322c5efb7820fd509262b7442adac3e436764bef Filename: PMT(v3.1.2.6).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	Intel Serial IO driver ver:30.100.2418.12	Information	Size: 3360Kib Version: 30.100.2418.12 SHA256: cb6697aa325cd9fc7f16285e0b7e9c99de966cde597818f708685495a7b33932 Filename: SerialIO(v30.100.2418.12).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	SST driver ver:20.40.10915.2_HF	Information	**Install after VGA driver Size: 210 Mib Version: 20.40.10915.2_HF SHA256: b6b38998a4a5623bb97c810c0161cfe7fc9db4f4cbd3f334177b1c2334c8f992 Filename: Intel_SST(v20.40.10915.2_HF).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China
Description	Chipset_Driver(10.1.20003.8622)	Information	Size: 11Mib Version: 10.1.20003.8622 SHA256: 9aa6d44adc96702d7590212227c0b64c6792798b923e10cb9850b940a3c88a73 Filename: Chipset_Driver(10.1.20003.8622).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-09-10	Download	Global China

Version	Update BIOS Under / How to Update	Description	Information	Date	Download
Version	1.10	Update BIOS Under / How to Update	BIOS	Description	Update BIOS model name rule	Information	Size: 11 MiB SHA1: 25cc389fa35fbec24386c68698fa2e5d7abec218	Date	2026-05-07	Download	Global China
Version	1.10	Update BIOS Under / How to Update	Windows	Description	Update BIOS model name rule	Information	Size: 12 MiB SHA1: 852f155725bd43827f5e0180f567a1587623673f	Date	2026-05-07	Download	Global China
Version	1.00	Update BIOS Under / How to Update	BIOS	Description	First release	Information	Size: 11 MiB SHA1: cff5327dc58deaa81b18a457f8900ab04d47e7ce	Date	2026-03-05	Download	Global China
Version	1.00	Update BIOS Under / How to Update	Windows	Description	First release	Information	Size: 12 MiB SHA1: 3957dde94e094ae0c8102d453d32191735e05ab9	Date	2026-03-05	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	User Manual	Language	English	Date	2026-03-16	Download	Global China
Description	RAID Installation Guide	Language	English	Date	2026-03-16	Download	Global China
Description	Jumpers and Headers Setting Guide	Language	English	Date	2025-09-10	Download	Global China
