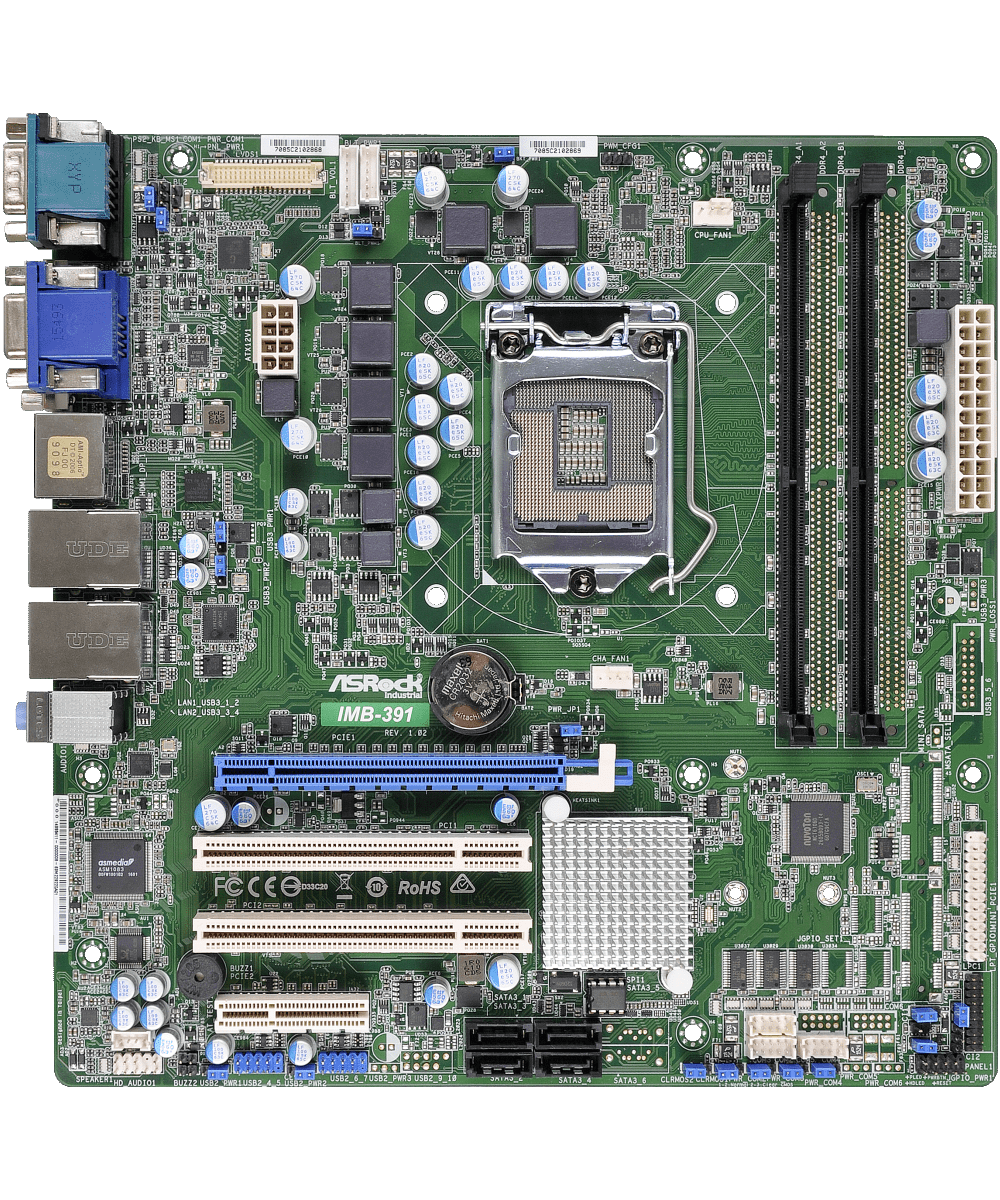

IMB-391 Micro ATX Motherboard
- Intel® 7th/6th Gen (Kabylake-S/Skylake-S) Core™ Processors with H110 chipset
- Supports Dual Channel DDR4 2133MHz, up to 32GB
- 1 x VGA, 1 x HDMI, 1 x Displayport, 1 x DVI
- 4 x USB 3.0, 4 x USB 2.0, 4 x SATA3
- 1 x PCIe x16, 2 x PCI, 1 x PCIe x4
- 2 x Intel LAN
- 1 x TPM Header
- ATX PWR Con (24+8-pin)
產品規格
Processor System
| CPU | Supports Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors |
|---|---|
| Chipset | Intel® H110 |
| Socket | LGA1151 |
Form Factor
| Dimensions | Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 2 x Long-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 |
|---|---|
| HDMI | Supports max resolution up to 4096 x 2160@60Hz |
| DisplayPort | Supports max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| DVI | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x16, 2 x PCI, 1 x PCIe x4 |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

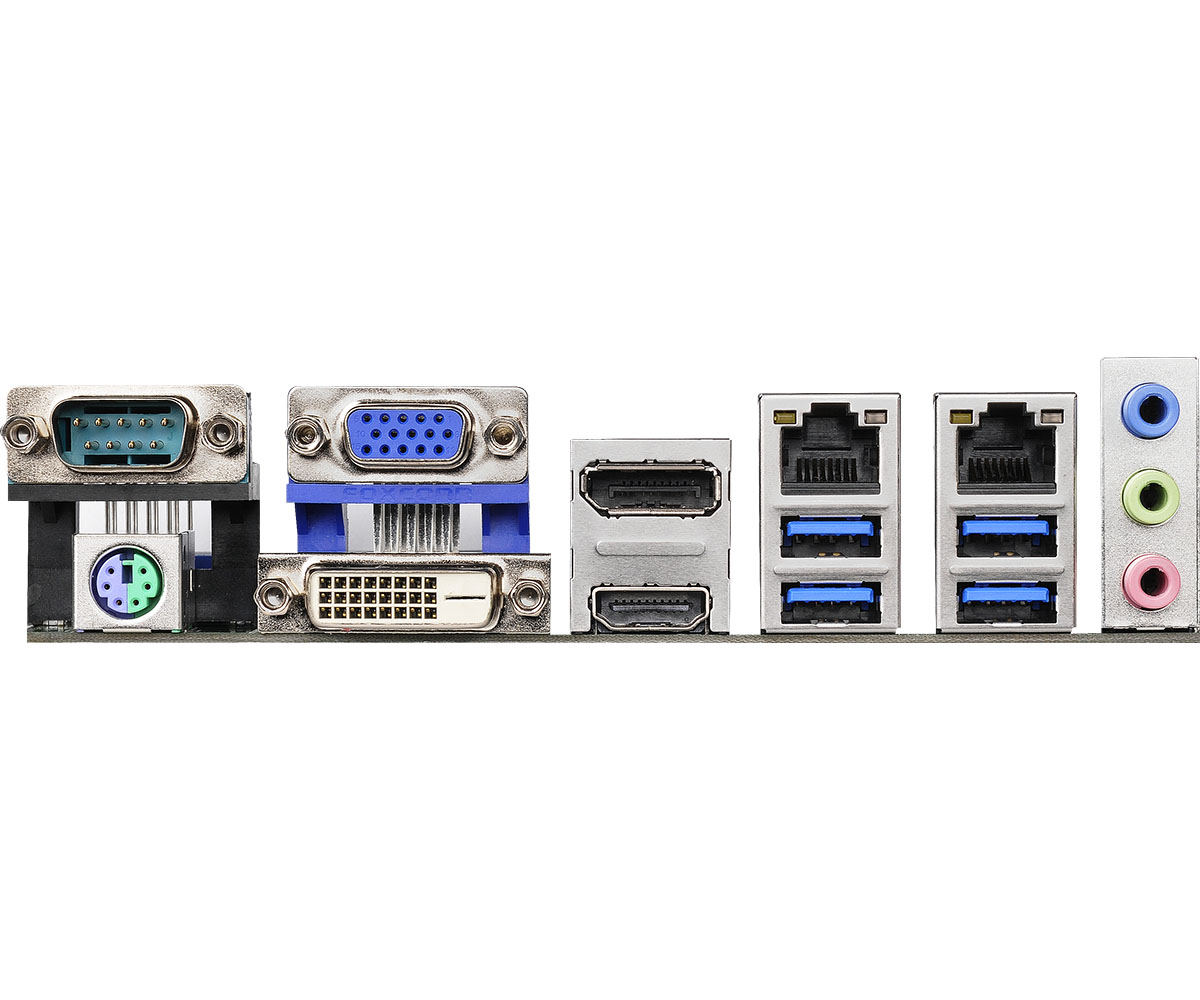

Rear I/O
| HDMI | 1 |
|---|---|
| DisplayPort | 1 |
| VGA | 1 |
| DVI | 1 |
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 3 (Mic-in, Line-in, Line-out) |
| COM | COM1 (RS-232/422/485) |
| PS2 | 1 x PS/2 combo |
Internal Connector
| USB | 4 x USB 2.0 |
|---|---|
| COM | 3 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO |
| TPM | 1 x Header |
| LVDS | 1 |
| Speaker Header | 1 |
Storage
| SATA | 4 x SATA3 (6.0Gb/s) |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x I/O Shield (13G020401000AK) 2 x SATA Data Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G020401000AK) |
規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
