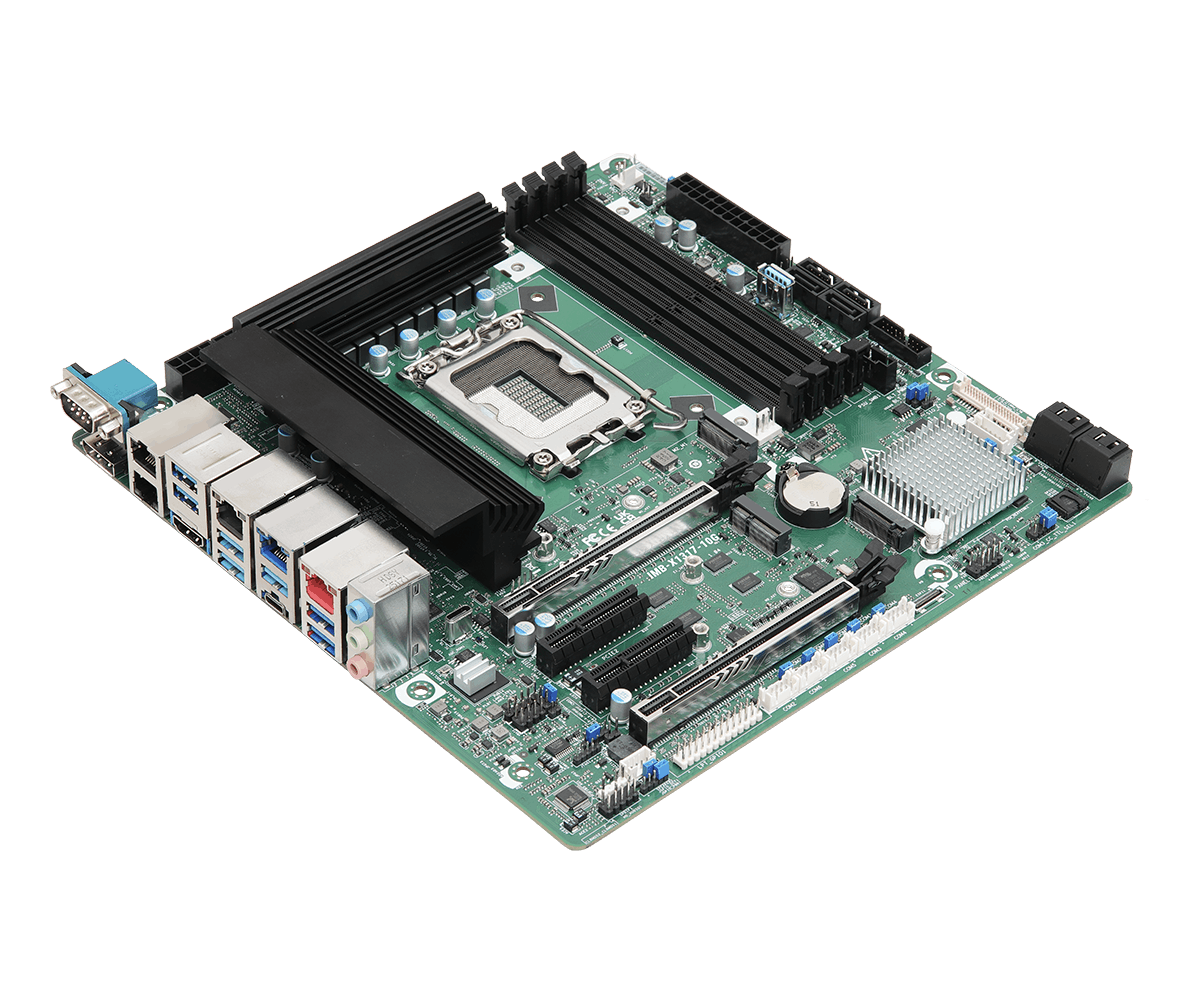

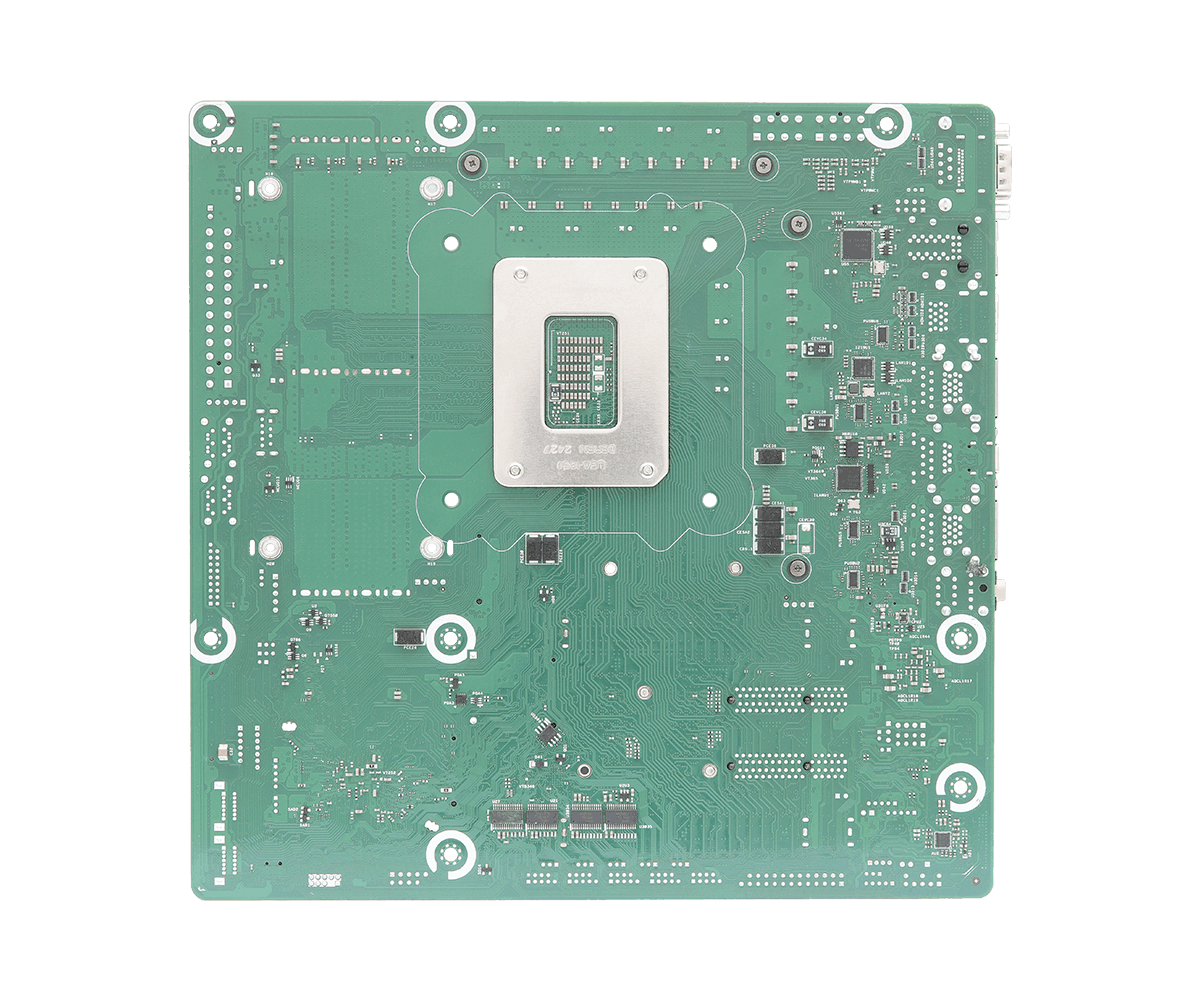

IMB-X1317-10G Micro ATX Motherboard

Intel® Core™ Ultra Series 2 Processors (Arrow Lake-S) with W880 chipset
4 x 288-pin ECC/non-ECC CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz , up to 256GB (64GB per DIMM)
1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4)
2 x USB4/Thunderbolt™4, 10 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 8 x SATA3
3 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
Supports Quad display, 1 x HDMI 2.1, 2 x DP 2.1 (2 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
TPM 2.0 onboard IC
Supports Intel® vPro, VMD RAID 0/1/5/10
ATX Power (24+8+8-pin)

产品型录

产品规格

Processor System

CPU	Intel® Core™ Ultra Series 2 Processors (Arrow Lake-S), up to 125W *Supports with a maximum power limit up to 252W
Chipset	Intel® W880
Socket	LGA1851
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in x 1.81-in, 24.4 cm x 24.4 cm x 4.61 cm)

Memory

Technology	Dual Channel ECC/non-ECC DDR5 6400/5600 MHz 1DPC 6400MHz (Ultra 9/7/5K), 5600MHz (Ultra 5 non-K) / 2DPC 1R 5600MHz / 2DPC 2R 4400MHz Only CU-DIMM can support up to 6400MHz
Capacity	256GB (64GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® Xᵉ LPG Graphics
HDMI	HDMI 2.1 Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/1.4a, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1200@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8) 2 x PCIe x4 (Gen4)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Ethernet

Controller/ Speed	LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps LAN3: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN4: Intel® I226V with 10/100/1000/2500 Mbps LAN5: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector	5 x RJ-45

Rear I/O

HDMI	1 x HDMI 2.1
DisplayPort	1 x DP 1.4a++
Ethernet	3 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN 1 x 10 Gigabit LAN
USB	7 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
Audio	3 (Line-In/Line-Out/Mic-In)
Serial Port	COM1 (RS-232/422/485)

Internal Connector

USB	1 x USB 2.0 (1 x 2.54 pitch header) 2 x USB 3.2 Gen2 (1 x USB 3.2 header) 1 x USB 3.2 Gen2 vertical Con 1 x USB4/Thunderbolt™4 vertical con. (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
COM	COM2 (RS-232/422/485) COM3 (RS-232/TTL 5V/ccTalk) (Switch by Jumper setting) COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
Speaker Header	1
Thunderbolt header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA	8 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIE or SATA) PCIE interface: 2 x M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)

Accessories

Gift Package	2 x SATA Cable (14G00010107DAK) 1 x I/O Shield (13G02P083000AK ) 3 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x I/O Shield (13G02P083000AK ) 3 x SCREW M3*2.5 (13G02P072010AK)
Option	2 x DIMM BRACKET (13G03P003000AI) *Please contact regional Sales for this inquiry
