EOL

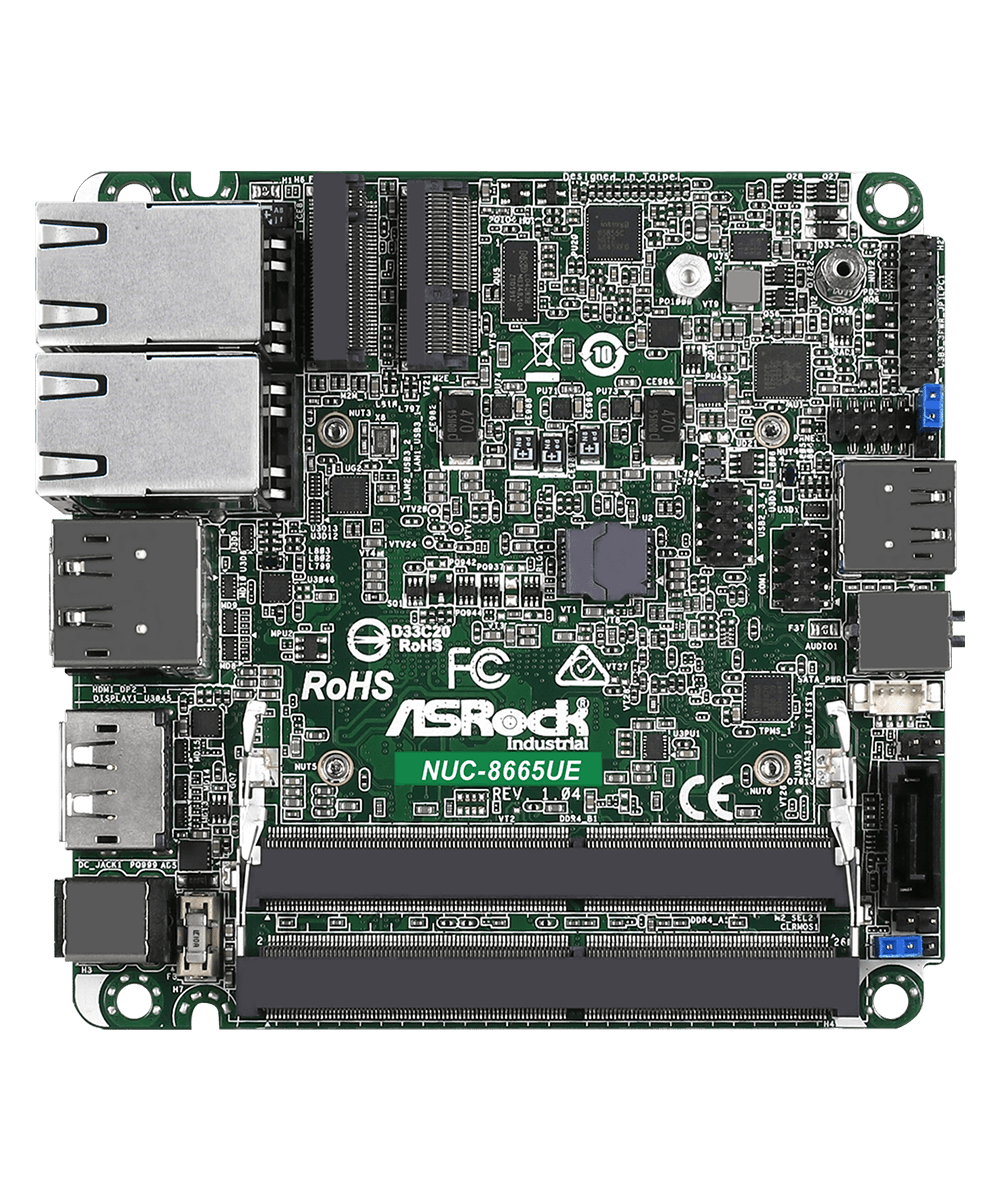

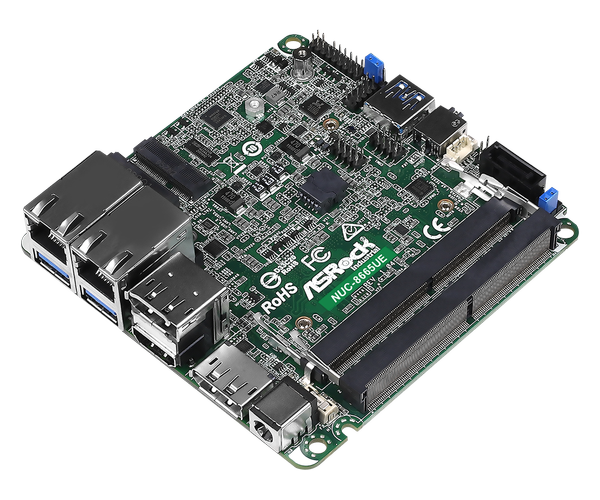

NUC-8665UE NUC Motherboard
- Intel®8th Gen (Whiskey lake-U)Core™ Processors i7-8665UE
- 2 x260-pin SO-DIMM up to 32GB DDR4 2400 MHZ (16GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB2.0, 1 x M.2 key M, 1 x M.2 Key E , 1 x COM,1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI1.4, 2x DP1.2a
- TPM 2.0 onboard IC
- Supports Intel® vPro/AMT, RAID 0/1
- 12V DC-In
製品仕様
Processor System
| CPU | Intel® 8th Gen(Whiskey lake-U)Core™ Processors NUC-8665UE(i7-8665UE QC, 1.8GHz, 15W) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2400 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 12 |
|---|---|
| HDMI | HDMI 1.4 Max resolution up to 4096 x 2160@24Hz |
| DisplayPort | DisplayPort 1.2a, Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| M.2 | 1 x Key E(2230) with PCIex1 and USB2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 1 x USB3.2 (Gen2) |
|---|---|
| Audio | 1 (Mic-in or Line-out) |
Rear I/O
| HDMI | 1 x HDMI 1.4 |
|---|---|
| DisplayPort | 2 xDP 1.2a |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2x USB3.2(Gen2) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM (RS232/422/485) |
| TPM | TPM2.0 on board IC |
| SATA PWR Output | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket) |
|---|---|
| SATA | 1 x SATA3(6Gb/s) |
| RAID | Intel® SATA RAID 0/1 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V DC-in(DC Jack) |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2,D=5 (13G020302031AK) 1 x NUT M2 H=6.5mm (13G020295030AK) 1 x NUT M2 H=3.35mm (13G020295030AK) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) 1 x SATA Data/Power Cable (14G000103111AK) |
|---|
上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
