Preliminary

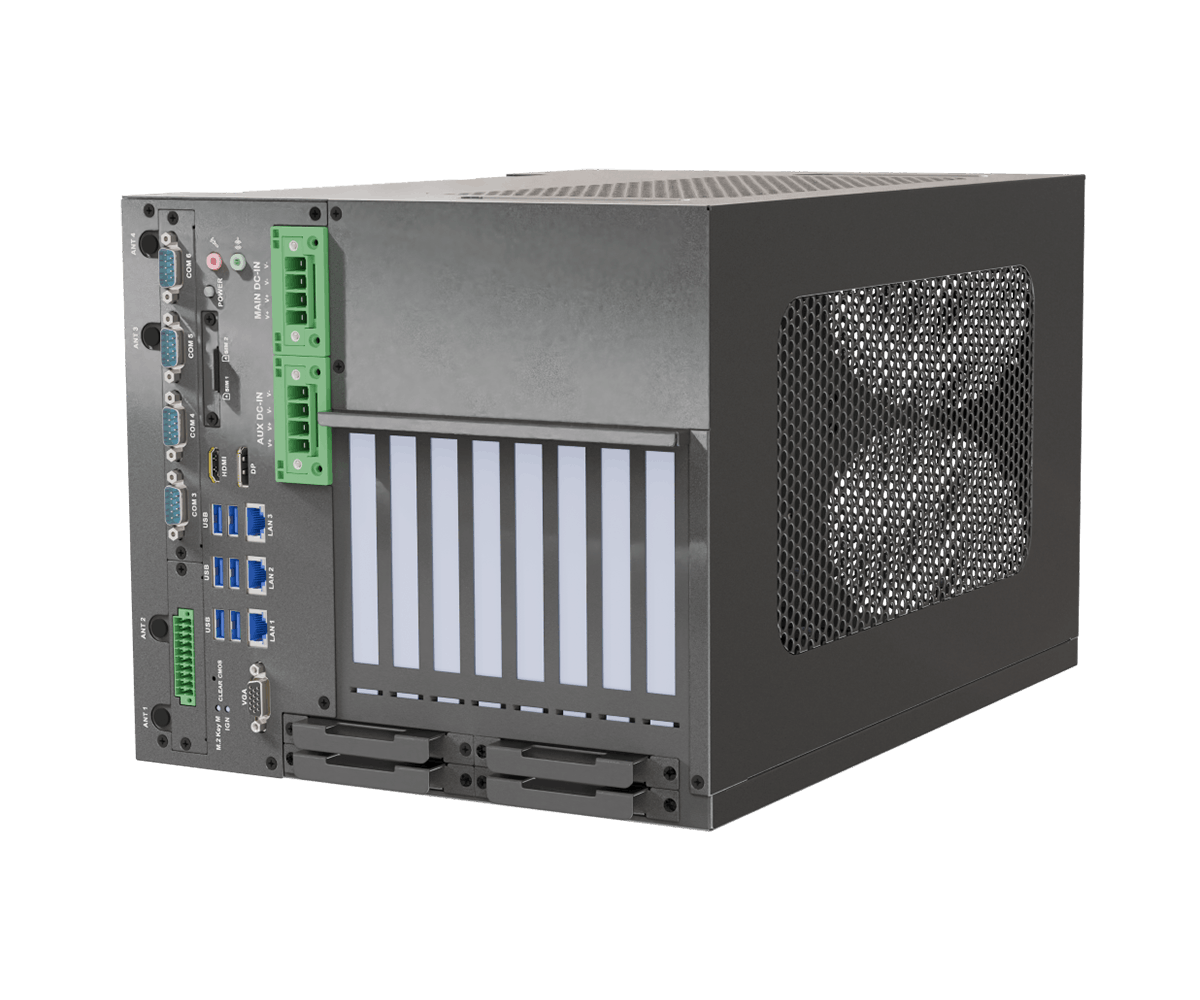

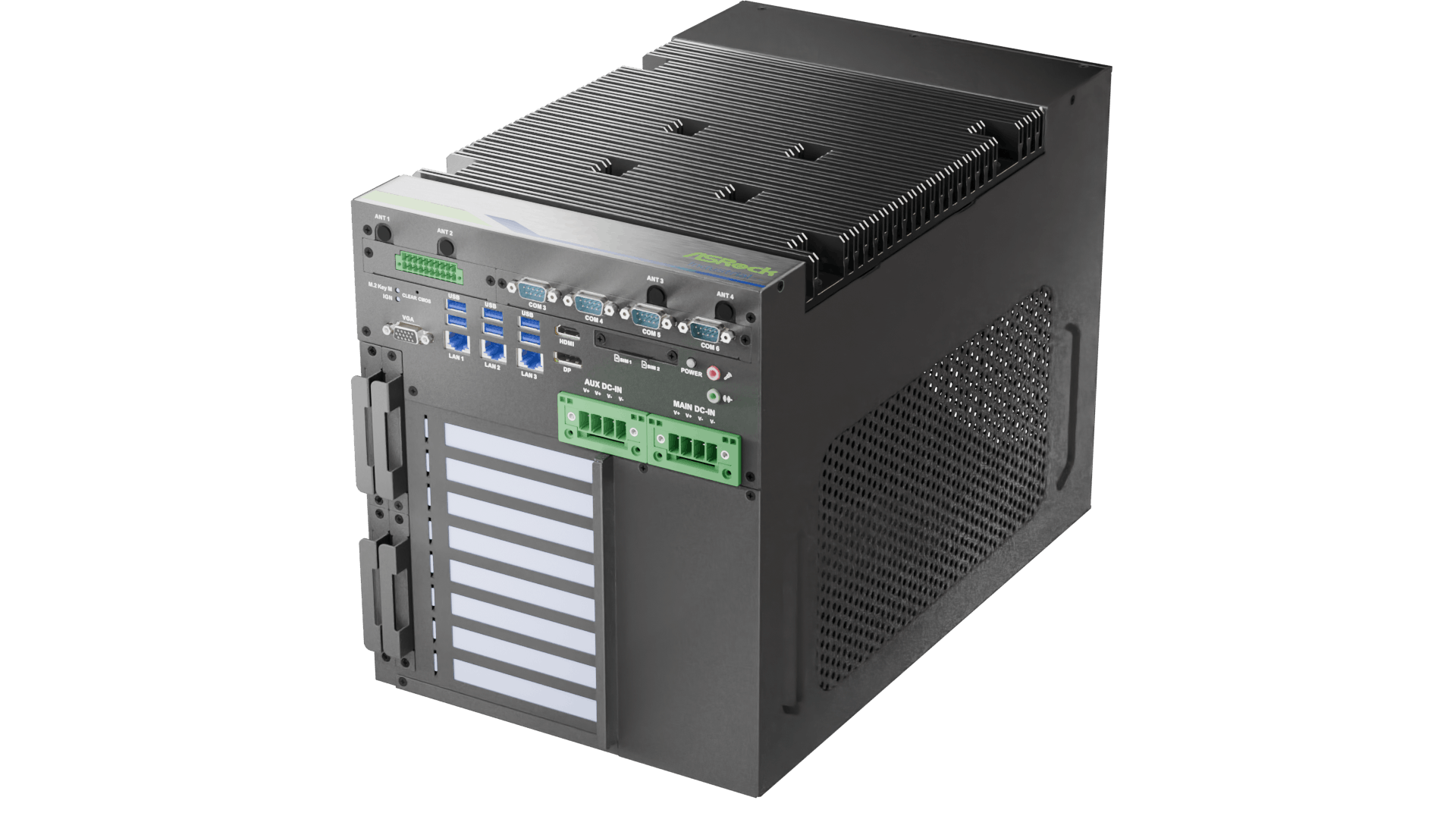

iEPF-9500S-EW7 Expandable Edge AIoT Platform
- Intel® Core™ Processors (Series 2) with R680E Chipset
- 4 x 288-pin DDR5 U-DIMM up to 192GB (48GB per DIMM)
- 1 x PCIe x16 (PCIe Gen5) or 2 x PCIe x8 (PCIe Gen5),1 x PCIe x 4 (PCIe Gen4), 4 x PCIe x 1 (Gen4)
- 2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E
- 6 x USB 3.2 Gen2x1
- 4 x COM, 4 x SATA3, 8 x DI, 8 x DO
- 3 x Intel 2.5G LAN (LAN1 support vPro)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Optional Kit: 10BASE-T1S function card, 8DIO card
- (w/ Isolation Protection), 4COM card (w/ Isolation Protection), OOB function card
- Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal,
- and power design, with support for 75mm x 360 mm x 194 mm (W x D x H) max.
- for one 600W graphic card and 58mm x 360 mm x 194 mm (W x D x H) max. for
- dual 600W graphic card
Overview
Specification
Processor System
| CPU | Intel® Core™ Processors (Series 2) |
|---|---|
| Chipset | Intel® R680E |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR5 5600MHz (ECC memory supported by R680E + Selected CPU) |
|---|---|
| Capacity | 192 GB (48GB per DIMM) |
| Socket | 4 x 288-pin U-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| PCIe | 1 x PCIe Gen5 x16 (single x16 or dual x8), 1 x PCIe Gen5 x8 (shared with dual x8) 1 x PCIe Gen4 x4 4 x PCIe Gen4 x1 |
|---|---|
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB 2.0 for Wi-Fi/BT module 1 x M.2 (Key B1, 2280/3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB 2.0 for 4G / 5G 1 x M.2 (Key B2, 3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB 2.0 for 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (2 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 3 x Intel® i226-IT (LAN1 supports vPro) |
|---|---|
| Connector | 3 x RJ45 |
Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| Ethernet | 3 x Intel 2.5G LAN1~ LAN3 |
| USB | 6 x USB 3.2 Gen2x1 |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 2 x RS232, 2 x RS232/422/485 |
| DIO | 8DIs/8DOs |
Storage
| M.2 | 1 x M.2 (Key M1, 2242/2260/2280/22110/25110) with Gen4 x4 for NVMe SSD 1 x M.2 (Key M2, 2242/2260/2280) with Gen4 x4 for NVMe SSD |
|---|---|
| SATA | 4 x SATA3 (6Gb/s), support RAID 0/1/5/10 Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V DC |
|---|
Environment
| Operating Temp | 45W CPU w/ dual 600W GPU: - 40°C ~ 55°C (-40°F ~ 131°F) 65W CPU w/ dual 600W GPU: - 40°C ~ 50°C (-40°F ~ 122°F) (with FAN inside) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| Vibration | MIL-STD-810H, Method 514.8 |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 288mm (W) x 450.3mm (D) x 250mm (H) (11.34" x 17.73" x 9.84") |
| Net Weight | 13kg |
Others
| OS Support | Windows 11 & Windows 10 & Linux |
|---|---|
| TPM | TPM 2.0 |
| Real-Time Enablement | TSN, TCC support under YOCTO |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
