iBOX-J6412 Fanless Embedded BOX PC
- Intel® ElkHart Lake SoC Processors J6412
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)
- 4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
- TPM 2.0 onboard IC
- 19V/65W Power Adapter
- 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
Overview
Specification
Processor System
| CPU | Intel® ElkHart Lake SoC Processors iBOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen 11 Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Dual-Display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 |
|---|
Audio
| Interface | Realtek ALC233/ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

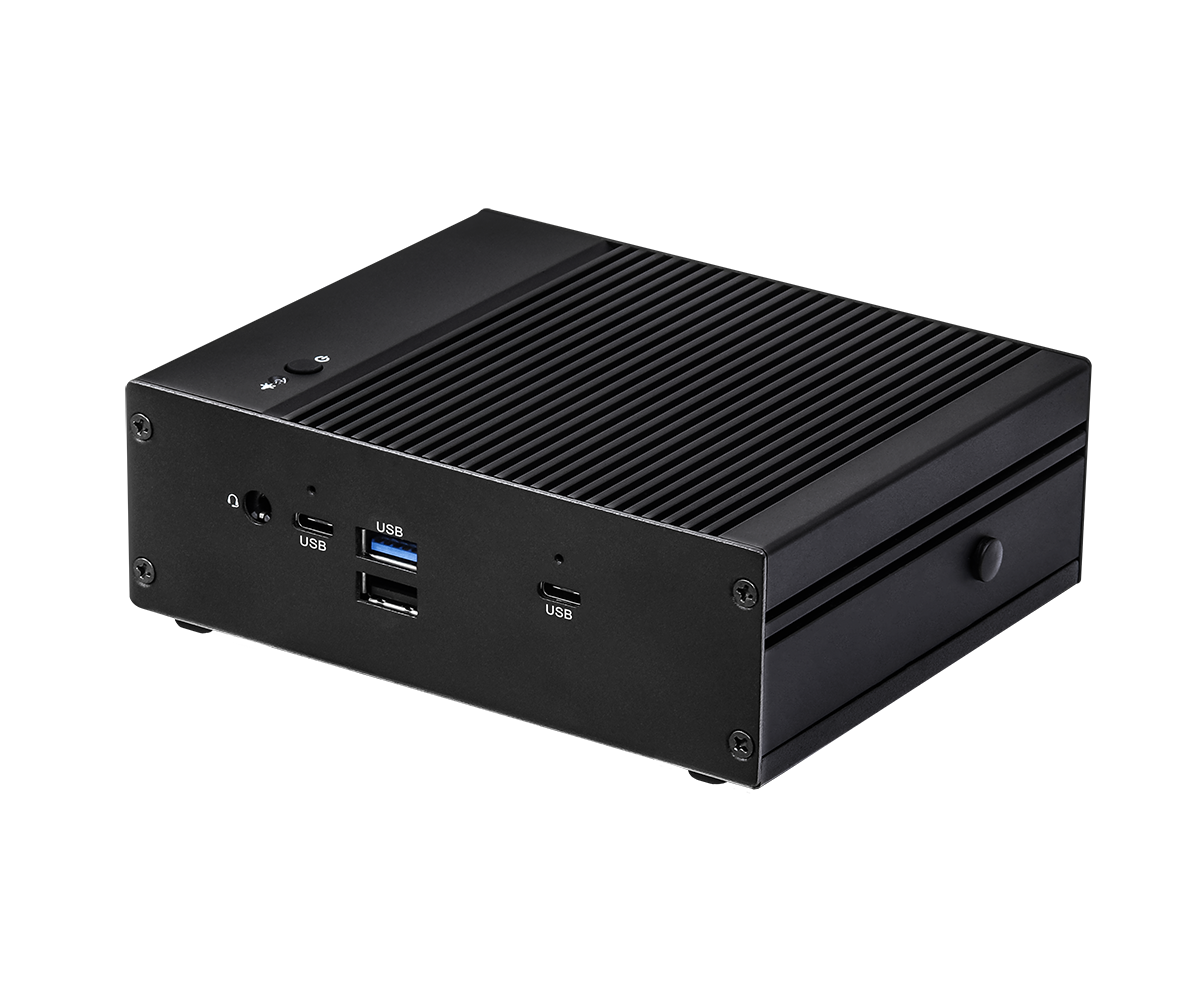

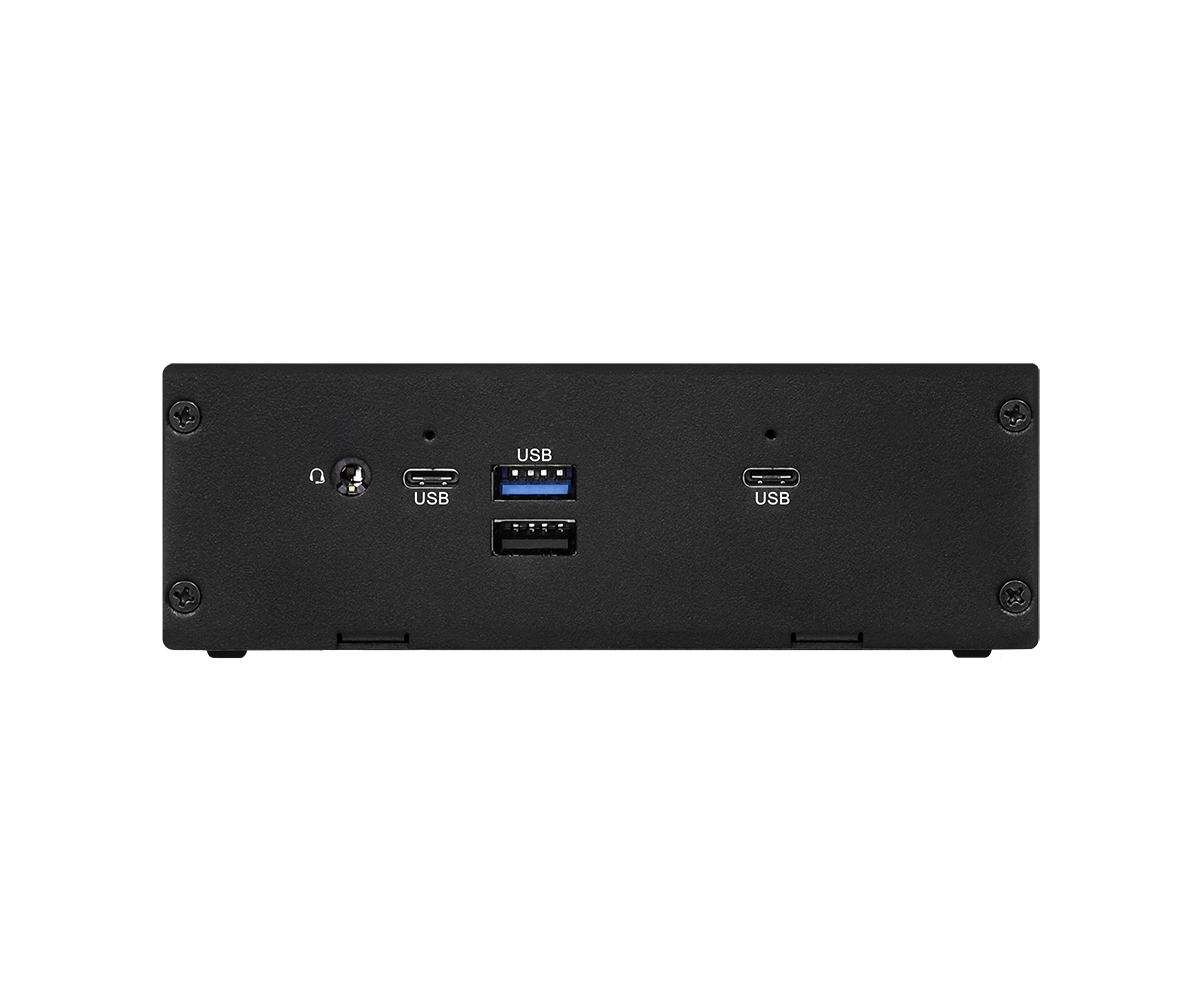

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C) 1 x USB 2.0 |
|---|---|
| Audio | 1 (headphone & microphone jack) |

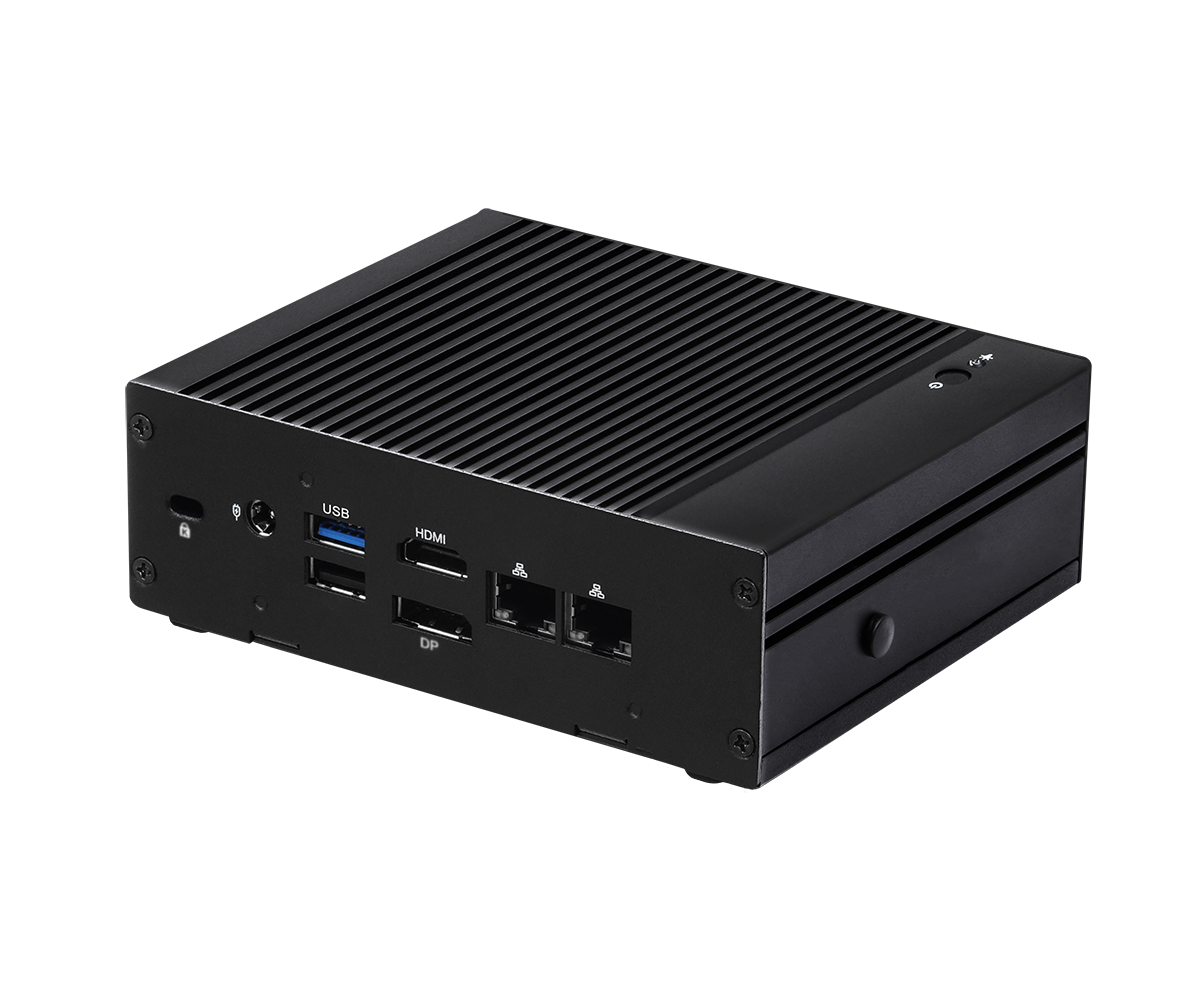

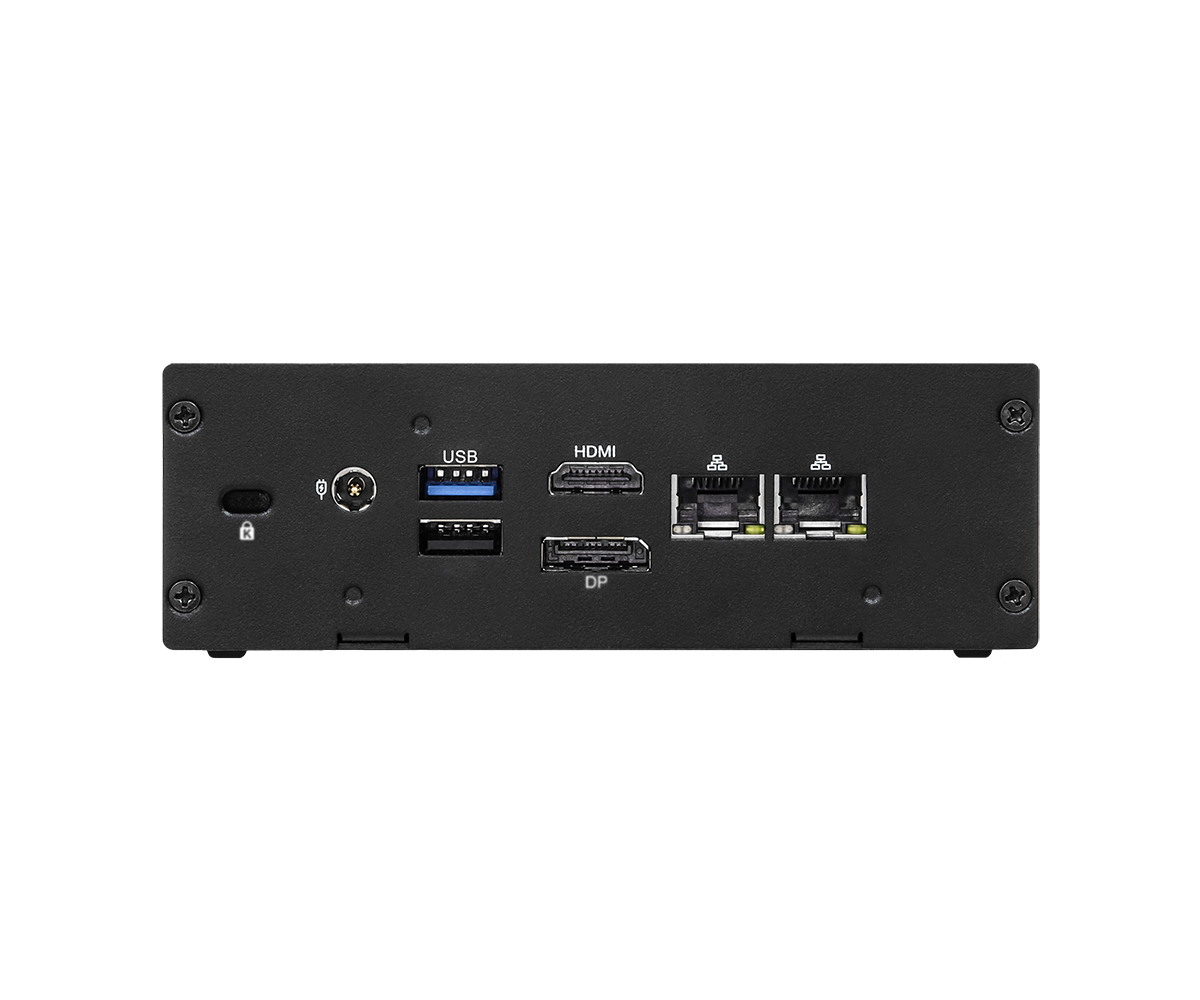

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.2 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 1 x USB 2.0 1 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 1 x 19V/65W Power Adapter |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 50ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Construction | Aluminum housing |
|---|---|
| Mounting | VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) | 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75") |
| Weight | Net Weight: 0.7kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| Certifications | CE, FCC |
| Packing List | 1 x 19V/65W Power Adapter 1 x Wall mounting kit |
| TPM | TPM 2.0 onboard IC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
