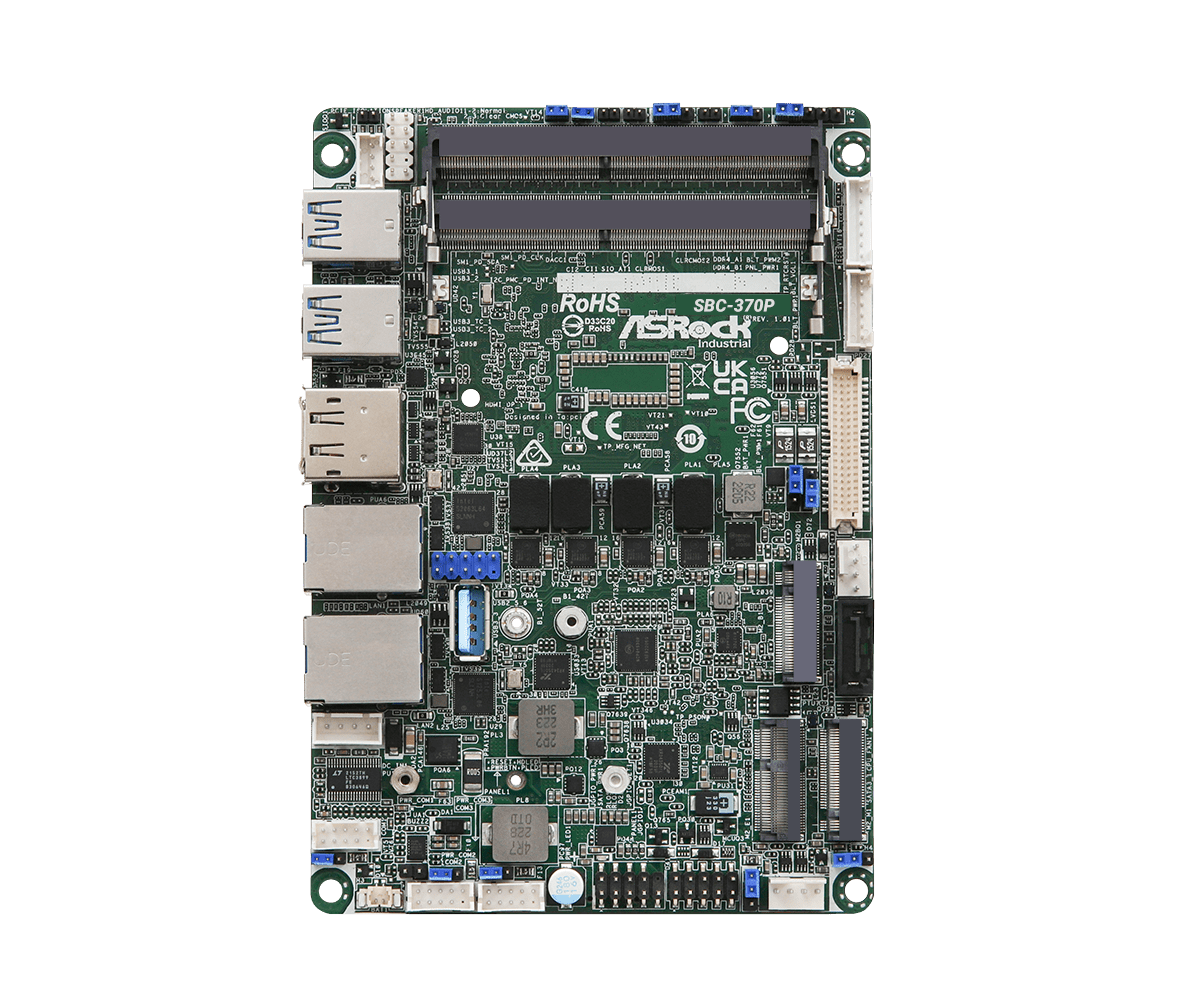

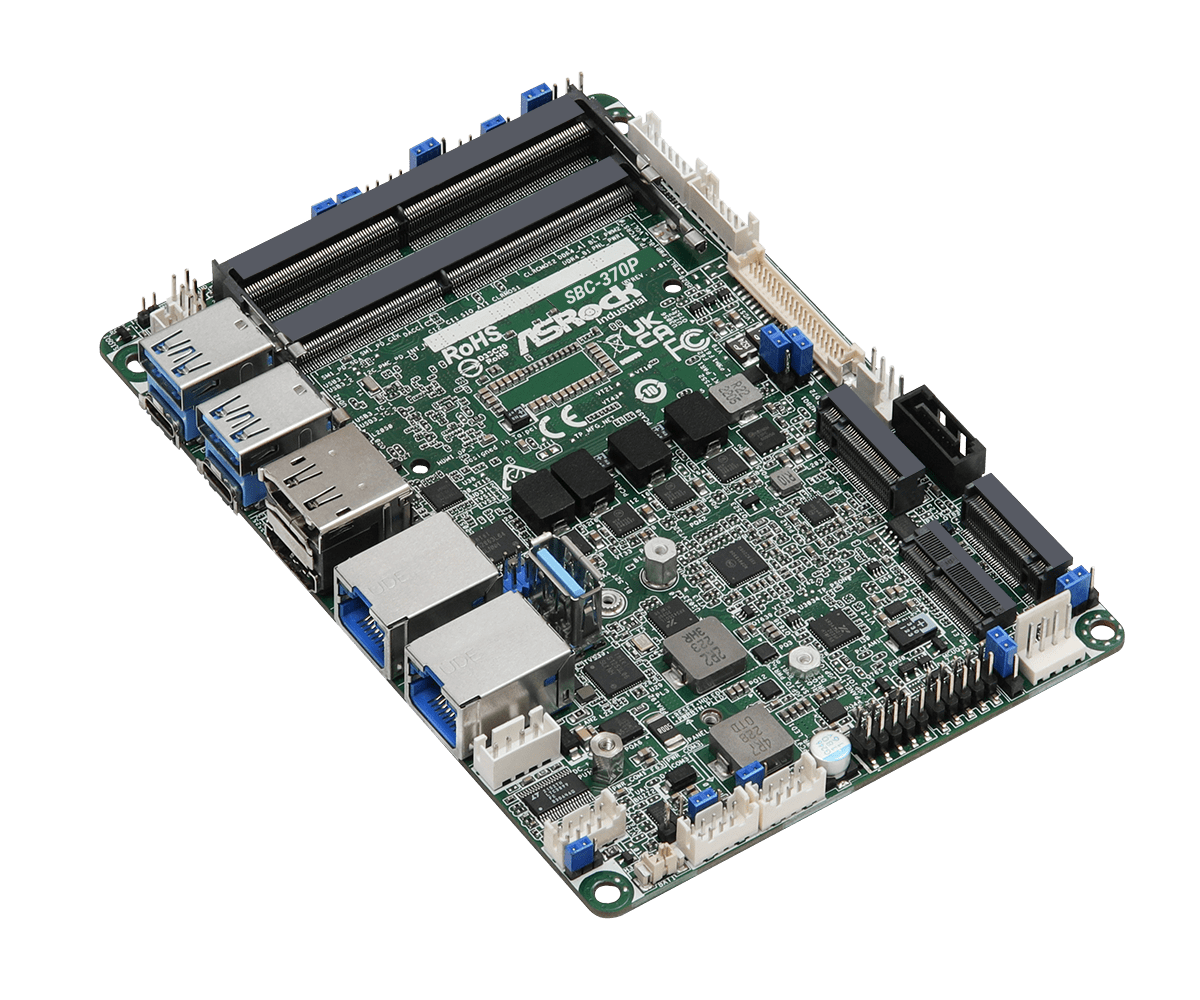

SBC-370P SBC 3.5
- Intel® 12th Gen Alder Lake P Processors i7-1265UE
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64 GB (32GB per DIMM)
- 1 x PCIe x1, 2 x USB 3.2 Gen2x2, 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 3 x COM, 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C), 1 x LVDS or eDP
- TPM 2.0 onboard IC
- Supports Intel® vPro, VMD RAID 0/1
- 12~36V DC-In PWR/ 12V DC-In only (BOM option)
Specification
Processor System
| CPU | Intel® 12th Gen Alder Lake P Processors i7-1265UE, 2P+8E |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Iris® Xe Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | DP 1.4a Max resolution up to 4096 x 2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Quad display (Included 2 output from Type-C) |
Expansion Slot
| PCIe | 1 x PCIe x1 Gen3 (supports up to 10W) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1 or SATA3 and USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x SIM socket connected to M.2 key B |
Audio
| Interface | Realtek ALC256 HD, High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| USB | 2 x USB 3.2 Gen2 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) |
| Ethernet | 2 x 2.5 Gigabit LAN |
Internal Connector
| USB | 1 x USB 3.2 Gen2 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | COM1, COM3, COM4 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
| RAID | Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: M.2 Key B + M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x Heat Spreader 102.22*147.01mm (13G070252031AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) 1 x 2.00mm MINI JUMPER (12G044200021AK) |
|---|---|
| Bulk Package | 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
