EOL

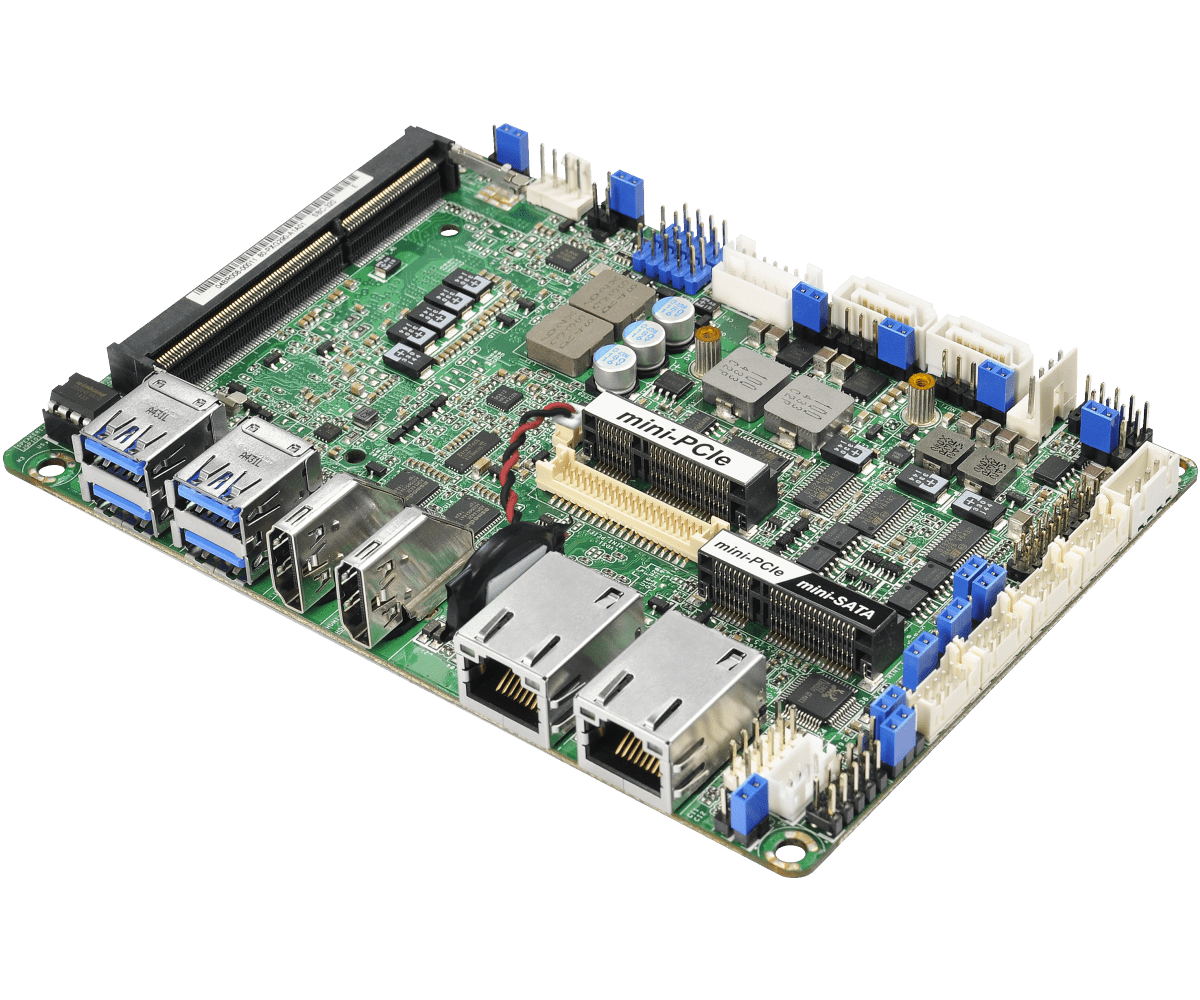

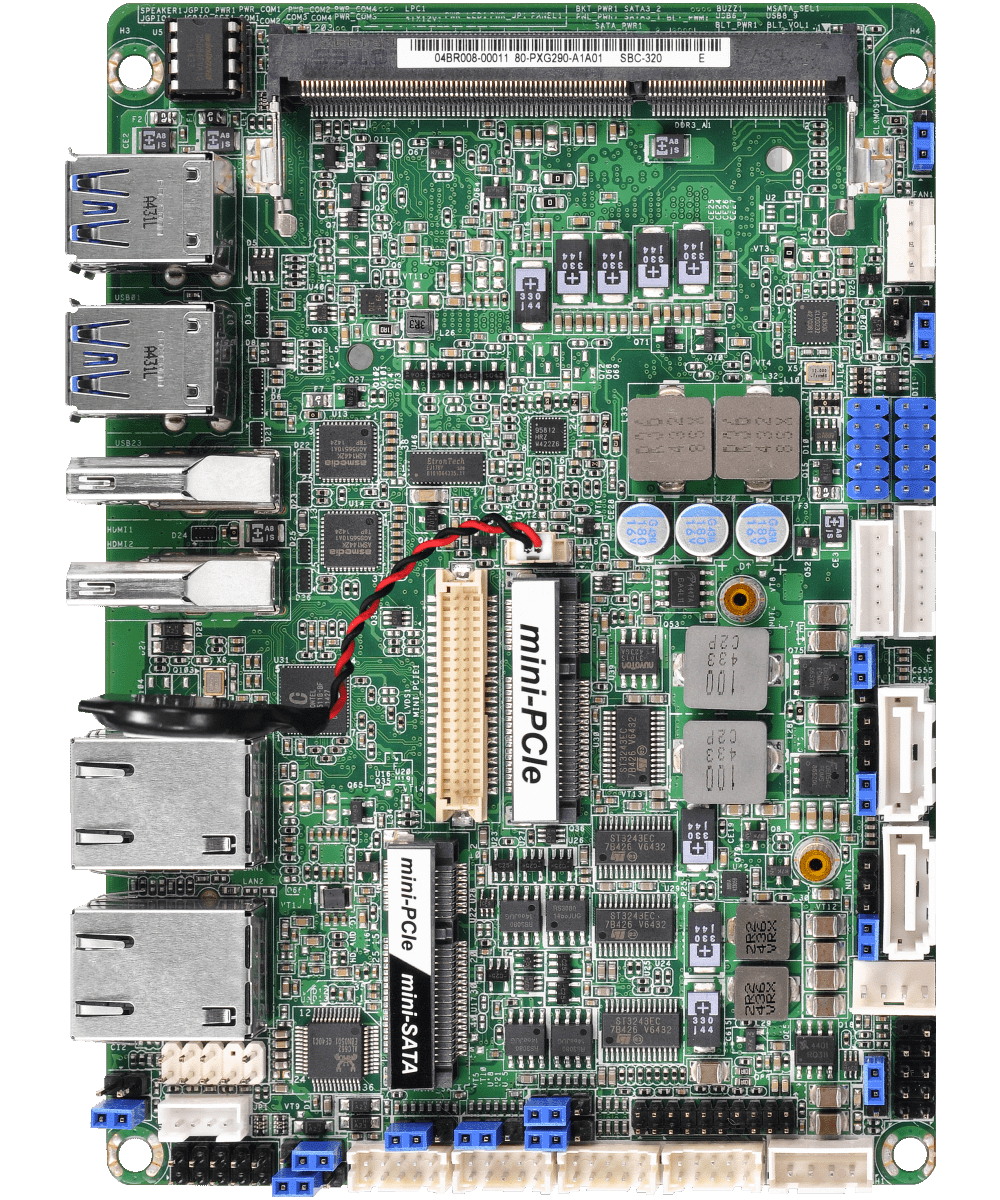

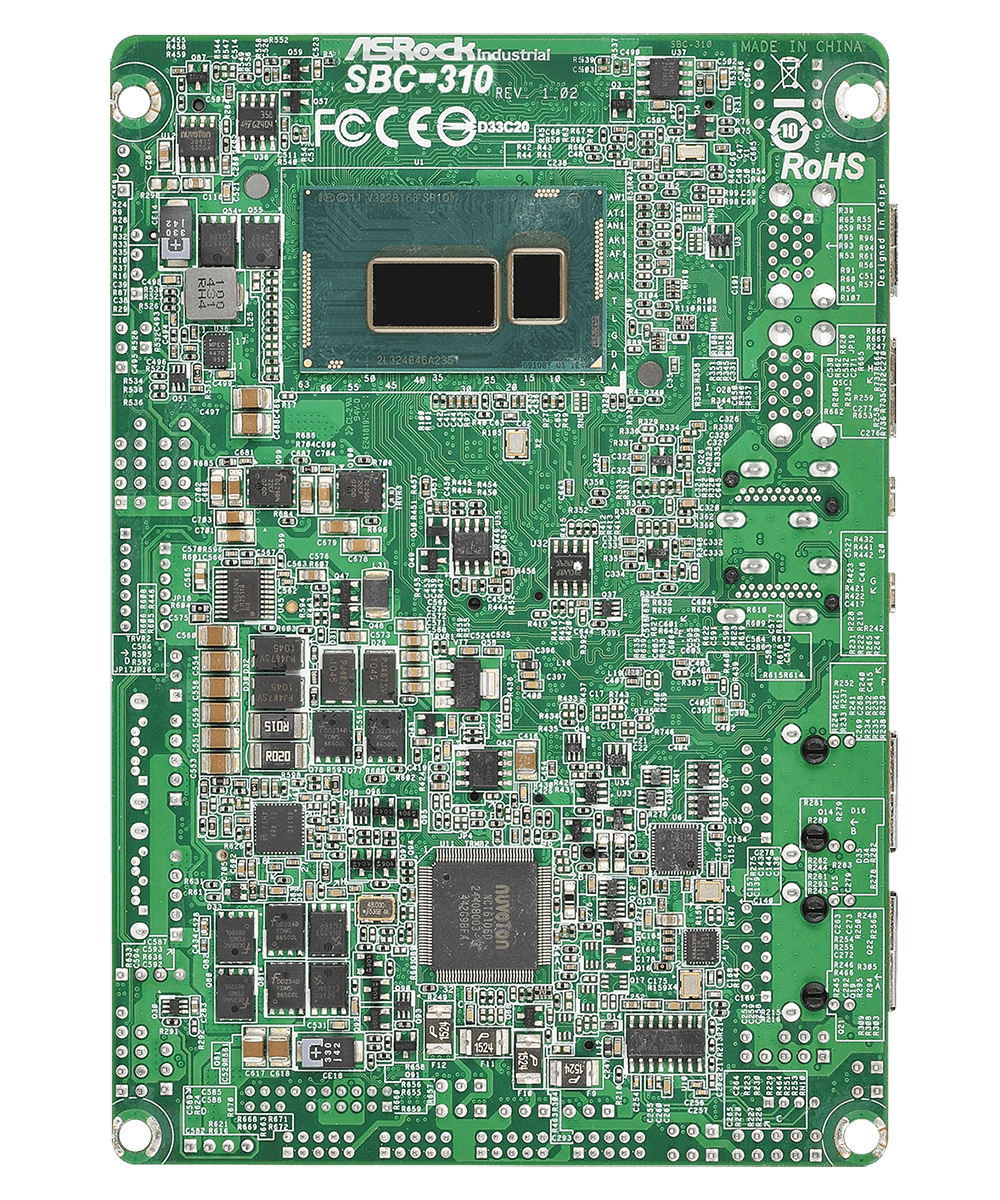

SBC-310M SBC 3.5
- Intel® 4th Gen (Haswell-U) Core™ Processors i5-4300U
- 1 x 204-pin SO-DIMM up to 8GB DDR3L 1333/1600 MHz
- 4 x USB 3.1 Gen2, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA/mini-PCIe,
- 4 x COM, 2 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Supports triple display, 2 x HDMI 1.4a, 1 x LVDS
- TPM Header
- 9~36V DC-In
Specification
Processor System
| CPU | Intel® 4th Gen (Haswell-U) Core™ Processors i5-4300U, QC, 1.90 GHz, 15W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 64 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm) |
|---|
Memory
| Technology | Single Channel DDR3L 1333/1600 MHz |
|---|---|
| Capacity | 8 GB |
| Socket | 1 x 204-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 11 |
|---|---|
| HDMI | HDMI 1.4a Max resolution up to 4096x2304@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| mini-PCIe | 1 x Full size with PCIe x1 and USB 2.0 |
|---|---|
| mini-PCIe/mSATA | 1 x Full size with SATA3 and USB 2.0 |
Ethernet
| Controller/ Speed | SBC-310P/310M LAN1: Realtek RTL8111G/RTL8111H-CGwith 10/100/1000 Mbps LAN2: Intel® I218LM with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

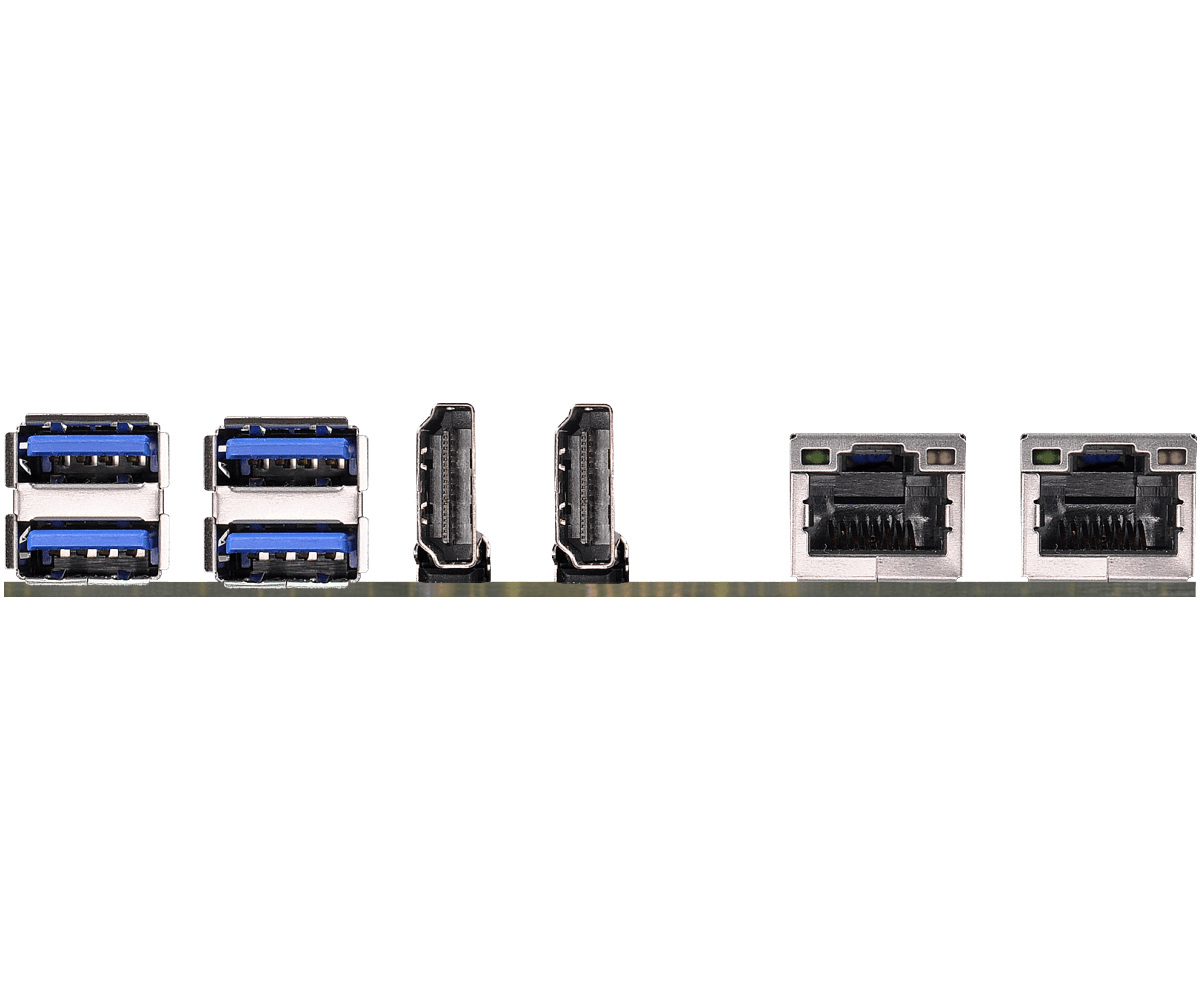

Rear I/O
| HDMI | 2 x HDMI 1.4a |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
Internal Connector
| USB | 4 x USB 2.0 (2x 2.54 pitch header) |
|---|---|
| COM | 2 x COM (RS-232/422/485) 2 x COM (RS-232) |
| GPIO | 4 x GPI + 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| mSATA | 1 x Half size with PCIe x1, SATA3 and USB 2.0 colay with mini-PCIe |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9~36V (DC In) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x AL PLATE 102.22*147.01mm (13G070252010AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
