EOL

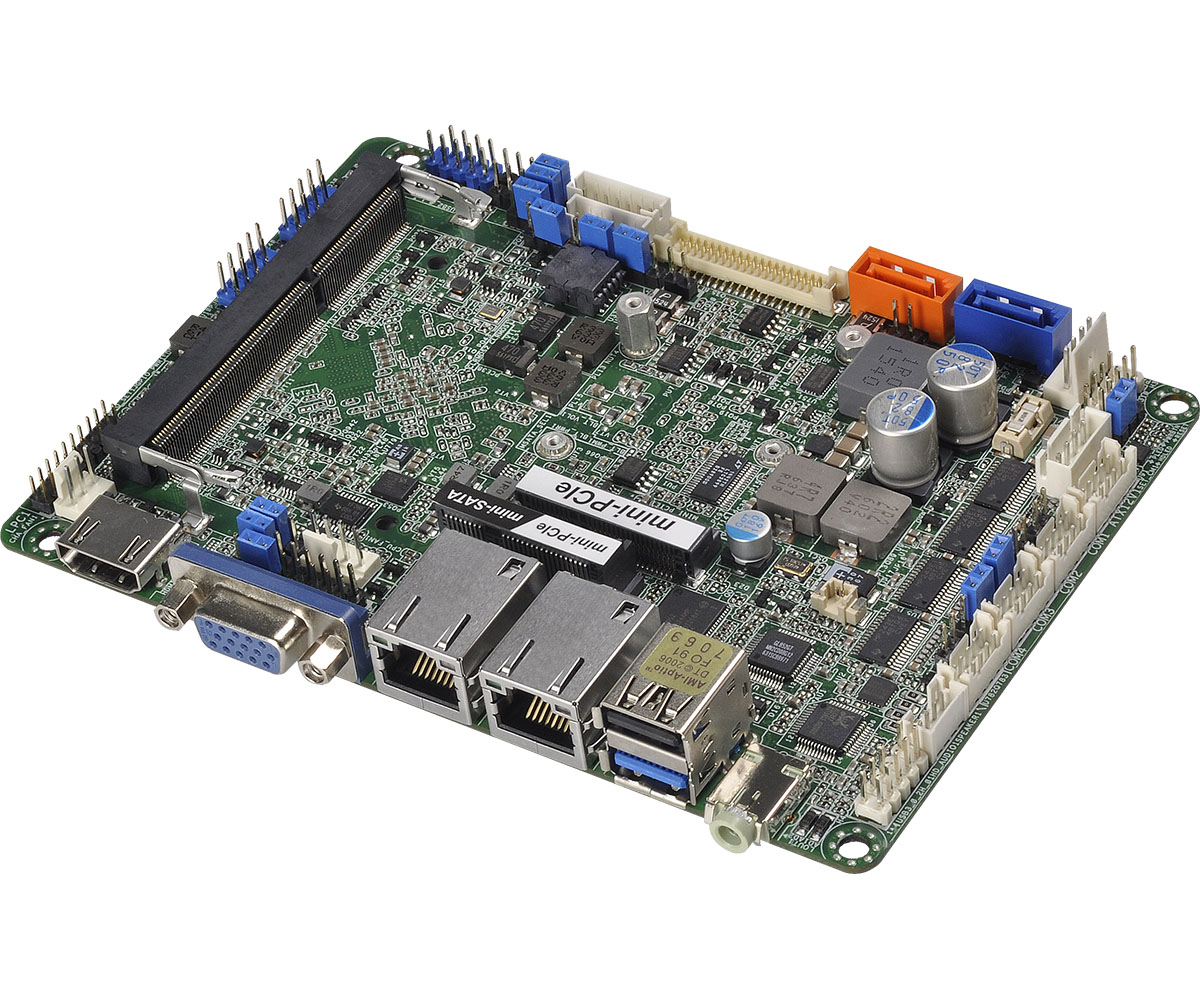

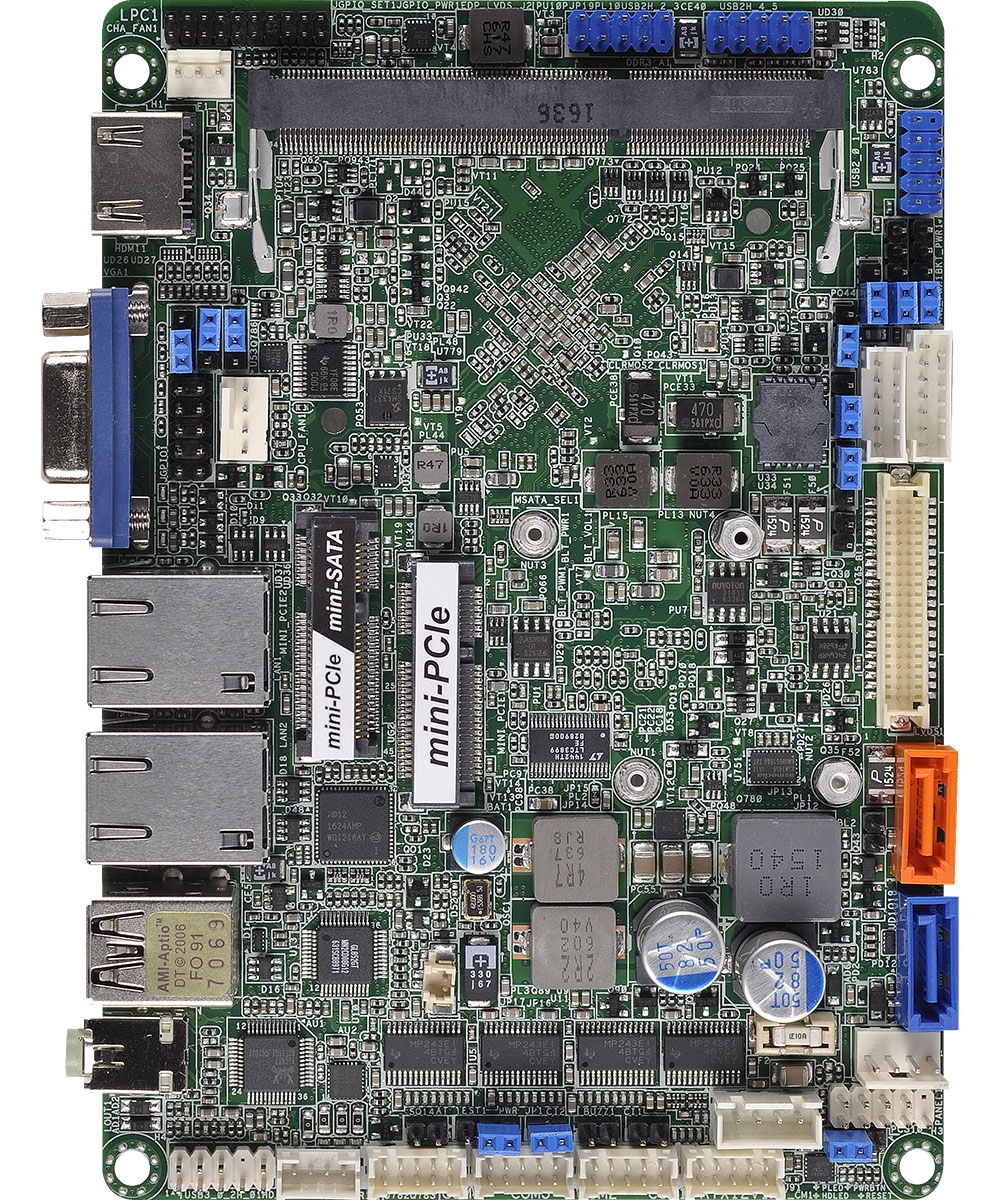

SBC-212-WT SBC 3.5
- Intel® Baytrail-I E3845 SoC Processor
- Supports Single Channel DDR3L SO-DIMM 1333MHz, up to 8GB
- 4 x COM
- 1 x HDMI, 1 x D-Sub, 1 x LVDS, 2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x mini-PCIe, 1 x mSATA (shared)
- 2 x Intel LAN
- 1 x TPM Header
- 9~36 V DC-in (4-pin DC-in PWR Con)
Specification
Processor System
| CPU | Intel® Baytrail-I E3845 SoC Processor E3845, QC, 1.91GHz, 10W |
|---|---|
| Chipset | SoC |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4.0-in) |
|---|
Memory
| Technology | Single Channel DDR3L 1333 MHz |
|---|---|
| Capacity | 8GB |
| Socket | 1 x SO-DIMM |
Graphics
| Controller | Intel® Gen7 Intel® Graphics DX 11, OGL3.2 |
|---|---|
| HDMI | Supports max resolution up to 1920 x 1200 |
| VGA | Supports max resolution up to 1920 x 1200 |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| mini-PCIe | 1 x Half size with PCIe x1 and USB 2.0 |
|---|---|
| mini-PCIe/mSATA | 1 x Full size with PCIe x1 , SATA2 and USB 2.0 |
Ethernet
| Controller/ Speed | 10/100/1000 Mbps |
|---|---|
| Connector | 2 x Intel I210IT |

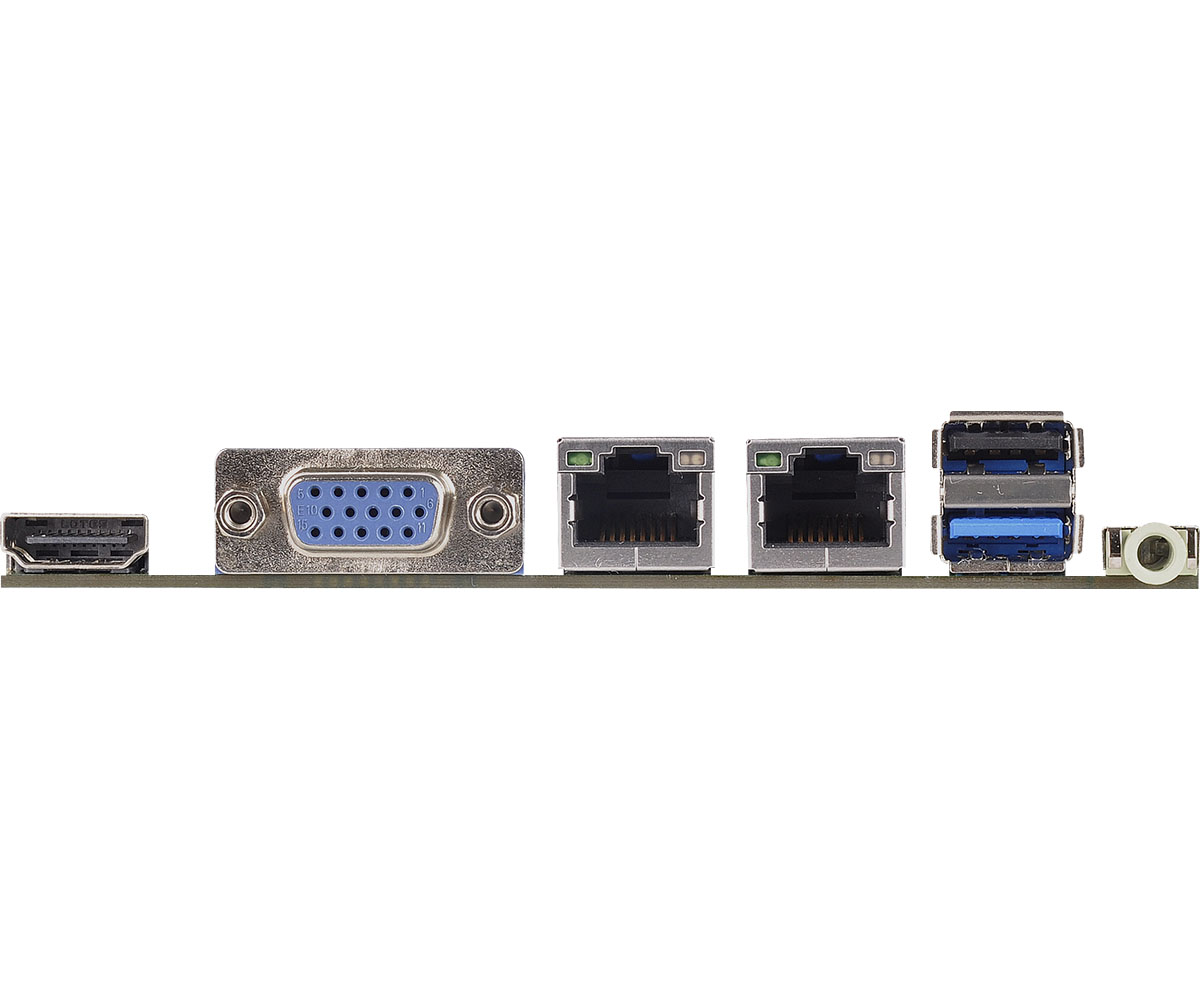

Rear I/O
| HDMI | 1 |
|---|---|
| VGA | 1 |
| Ethernet | 2 |
| USB | 1 x USB 3.0, 1 x USB 2.0 |
| Audio | 1 (Line-out) |
Internal Connector
| USB | 6 x USB 2.0 |
|---|---|
| COM | 3 x COM (RS-232), 1 x COM (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | 1 x Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA2 |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9-36V DC-In (4-pin DC-in PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC – 75ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x HEATSINK 147*102.2mm (13G070194000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC power jack,L=150 (14G000600900AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
