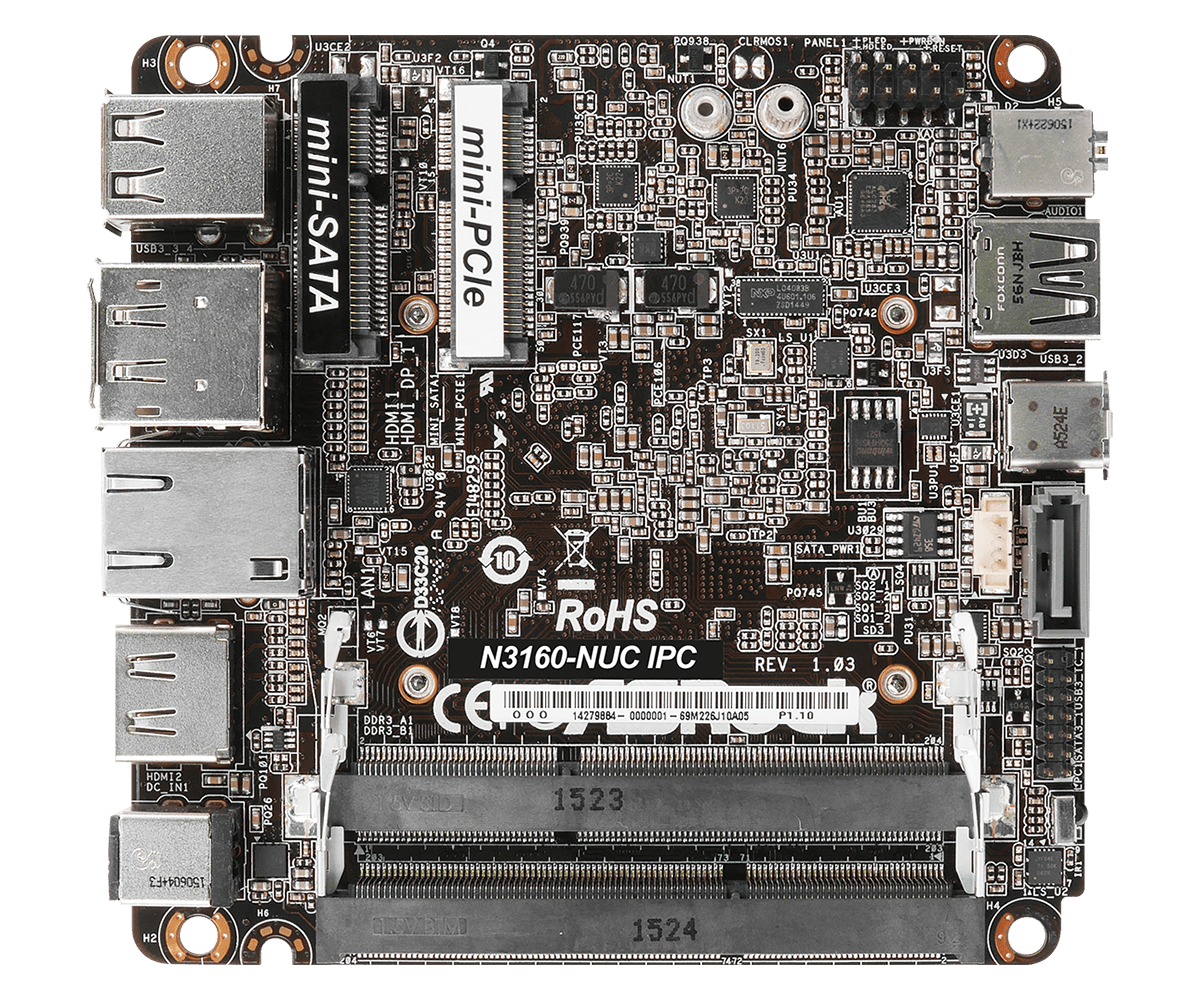

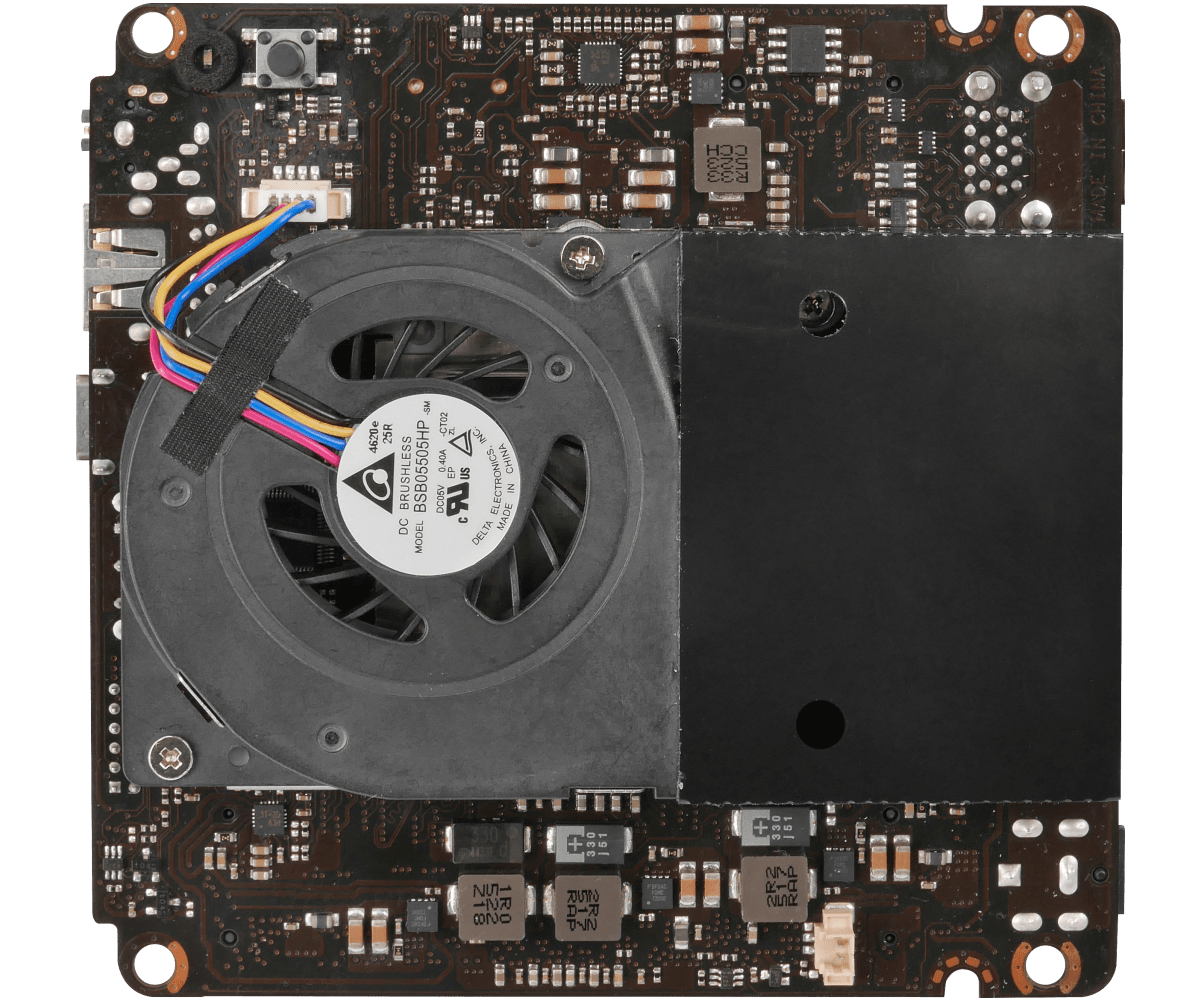

N3160-NUC IPC NUC Motherboard
- Intel® Braswell SoC Processor N3160
- 2 x 204-pin SO-DIMM up to 16GB DDR3L 1600 MHz ( 8GB per DIMM )
- 1 x mini-PCIe , 3 x USB 3.1 Gen1 , 1 x USB 3.1 Gen1 Type C , 1 x mSATA, 1 x SATA3
- 1x Realtek 1 Gigabit LAN
- Supports triple display, 2 x HDMI1.4 , 1 x DP1.2
- 12V DC-In
Specification
Processor System
| CPU | Intel®Brasswell Soc Processor N3160, QC, 1.60GHz, 6W |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 64 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm) |
|---|
Memory
| Technology | Dual Channel DDR3L 1600 MHz |
|---|---|
| Capacity | 16GB (8 GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
Graphics
| Controller | Intel® Gen8 Graphics DX 11,OGL3.2 |
|---|---|
| HDMI | HDMI 1.4a Max resolution up to 3840 x 2160@30Hz |
| DisplayPort | DisplayPort 1.1a , Max resolution up to 3840x2160@30Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| mini-PCIe | 1x Half size with PCIe x1 and USB2.0 |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | 1 x Realtek RTL811G with 10/100/1000Mbps |
|---|---|
| Connector | 1 x RJ-45 |

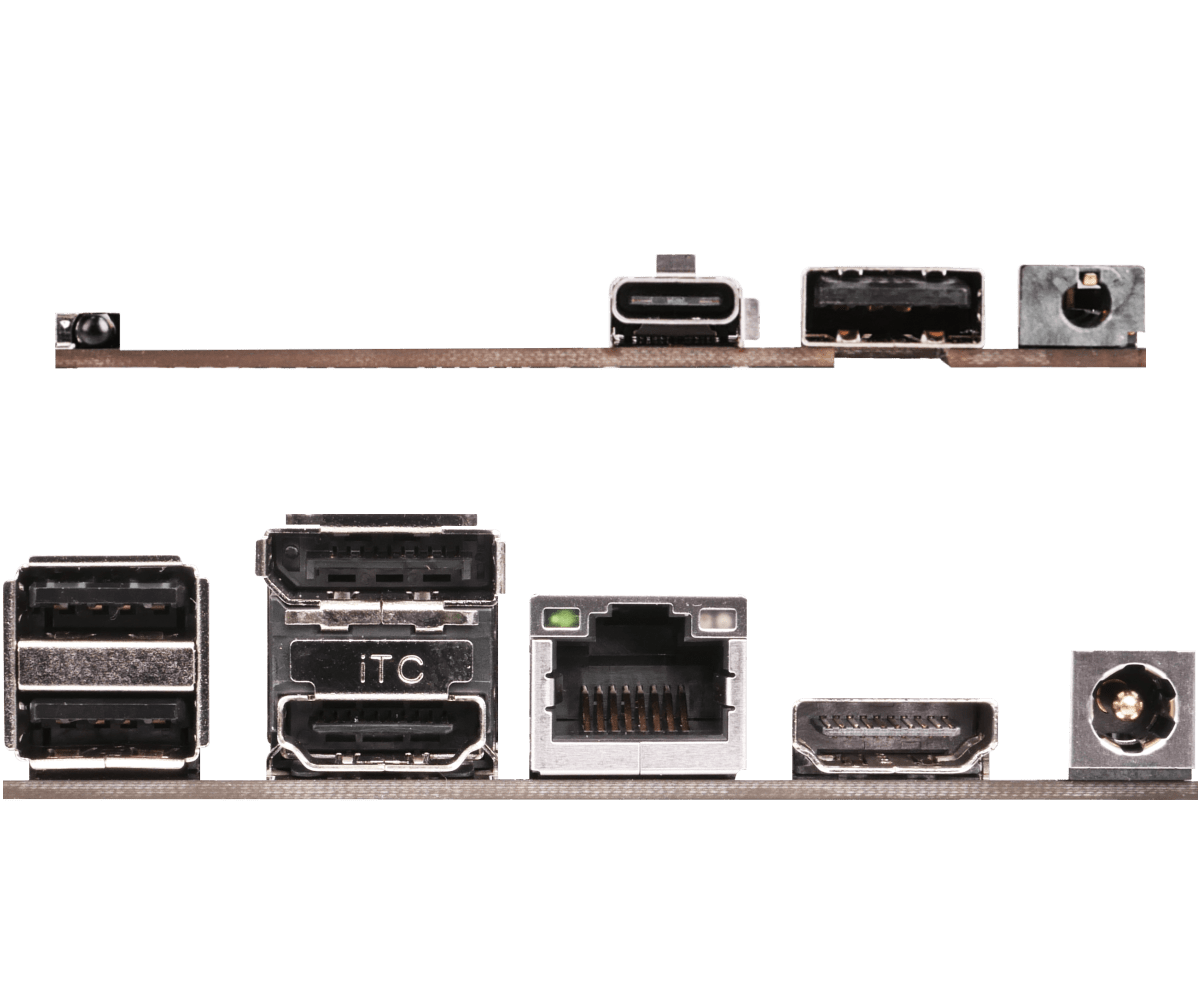

Front I/O
| USB | 1 x USB3.1 Gen1 (Type C, 5V/3A) 1 x USB3.1 Gen1 |
|---|---|
| Audio | 1 (Mic-in or Line-out) |
Rear I/O
| HDMI | 2 x HDMI 1.4 |
|---|---|
| DisplayPort | 1 x DP 1.2 |
| Ethernet | 1 x 1 Gigabit LAN |
| USB | 2 x USB 3.0 |
| DC Jack | 1 |
Internal Connector
| USB | N/A |
|---|---|
| SATA PWR Output | 1 |
Storage
| mSATA | 1 |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-in(DC Jack) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
