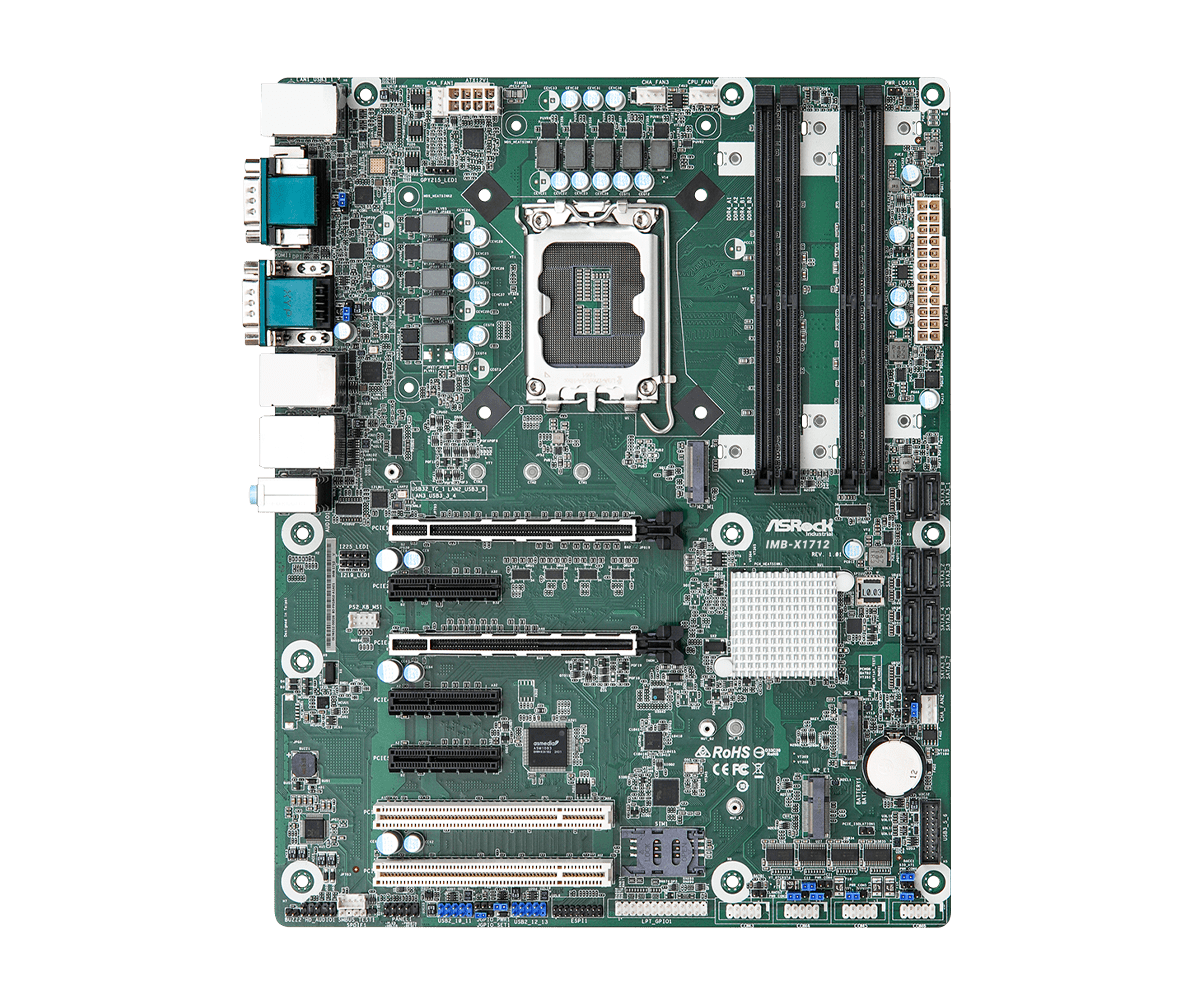

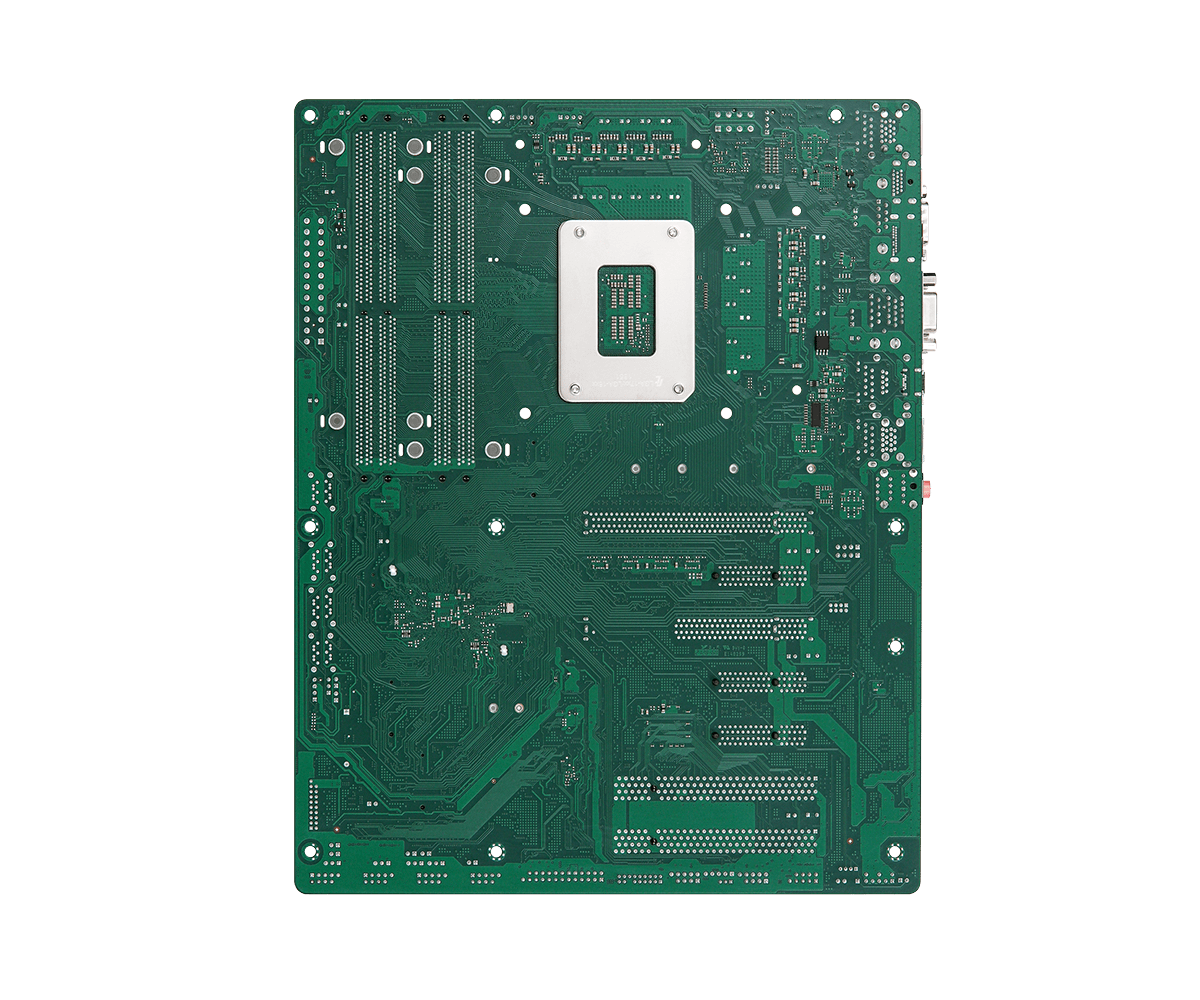

IMB-X1712 ATX Motherboard

Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
4 x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz , up to 128GB (32GB per DIMM)
1 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI
1 x USB 3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 8 x SATA3
3 x Intel 2.5 Gigabit LAN
Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
TPM 2.0 onboard IC
Supports Intel® vPro, VMD RAID 0/1/5/10
ATX PWR (8+24 Pin)

Datasheet

Specification

Processor System

CPU	Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset	Intel® W680
Socket	LGA1700
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

Technology	Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity	128 GB (32 GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8/x8) 2 x PCIe x4 (Gen4) 1 x PCIe x4 (Gen3)
PCI	2 x PCI
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 Key B

Audio

Interface	Realtek ALC897, High Definition Audio. Line-In / Line-Out / Mic-In

Ethernet

Controller/ Speed	LAN1: Intel® I225LM/I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V/I226V with 10/100/1000/2500 Mbps LAN3: Intel® I225LM/I225V/I226V with 10/100/1000/2500 Mbps
Connector	3 x RJ-45

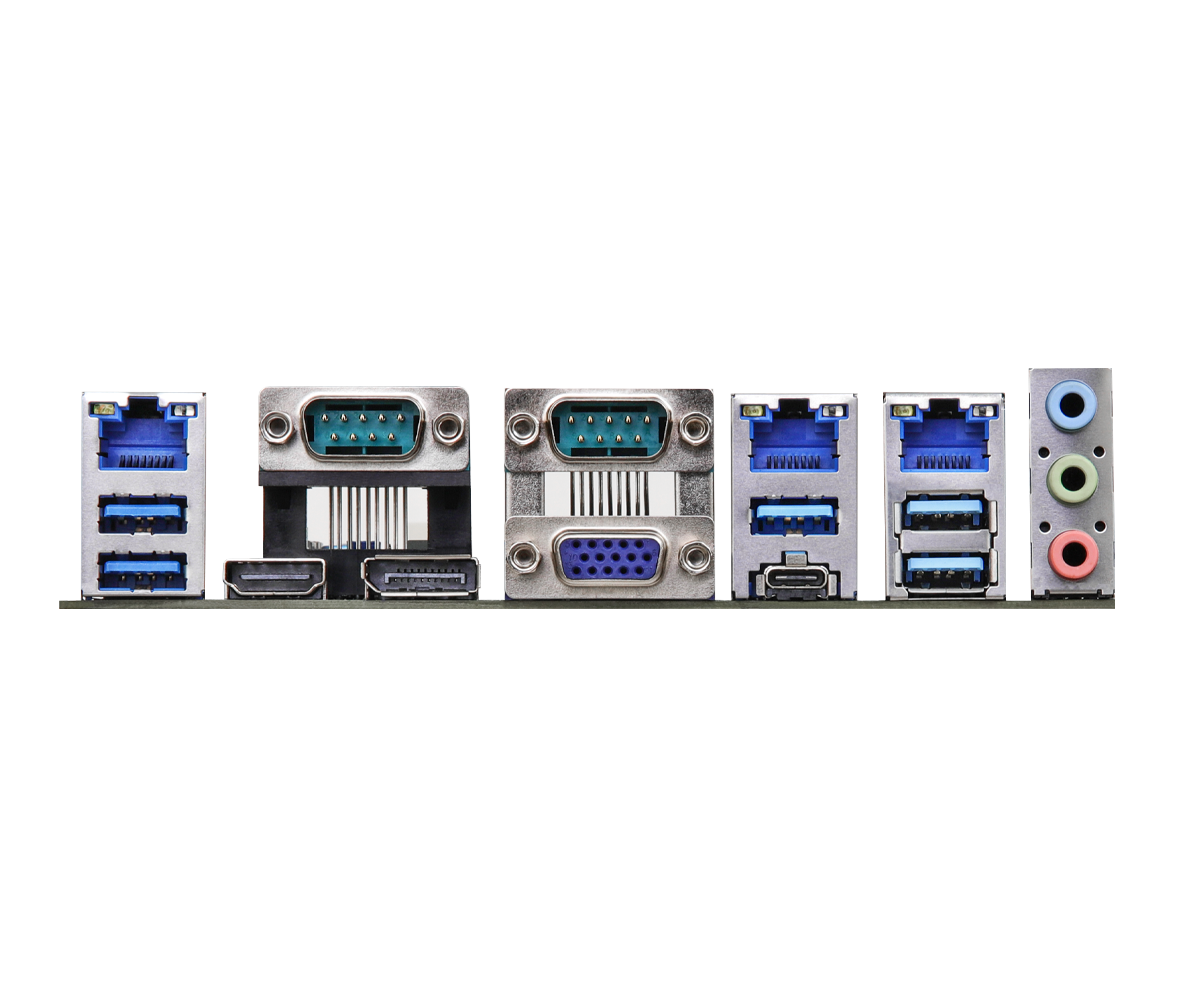

Rear I/O

HDMI	1 x HDMI 2.0b
DisplayPort	1 x DP 1.4a++
VGA	1
Ethernet	3 x 2.5 Gigabit LAN
USB	5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio	3 ( Line-In, Line-Out, Mic-In )
COM	COM1, COM2 (RS-232/422/485)

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM3, COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
PS/2	1 x PS2 header
Thunderbolt header	1 (only support by PCIE4)

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD
SATA	8 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (8+24 Pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020776000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.54mm MINI JUMPER (12G044060027AK)
Bulk Package	1 x I/O Shield (13G020776000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.54mm MINI JUMPER (12G044060027AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description	Information	OS	Date	Download
Description	[Beta] Intel Management Engine driver ver: 2512.7.13.0	Information	Size: 1268Mib Version:2512.7.13.0 SHA256: d6de256503a58327faf0c51331e9a94f737380647ae6acf1ebd5080959ab3ea8 Filename:ME Driver(2512.7.13.0) Release Note	OS	Win 11 x 64	Date	2025-12-23	Download	Global China
Description	Intel Management Engine driver ver: 2512.7.13.0	Information	Size: 1268Mib Version:2512.7.13.0 SHA256: d6de256503a58327faf0c51331e9a94f737380647ae6acf1ebd5080959ab3ea8 Filename:ME Driver(2512.7.13.0) Release Note	OS	Win 10 x 64	Date	2025-12-23	Download	Global China
Description	[Beta] VGA driver ver:32.0.101.5972	Information	Size: 1802Mib Version:32.0.101.5972 SHA256:d87e3532790586332bdb4a49c77ed43626e75da52c673061b5d482f4773126d3 Filename:Onboard VGA Driver(v32.0.101.5972) Release Note	OS	Win 11 x 64	Date	2025-12-23	Download	Global China
Description	VGA driver ver:32.0.101.5972	Information	Size: 1802Mib Version:32.0.101.5972 SHA256:d87e3532790586332bdb4a49c77ed43626e75da52c673061b5d482f4773126d3 Filename:Onboard VGA Driver(v32.0.101.5972) Release Note	OS	Win 10 x 64	Date	2025-12-23	Download	Global China
Description	[Beta] INF Driver ver: 10.1.19913.8607	Information	Size: 15 Mib Version:10.1.19913.8607 SHA256: 08063dd24d4b4c8d257fc36d53726ed58b01fc840b866447864d9c18d2a8af79 Filename:INF Driver(v10.1.19913.8607) Release Note	OS	Win 11 x 64	Date	2025-12-22	Download	Global China
Description	INF Driver ver: 10.1.19913.8607	Information	Size: 15 Mib Version:10.1.19913.8607 SHA256: 08063dd24d4b4c8d257fc36d53726ed58b01fc840b866447864d9c18d2a8af79 Filename:INF Driver(v10.1.19913.8607) Release Note	OS	Win 10 x 64	Date	2025-12-22	Download	Global China
Description	Intel Rapid Storage Technology driver and utility ver:19.5.1.1040.3	Information	Size: 49Mib Version:19.5.1.1040.3 SHA256: 3371a6910ff29d1d227b16b0e342f62dc5f6cf5f6f6dae1e2b40b17b77b33c50 Filename:RapidStorage(v19.5.1.1040.3).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2023-11-01	Download	Global China
Description	Intel HID Event Filter ver:2.2.1.386	Information	Size: 1258Kib Version: 2.2.1.386 SHA256: 9622c3022006f7f346b96d94c3ca933471ebc023bef4841375b985447d29f57b Filename:Intel HID Event Filter(v2.2.1.386).zip Release Note	OS	Win 11 x 64	Date	2023-07-20	Download	Global China
Description	Realtek high definition audio driver ver:9239_FF00	Information	Size: 317Mib Version:9239_FF00 SHA256: 719d41152289edb9a9511f0e84202a4e55aec8cf389fd75e316db86775347998 Filename:Audio(v9239_FF00).zip Release Note	OS	Win 11 x 64	Date	2023-07-20	Download	Global China
Description	Intel Lan driver ver:1.1.3.34	Information	Size: 1535Kib Version:1.1.3.34 SHA256: 865445186d25783300b8a1baca3fcd88d267856cf0611f499a81ff8f966e3db1 Filename:Intel_LAN(v1.1.3.34).zip Release Note	OS	Win 11 x 64	Date	2023-08-23	Download	Global China
Description	Intel Rapid Storage Technology driver and utility ver:19.0.0.1067.2	Information	Size: 77 KiB Version: v19.0.0.1067.2 SHA256: b31959e3e2a02f33c4ecfea0adb462b6b6365cd1e969fc5c8c710186bb4f86e4 Filename: RapidStorage(v19.0.0.1067.2).zip Release Note	OS	Win 11 x 64	Date	2023-07-20	Download	Global China
Description	Intel HID Event Filter ver:2.2.1.386	Information	Size: 1258Kib Version: 2.2.1.386 SHA256: 9622c3022006f7f346b96d94c3ca933471ebc023bef4841375b985447d29f57b Filename:Intel HID Event Filter(v2.2.1.386).zip Release Note	OS	Win 10 x 64	Date	2022-03-09	Download	Global China
Description	Intel Rapid Storage Technology driver and utility ver:19.0.0.1067.2	Information	Size: 77 KiB Version: v19.0.0.1067.2 SHA256: b31959e3e2a02f33c4ecfea0adb462b6b6365cd1e969fc5c8c710186bb4f86e4 Filename: RapidStorage(v19.0.0.1067.2).zip Release Note	OS	Win 10 x 64	Date	2022-03-09	Download	Global China
Description	Intel Lan driver ver1.1.3.34	Information	Size: 1535Kib Version:1.1.3.34 SHA256: 865445186d25783300b8a1baca3fcd88d267856cf0611f499a81ff8f966e3db1 Filename:Intel_LAN(v1.1.3.34).zip Release Note	OS	Win 10 x 64	Date	2023-08-23	Download	Global China
Description	Realtek high definition audio driver ver:9239_FF00	Information	Size: 317Mib Version:9239_FF00 SHA256: 719d41152289edb9a9511f0e84202a4e55aec8cf389fd75e316db86775347998 Filename:Audio(v9239_FF00).zip Release Note	OS	Win 10 x 64	Date	2022-03-08	Download	Global China

Version	Update BIOS Under / How to Update	Description	Information	Date	Download
Version	2.70	Update BIOS Under / How to Update	BIOS	Description	1. Support Intel Bartlett Lake P-core only processor 2. Enhance platform security with Control IOMMU Pre-boot Behavior, VT-d, and the IOMMU option 3. Update Secure Boot Key (2023 KEK/DB/PK)	Information	Size: 10121 KiB SHA1: ef307f0a32d8ce1cec75a05e97ad9d0c85145a18	Date	2026-03-19	Download	Global China
Version	2.70	Update BIOS Under / How to Update	Windows	Description	1. Support Intel Bartlett Lake P-core only processor 2. Enhance platform security with Control IOMMU Pre-boot Behavior, VT-d, and the IOMMU option 3. Update Secure Boot Key (2023 KEK/DB/PK)	Information	Size: 10 MiB SHA1: d67764f3336b65403d0b5c2f47662caf2fd77def	Date	2026-03-19	Download	Global China
Version	2.60	Update BIOS Under / How to Update	BIOS	Description	1. Support Intel Bartlett Lake processor 2. Update Intel ME version 3. Update Intel microcode	Information	Size: 10 MiB SHA1: 9DB0834B88BF2ADF837508FEFED06A4B0200B14E	Date	2025-07-10	Download	Global China
Version	2.60	Update BIOS Under / How to Update	Windows	Description	1. Support Intel Bartlett Lake processor 2. Update Intel ME version 3. Update Intel microcode	Information	Size: 10 MiB SHA1: 514D47DD608C7A1C68689C3CDCCD7DC8931B5055	Date	2025-07-10	Download	Global China
Version	2.40	Update BIOS Under / How to Update	BIOS	Description	Update Intel microcode to 0x12B	Information	Size: 10 MiB SHA1: 6165AF61D66F9C750DF86771AA533D73EE93BEB3	Date	2024-11-22	Download	Global China
Version	2.40	Update BIOS Under / How to Update	Windows	Description	Update Intel microcode to 0x12B	Information	Size: 11 MiB SHA1: 1AECD7ABB9A3198AAAAE6C2779A18271076CD3E0	Date	2024-11-22	Download	Global China
Version	2.20	Update BIOS Under / How to Update	BIOS	Description	Update Intel microcode	Information	Size: 10 MiB SHA1: 78C2F3F2CDE73BE079EE29757762B9FFBCC54F89	Date	2024-06-11	Download	Global China
Version	2.20	Update BIOS Under / How to Update	Windows	Description	Update Intel microcode	Information	Size: 11 MiB SHA1: E8631DB53D96B4AA95755C3CCEB346FAE96CAC29	Date	2024-06-11	Download	Global China
Version	2.10	Update BIOS Under / How to Update	BIOS	Description	Support Intel 14th Generation Processors	Information	Size: 10 MiB SHA1: 55EFA8950BCF6F8419D4602DF1D2A37AB71C6B24	Date	2023-11-02	Download	Global China
Version	2.10	Update BIOS Under / How to Update	Windows	Description	Support Intel 14th Generation Processors	Information	Size: 11 MiB SHA1: 505A3DEE63744982BD2AB69DAD8F3C21937E31AB	Date	2023-11-02	Download	Global China
Version	2.00	Update BIOS Under / How to Update	BIOS	Description	Improve PCIE compatibility	Information	Size: 10 MiB SHA1: 2D8DF3883CBCBE766CF6A289B69D452DA7F4A384	Date	2023-09-08	Download	Global China
Version	2.00	Update BIOS Under / How to Update	Windows	Description	Improve PCIE compatibility	Information	Size: 11 MiB SHA1: 38B7582C87263AD5AD719860E9766AD2DA20D0BB	Date	2023-09-08	Download	Global China
Version	1.80	Update BIOS Under / How to Update	BIOS	Description	1. Update VMD driver 2. Update LAN driver 3. Enhance system compatibility	Information	Size: 10 MiB SHA256: 8f48a78707a6aeeadc06b20b2fb303a8005b6c0e477f3fc3237416096796137b	Date	2023-04-27	Download	Global China
Version	1.80	Update BIOS Under / How to Update	Windows	Description	1. Update VMD driver 2. Update LAN driver 3. Enhance system compatibility	Information	Size: 11 MiB SHA256: ad645a8161550316ba8d87b8d5d26d3bbf21e047a05076e2212fc3a0ccebf4d0	Date	2023-04-27	Download	Global China
Version	1.60	Update BIOS Under / How to Update	BIOS	Description	Support Intel 13th Generation Processors	Information		Date	2023-01-10	Download	Global China
Version	1.60	Update BIOS Under / How to Update	Windows	Description	Support Intel 13th Generation Processors	Information		Date	2023-01-10	Download	Global China
Version	1.50	Update BIOS Under / How to Update	BIOS	Description	Enhance PCIe device compatibility	Information		Date	2022-08-04	Download	Global China
Version	1.50	Update BIOS Under / How to Update	Windows	Description	Enhance PCIe device compatibility	Information		Date	2022-08-04	Download	Global China
Version	1.30	Update BIOS Under / How to Update	BIOS	Description	1. Enhance system compatibility 2. Update MCU Fan settings 3. Optimize thermal design power settings	Information		Date	2022-06-30	Download	Global China
Version	1.30	Update BIOS Under / How to Update	Windows	Description	1. Enhance system compatibility 2. Update MCU Fan settings 3. Optimize thermal design power settings	Information		Date	2022-06-30	Download	Global China
Version	1.20	Update BIOS Under / How to Update	BIOS	Description	Enhance system compatibility	Information		Date	2022-06-14	Download	Global China
Version	1.20	Update BIOS Under / How to Update	Windows	Description	Enhance system compatibility	Information		Date	2022-06-14	Download	Global China
Version	1.10	Update BIOS Under / How to Update	BIOS	Description	First release	Information		Date	2022-06-01	Download	Global China
Version	1.10	Update BIOS Under / How to Update	Windows	Description	First release	Information		Date	2022-06-01	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	RAID Installation Guide	Language	English	Date	2023-01-17	Download	Global China
Description	User Manual	Language	English	Date	2022-06-17	Download	Global China
Description	Jumpers and Headers Setting Guide	Language	English	Date	2022-03-15	Download	Global China

Description	Date	Download
Download	CPU Support List	Date	2022-07-11	Download	Global
