EOL

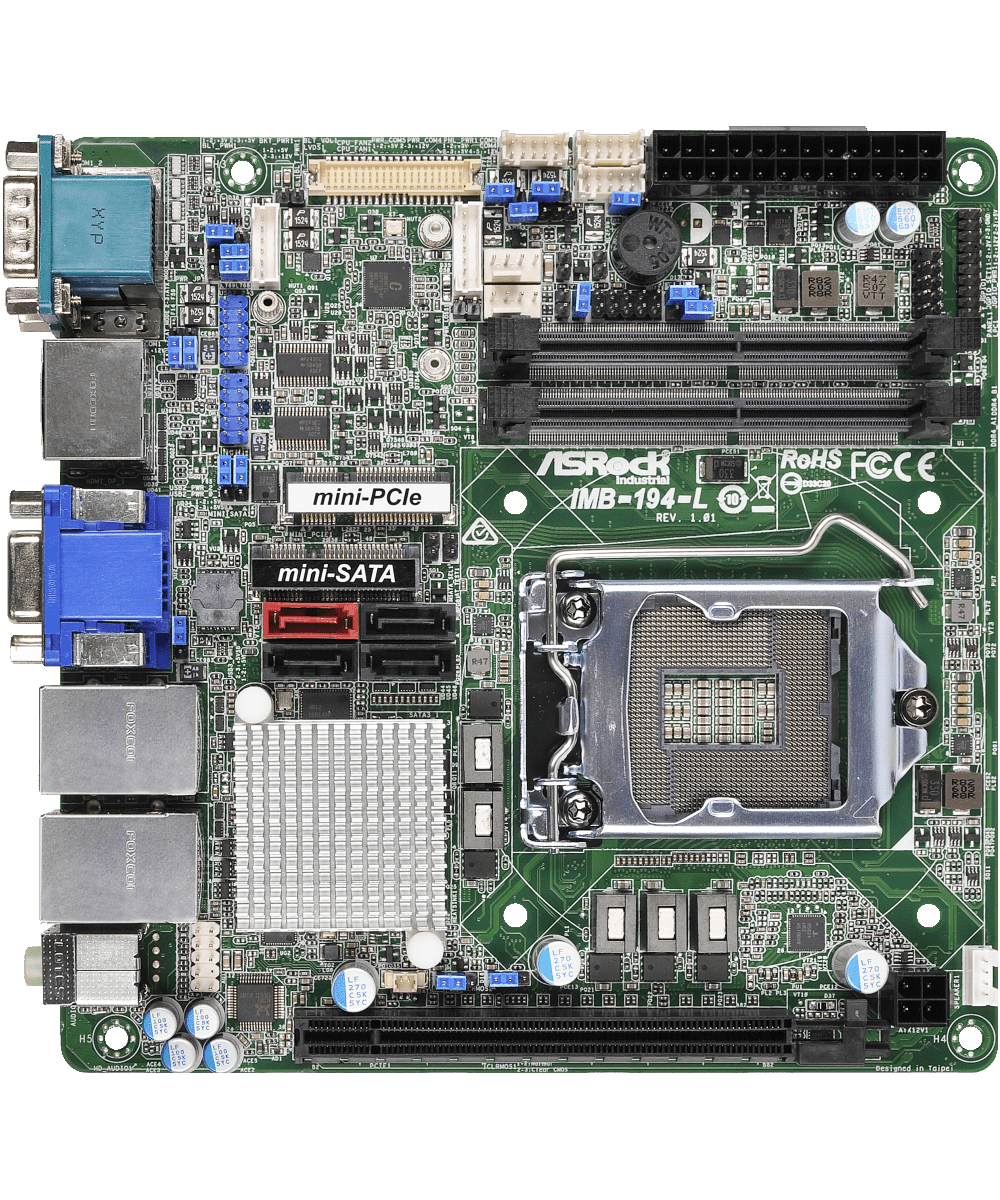

IMB-194-L Mini-ITX Motherboard
- Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors with Q170 chipset
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 1 x PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 5 x COM, 4 x SATA3
- 2 x Intel Gigabit LAN
- Supports triple display, 1 x HDMI 1.4b, 1 x DP 1.2a, 1 x VGA, 1 x LVDS
- TPM 2.0 onboard IC
- Supports Intel® vPro, AMT, RAID 0/1/5/10
- ATX PWR
Specification
Processor System
| CPU | Intel® 7th/ 6th Gen (Kabylake-S / Skylake-S) Core™ Processors |
|---|---|
| Chipset | Intel® Q170 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 11 / 12 |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096 x 2160@24Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096 x 2304@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen3) |
|---|---|
| mini-PCIe | 1 x Full / Half size with PCIe x1 and USB 2.0 |
Audio
| Interface | Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000Mbps, support AMT / vPro |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 1 x HDMI 1.4b |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | COM1, 2 (RS-232/422/485) |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM3,4,5 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| Speaker Header | 1 |
Storage
| mSATA | 1 x Full size with shared SATA3 and USB 2.0 |
|---|---|
| SATA | 4 x SATA3 (6Gb/s), SATA3_1 is shared with mSATA |
| RAID | Supports Intel® vPro, AMT, RAID 0/1/5/10 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+4-pin) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020335000AK) 1 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020335000AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
