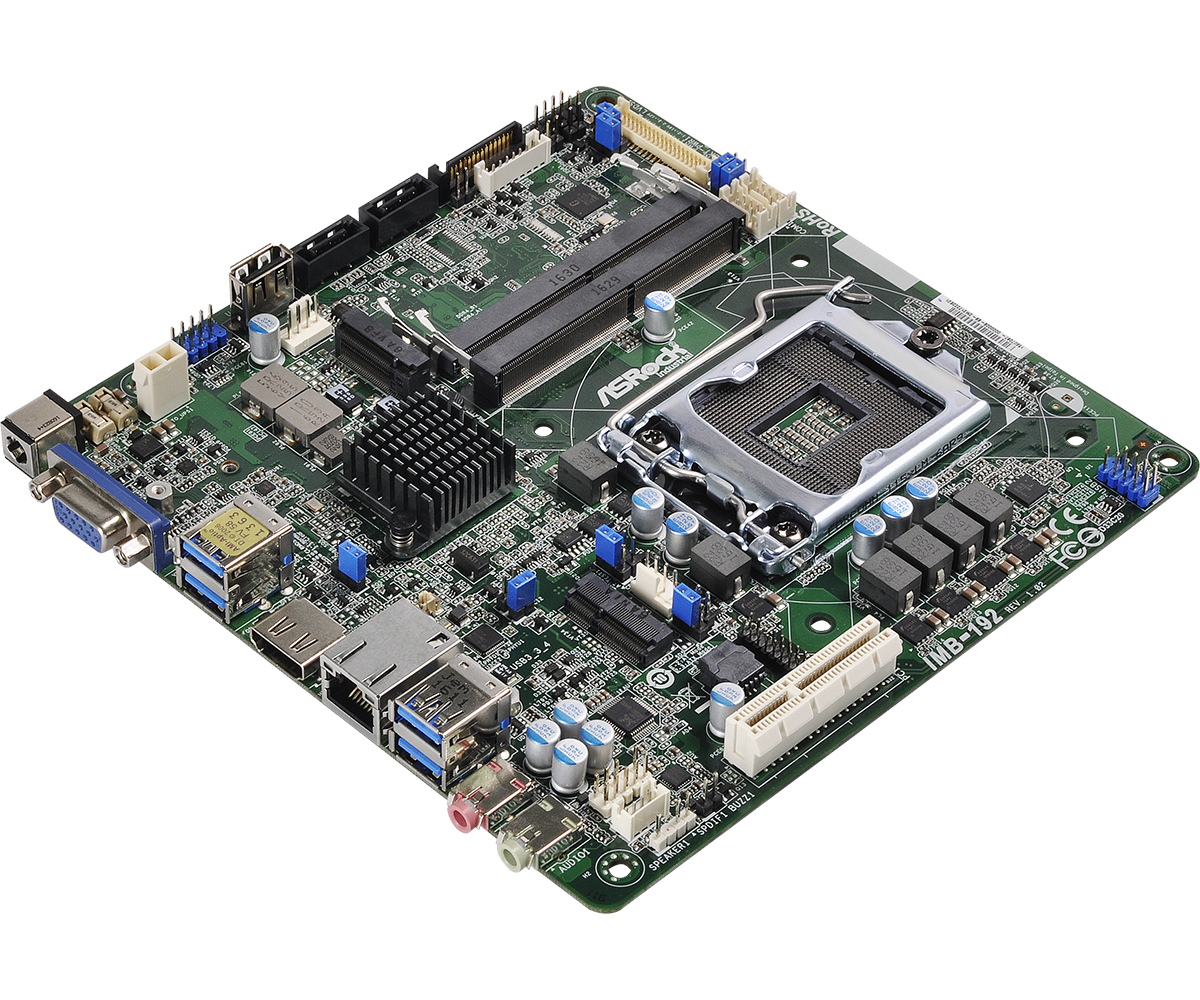

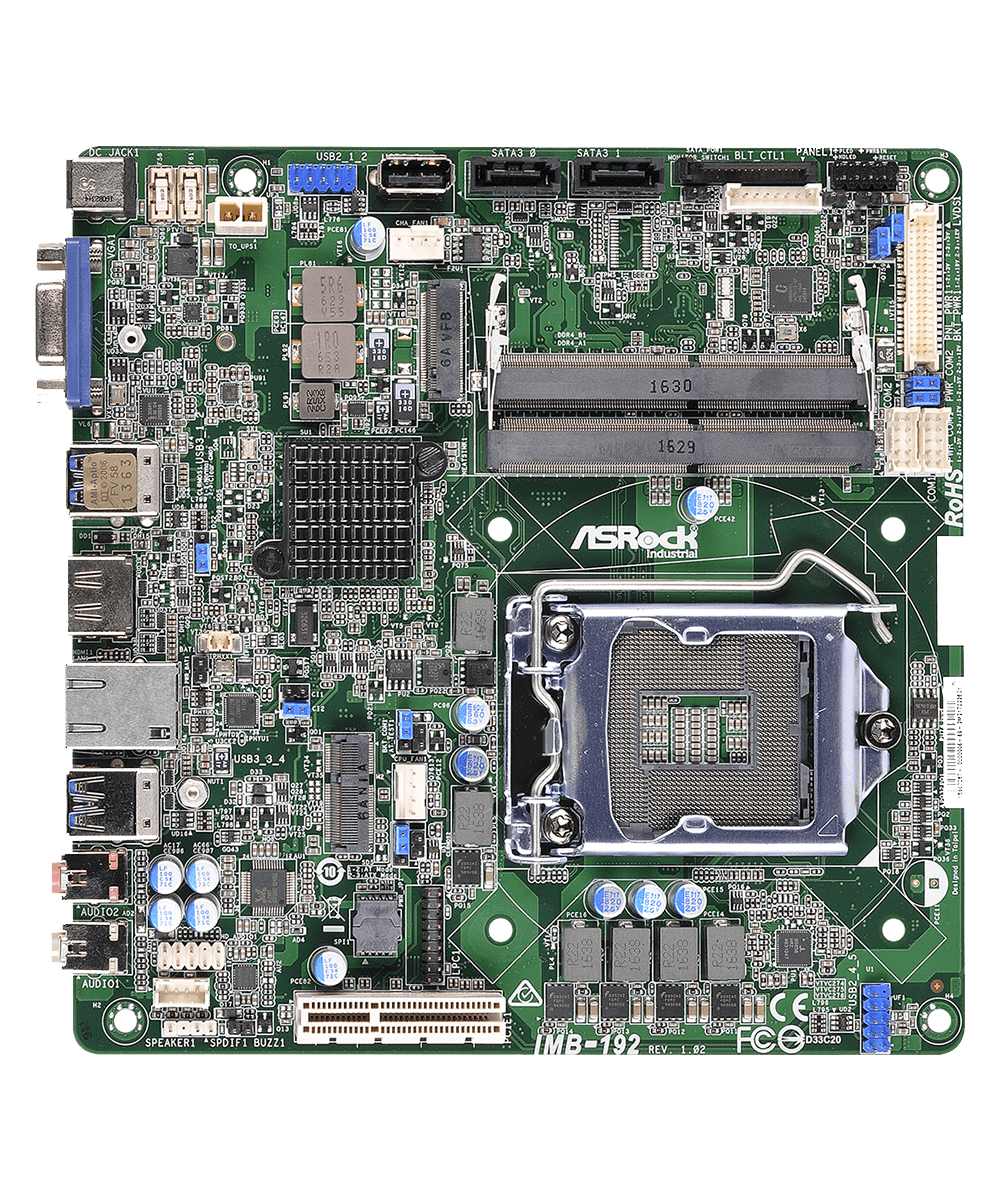

IMB-192 Mini-ITX Motherboard
- Intel® 7th/ 6th Gen (Kabylake-S / Skylake-S) Core™ Processors with H110 chipset
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 1 x PCIe x4 (Gen2), 4 x USB 3.1 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3
- 1 x Intel Gigabit LAN
- Supports dual display, 1 x HDMI 2.0, 1 x VGA, 1 x LVDS
- TPM Header
- 19V DC-In
Specification
Processor System
| CPU | Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors |
|---|---|
| Chipset | Intel® H110 |
| Socket | LGA1151 |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4 |
|---|---|
| HDMI | Supports max resolution up to 4K x 2K (4096 x 2160) @ 24Hz / (3840 x 2160) @ 30Hz |
| VGA | Supports max resolution up to 1920 x 1200 @ 60Hz |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| eDP | Supports max resolution up to 4096 x 2160 @60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x4 |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD |
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps |
|---|---|
| Connector | 1 x RJ-45 |

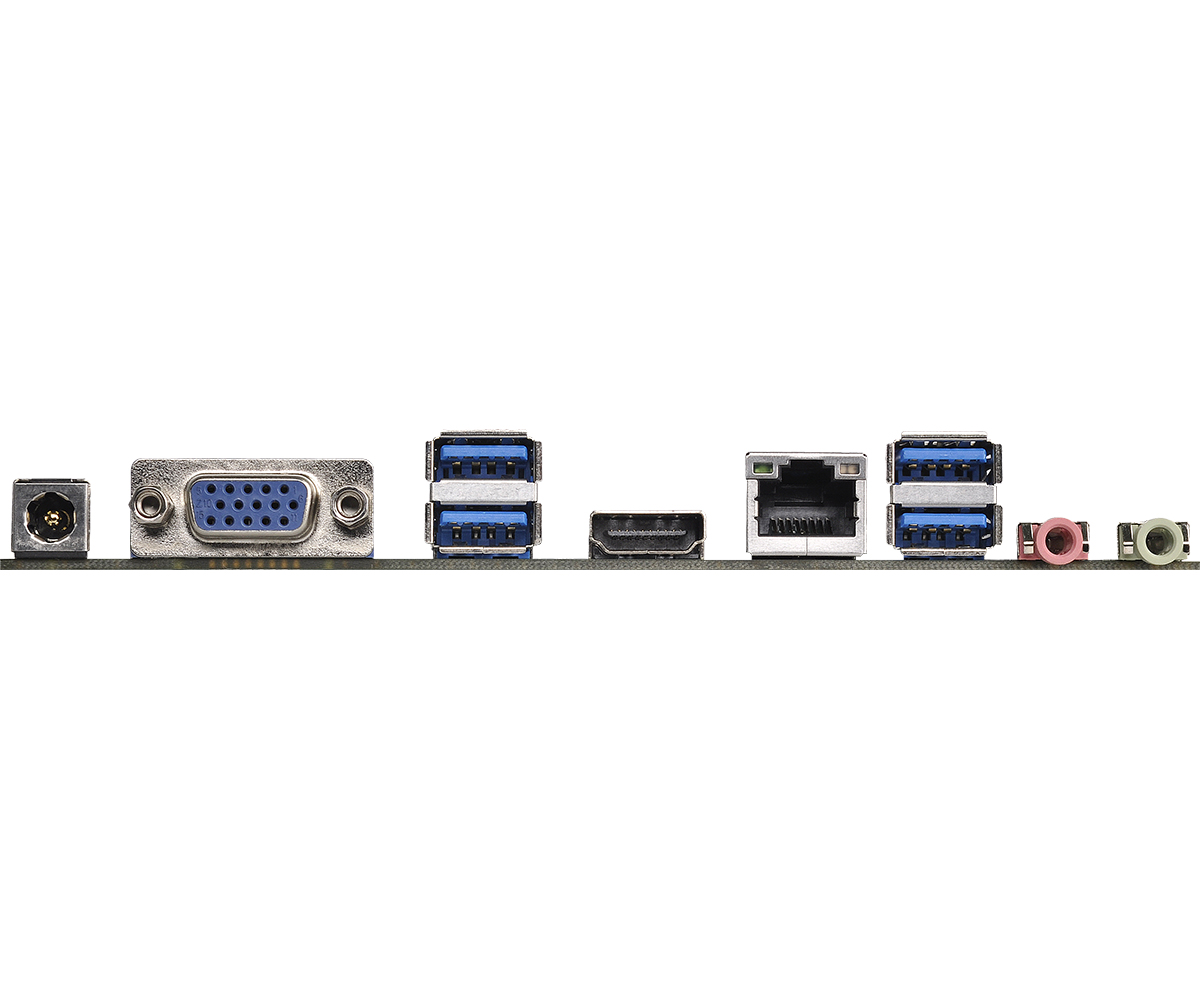

Rear I/O
| HDMI | 1 |
|---|---|
| Ethernet | 1 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| VGA | 1 |
| DC Jack | 1 |
Internal Connector
| USB | 5 x USB 2.0 (2 x Header, 1 x Type A) |
|---|---|
| COM | 2 x COM (RS-232) |
| TPM | TPM Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA3 (6.0Gb/s) |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 19V phone jack DC-In |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313010AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313010AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
