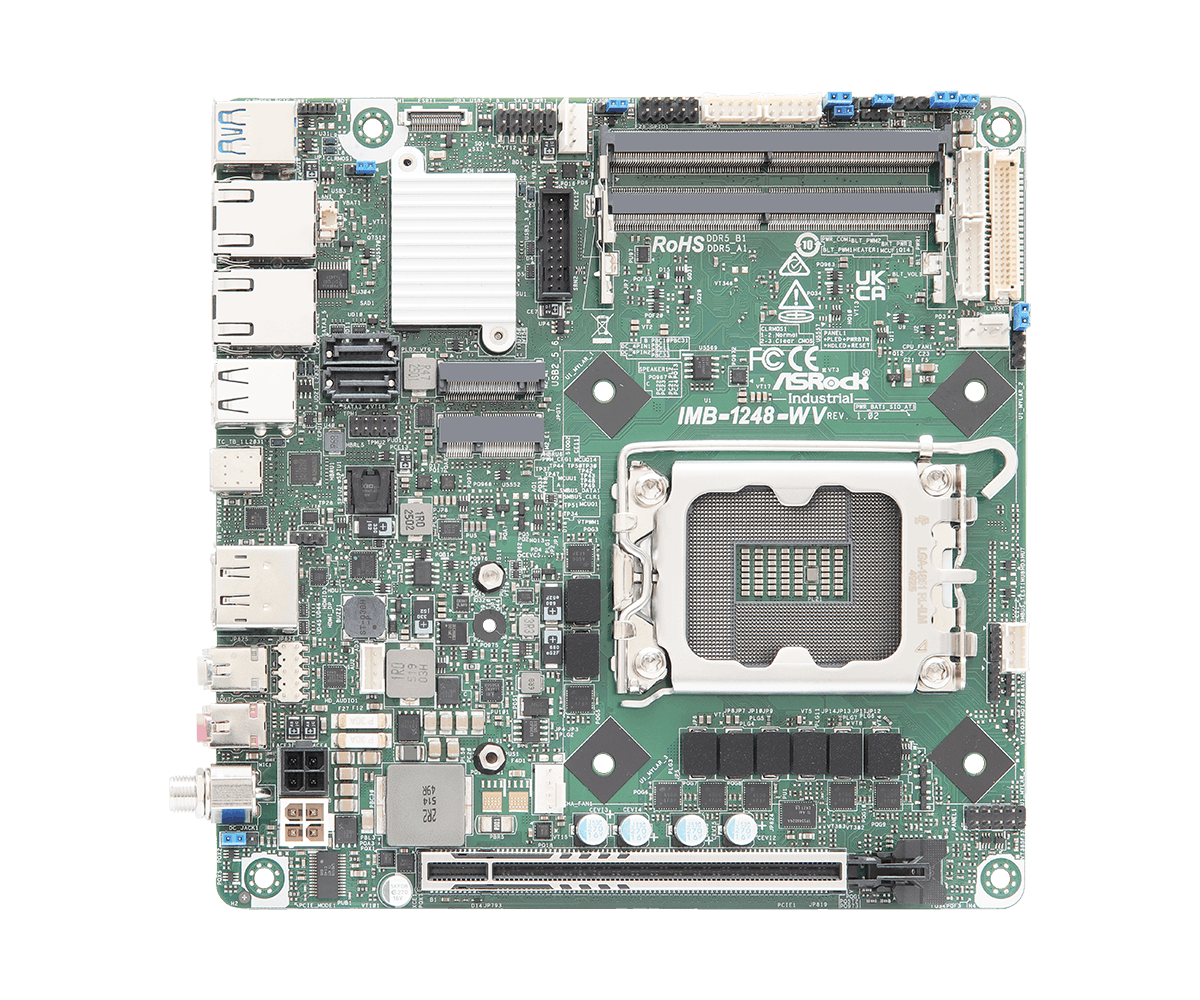

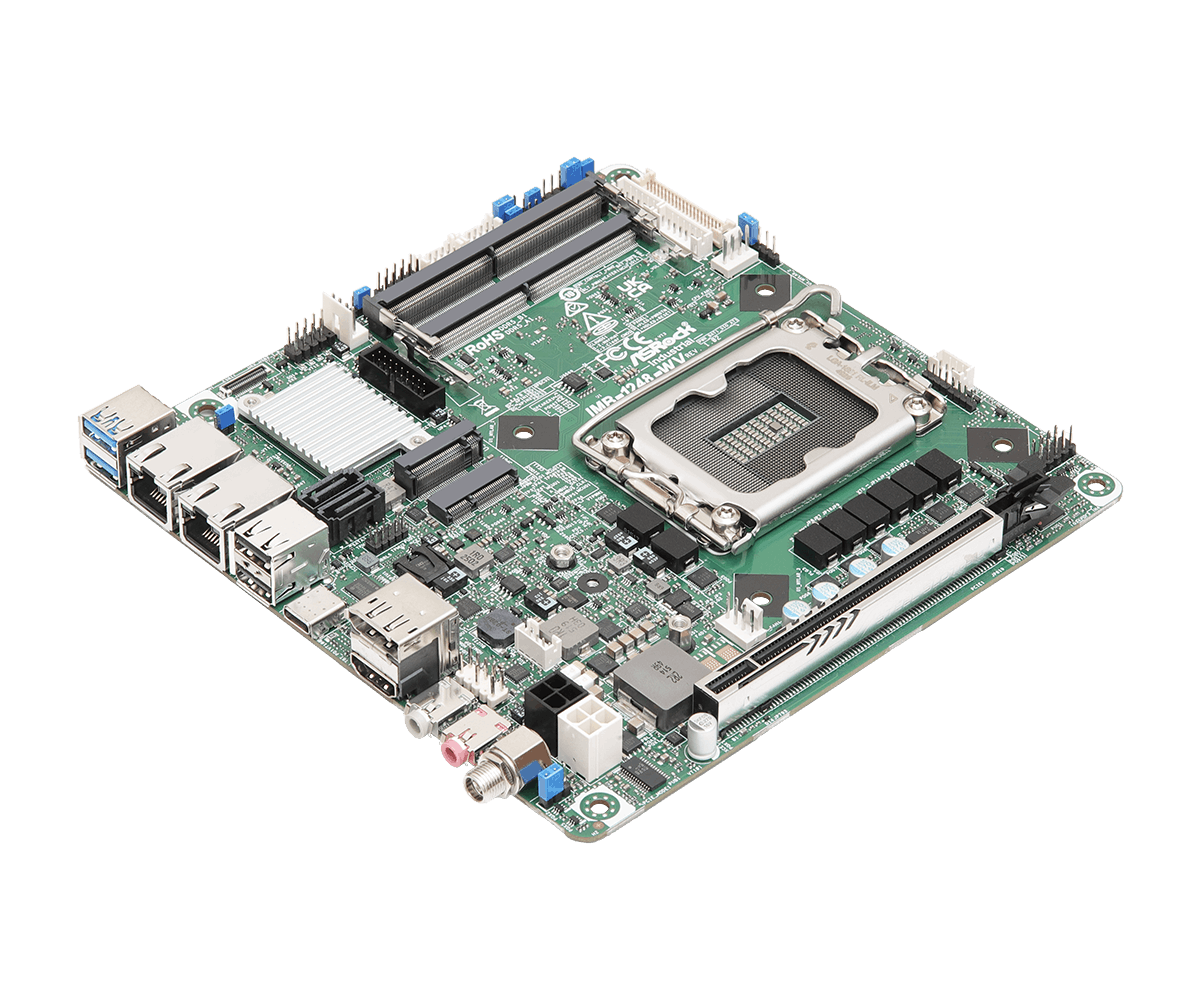

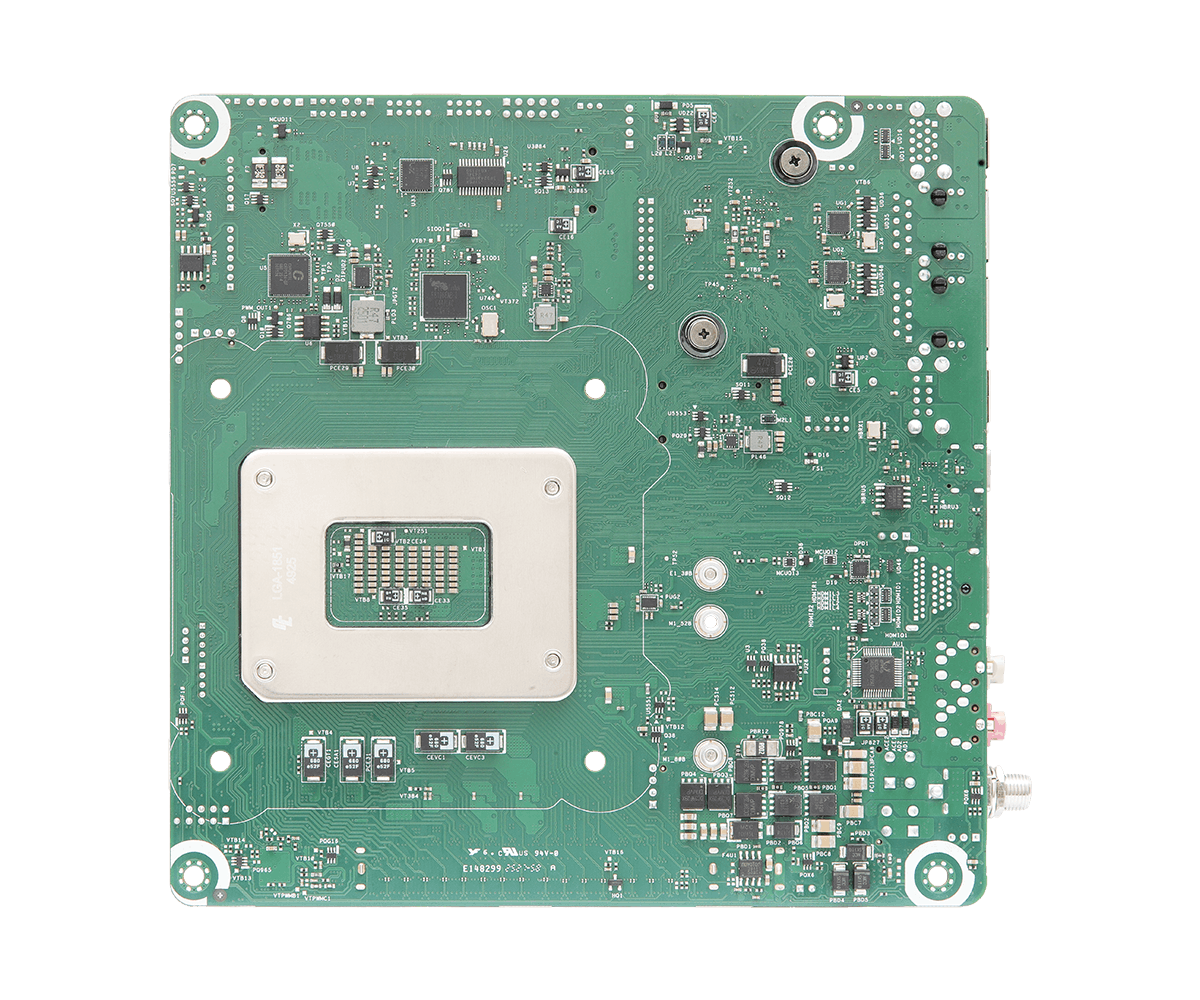

IMB-1248-WV Mini-ITX Motherboard
- Intel® Core™ Ultra Series 2 Processors (Arrow Lake-S) with H810 chipset
- 2 x 262-pin CSO-DIMM DDR5 6400 MHz, SO-DIMM DDR5 5600 MHz, up to 128GB (64GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x USB4/Thunderbolt™4, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.1, 1 x DP 2.1 (1 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
- 12~28V DC-In (Lockable DC Jack)/ 12V DC-In only (BOM option)
Specification
Processor System
| CPU | Intel® Core™ Ultra Series 2 Processors (Arrow Lake-S), up to 65W *The Performance of CPUs over 65W will be limited due to power design |
|---|---|
| Chipset | Intel® H810 |
| Socket | LGA1851 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.03-in, 17.0 cm x 17.0 cm x 2.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 5600/6400 MHz *Only CSO-DIMM can support up to 6400 MHz |
|---|---|
| Capacity | 128GB (64GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Xe LPG Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 7680x4320@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display (Included 1 output from Type-C) |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

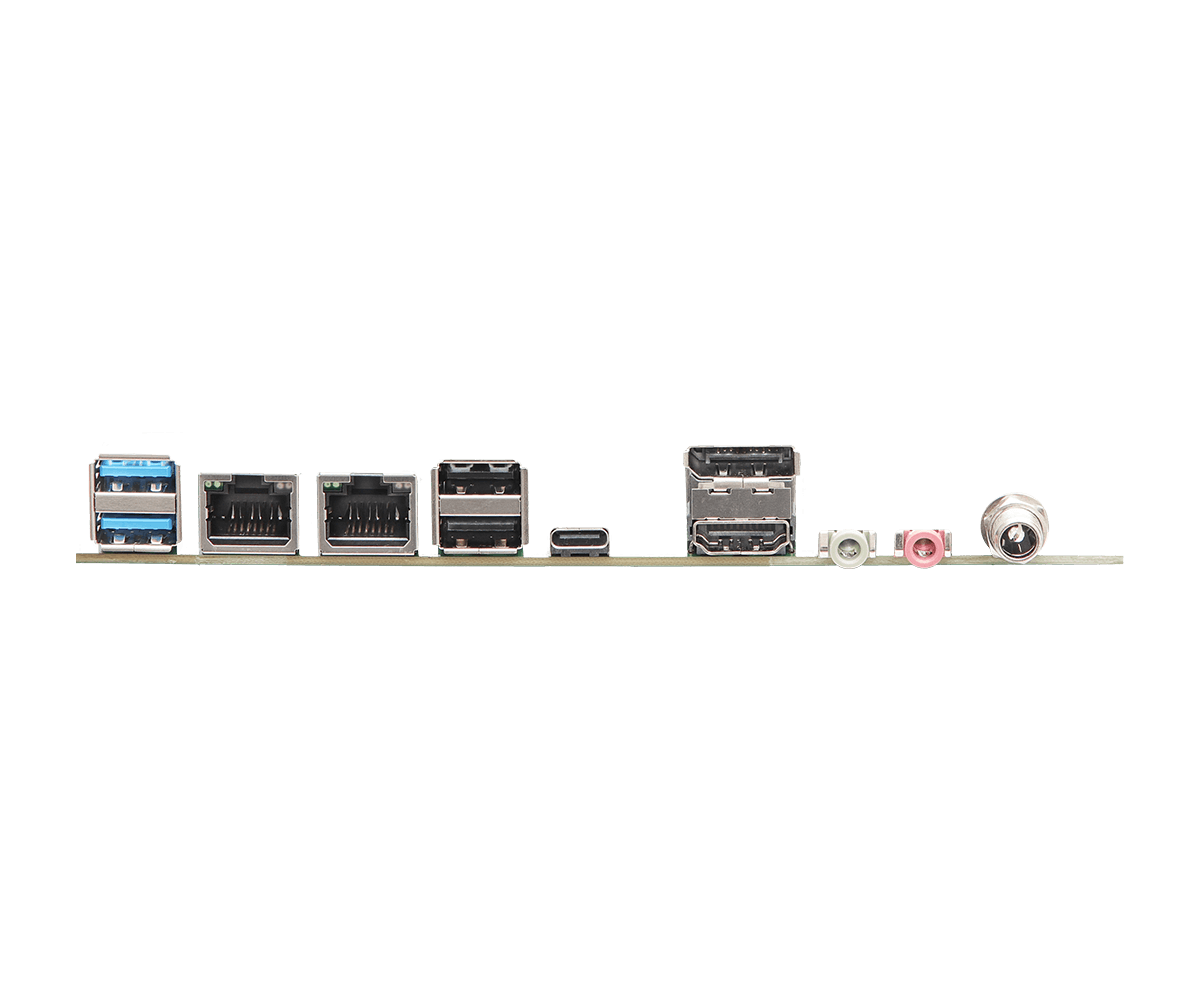

Rear I/O
| HDMI | 1 x HDMI 2.1 |
|---|---|
| DisplayPort | 1 x DP 1.4a++ |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 2.0 2 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list. |
| Audio | 2 (Line-out, Mic-in or Line-out, Line-in (BOM option)) |
| DC Jack | 1 DC-in |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 wafer) 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | COM1 (RS-232/422/485) COM3 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM Header Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280/3052) with PCIe Gen4 x4 for SSD |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type) 12V DC-In only (BOM option) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
Accessories
| Gift Package | 1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK) 1 x 3.35mm M3 NUT (13G02P059010AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK) 1 x 3.35mm M3 NUT (13G02P059010AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | INF driver ver:10.1.19913.8607-Public-Client | Information | Size: 7218 KiB |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-21 | Download | |
| Description | VGA driver ver: 32.0.101.5869 | Information | Size: 1053 MiB |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-21 | Download | |
| Description | Intel Thunderbolt driver ver:92 | Information | Size: 245 MiB |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-21 | Download | |
| Description | Intel Management Engine driver ver:2435.6.36.0_CONS | Information | Size: 871 MiB |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-21 | Download | |
| Description | NPU driver ver: 32.0.100.2540 | Information | Size: 242Mib |
OS | Win 11 x 64 | Date | 2025-02-20 | Download | |
| Description | SST driver ver:20.40.11112.16 | Information | **Install after VGA driver Size: 236 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | PMT ver: 3.1.2.6c | Information | Size: 2394Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | COM Port driver ver:220211 | Information | Size: 3101Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | Intel Serial IO driver ver:30.100.2419.23 | Information | Size: 1877Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | GNA ver: 3.5.0.1578 | Information | Size: 1235 KiB |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | Intel HID Event Filter ver: 2.2.2.6 | Information | Size: 1173 Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download | |
| Description | Realtek Lan driver ver: 10.060.0615.2022 | Information | Size: 10Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2025-02-20 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.00 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size: 8846 KiB SHA1: EABC1378ABD7088847959AD4AF78DD71F4F16EA7 |
Date | 2026-02-05 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size: 9637 KiB SHA1: FAF695A12BFEE0FB73F2628AC366F9638F56C128 |
Date | 2026-02-05 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2026-03-09 | Download | |
| Description | Jumpers and headers setting guide | Language | English | Date | 2025-02-12 | Download |
